REMEHA-COMMERCIAL

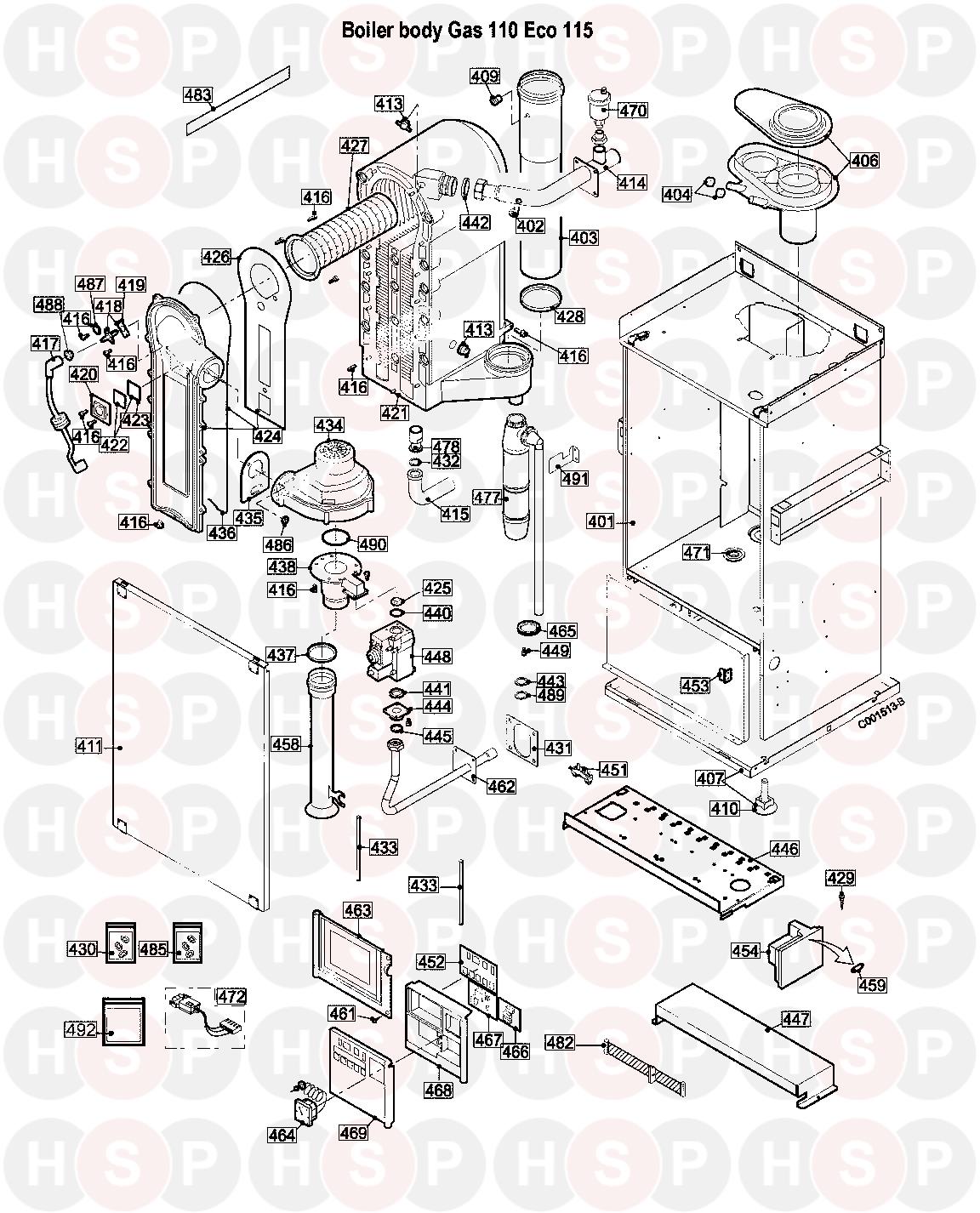

GAS 110 ECO 115 - (Exploded View)

Appliance Diagram


Exploded View diagram for Remeha-Commercial Gas 110 Eco 115Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

402 Part number S46850, Non Return Valve (For Capillary Connection) Q45/65 NON RETURN VALVE (FOR CAPILLARY CONNECTION) Q45/65
Remeha-Commercial part no. S46850
£38.75
403 Part number S55994, (Use 7631936) - Flue gas pipe dia100 Q65/85/115 (USE 7631936) - FLUE GAS PIPE DIA100 Q65/85/115
Remeha-Broag part no. S55994

404 Part number S57163, Cap for connection piece chimney (Pk2) CAP FOR CONNECTION PIECE CHIMNEY (PK2)
Remeha-Commercial part no. S57163
£17.50
406   FLUE CONNECTION 150MM +Ÿ
Remeha-Commercial part no. S54781
£55.00
409 Part number S62288, Sampling Point Bung Quinta/310 Pro (For 210 PRO use S100850) SAMPLING POINT BUNG QUINTA/310 PRO (FOR 210 PRO USE S100850)
Remeha-Commercial part no. S62288
£6.05
413 Part number S44698, Temperature Sensor (flow And return) Elmwood NTC 12K/007 TEMPERATURE SENSOR (FLOW AND RETURN) ELMWOOD NTC 12K/007
Remeha-Commercial part no. S44698
£32.50
414   FLOW PIPE GAS 110
Remeha-Commercial part no. 300013081
£317.50
415   GAS 110 RETURN PIPE (HEATING)
Remeha-Commercial part no. 300012503
£37.50
416   SCREW BAG
Remeha-Commercial part no. 200002325
£55.00
417 Part number S55924, Cable ignition c/w cap (Quinta 45/65/85 & 115) CABLE IGNITION C/W CAP (QUINTA 45/65/85 & 115)
Remeha-Commercial part no. S55924
£53.75
418 Part number S54339, Quinta Eco Electrode Ignition/ionisation MX REBA inc gasket and 2 screws L=58 QUINTA ECO ELECTRODE IGNITION/IONISATION MX REBA INC GASKET AND 2 SCREWS L=58
Remeha-Commercial part no. S54339
£33.75
419 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489
£23.75
420 Part number S54822, Mounting Frame (For Inspection Glass) MOUNTING FRAME (FOR INSPECTION GLASS)
Remeha-Commercial part no. S54822
£11.39
421 Part number S100196, (USE S101550) Heat Exchanger Quinta 85 & 115 (USE S101550) (USE S101550) HEAT EXCHANGER QUINTA 85 & 115 (USE S101550)
Remeha-Broag part no. S100196

422 Part number S45004, Glass inspection c/w gasket 32x32x3mm and screws GLASS INSPECTION C/W GASKET 32X32X3MM AND SCREWS
Remeha-Commercial part no. S45004
£41.25
423 Part number S35458, Gasket for inspection glass (5 pcs) GASKET FOR INSPECTION GLASS (5 PCS)
Remeha-Commercial part no. S35458
£9.95
424 Part number S53477, Heat exchanger front plate (c/w Seal & Insulation) Quinta Eco 45-115 HEAT EXCHANGER FRONT PLATE (C/W SEAL & INSULATION) QUINTA ECO 45-115
Remeha-Commercial part no. S53477
£271.25
425   Q115 VENTURI RESTRICTOR (H D 8.6)
Remeha-Commercial part no. S100082
£40.00
426 Part number S54731, Insulation front plate heat exchanger INSULATION FRONT PLATE HEAT EXCHANGER
Remeha-Commercial part no. S54731
£65.00
427 Part number S57477, Burner Furigas Q85/115 c/w gasket BURNER FURIGAS Q85/115 C/W GASKET
Remeha-Commercial part no. S57477
£636.25
428 Part number S55915, Quinta Internal Flue Sealing Ring 100mm (5pcs) QUINTA INTERNAL FLUE SEALING RING 100MM (5PCS)
Remeha-Commercial part no. S55915
£30.00
429   SPECIAL SCREW FOR FRONT CASING (M4 X 16) PACK OF 20
Remeha-Commercial part no. S100053
£12.50
430   INSPECTION COVER INSULATION
Remeha-Commercial part no. S100066
£110.00
432   GASKET
Remeha-Commercial part no. 97550181
£2.16
433 Part number 54798, Hinge pin (instrument door) HINGE PIN (INSTRUMENT DOOR)
Remeha-Broag part no. 54798
£4.56
434 Part number S100036, Fan - Quinta, Quinta Pro, & Gas 110 115kW FAN - QUINTA, QUINTA PRO, & GAS 110 115KW
Remeha-Commercial part no. S100036
£440.00
435 Part number S56151, Gasket for fan to venturi GASKET FOR FAN TO VENTURI
Remeha-Commercial part no. S56151
£7.20
436 Part number S57241, Gasket front plate Quinta 45/65/85/115 (Red Seal) GASKET FRONT PLATE QUINTA 45/65/85/115 (RED SEAL)
Remeha-Commercial part no. S57241
£17.50
438 Part number S100037, Venturi Quinta 115 VENTURI QUINTA 115
Remeha-Commercial part no. S100037
£258.75
440 Part number S100059, Seal O-ring 23.47x2.62 (5 pcs) SEAL O-RING 23.47X2.62 (5 PCS)
Remeha-Commercial part no. S100059
£41.25
441 Part number S100363, Seal O-ring 33x2 (10 pcs) SEAL O-RING 33X2 (10 PCS)
Remeha-Commercial part no. S100363
£22.50
442   FLOW GASKET
Remeha-Commercial part no. 95013074
£4.19
444   GAS VALVE FLANGE
Remeha-Commercial part no. S100364
£115.00
445   SEAL 27X16X3
Remeha-Commercial part no. 97550196
£3.90

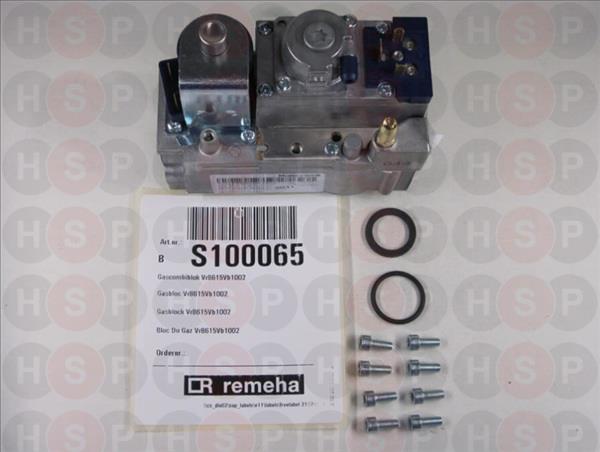

448 Part number S100065, Valve Gasblock VR8615VB1002 (Q115 Eco / Gas 110 (115kW)) VALVE GASBLOCK VR8615VB1002 (Q115 ECO / GAS 110 (115KW))
Remeha-Commercial part no. S100065
£263.75
449 Part number S62185, Screw Kb30X8 (10 Pcs) SCREW KB30X8 (10 PCS)
Remeha-Commercial part no. S62185
£15.00
453   SAFETY CONTROL BOX ATTACHMENT
Remeha-Commercial part no. S54794
£17.50
458   Q115 AIR INTAKE PIPE
Remeha-Commercial part no. s100045
£106.25
459 Part number S14510, FUSE 4 AMP SLOW ACTING QUINTA /210 (Pack of 10) (Sold singularly as 14510) FUSE 4 AMP SLOW ACTING QUINTA /210 (PACK OF 10) (SOLD SINGULARLY AS 14510)
Remeha-Commercial part no. S14510
£22.50
459 Part number S43563, Fuses glass 2 Amp fast Pack of 10 FUSES GLASS 2 AMP FAST PACK OF 10
Remeha-Commercial part no. S43563
£18.75
459 Part number S6778, Fuse Glass 6.3A Slow (pkt of 10) FUSE GLASS 6.3A SLOW (PKT OF 10)
Remeha-Commercial part no. S6778
£31.25
462   GAS INLET PIPE GAS 110-115KW
Remeha-Commercial part no. 300013080
£137.50
463   PANEL TEM
Remeha-Broag part no. 56087
£14.48
463   COVER FOR WEATHER COMPENSATOR.
Remeha-Broag part no. 59443
£1.37
464   GAS 110 SQUARE PRESSURE GAUGE
Remeha-Commercial part no. 300013121
£32.50
465 Part number S57470, Sealing Plate (Syphon Black Foam) 5 Pcs SEALING PLATE (SYPHON BLACK FOAM) 5 PCS
Remeha-Commercial part no. S57470
£23.75
466 Part number S63316, Print Am3-2 (3 relais) PRINT AM3-2 (3 RELAIS)
Remeha-Commercial part no. S63316
£93.75
467 Part number S55443, PCB interface 0-10v AM4K PCB INTERFACE 0-10V AM4K
Remeha-Commercial part no. S55443
£140.00
468   DOOR R/H
Remeha-Commercial part no. S54800
£18.75
469 Part number 56940, (USE S56940)Door display (USE S56940)DOOR DISPLAY
Remeha-Broag part no. 56940

470 Part number 85000023, (Use 94918138) Gas 110 Auto Air Vent (USE 94918138) GAS 110 AUTO AIR VENT
Remeha-Broag part no. 85000023

470 Part number 94918138, Gas 110 Auto Air Vent GAS 110 AUTO AIR VENT
Remeha-Commercial part no. 94918138
£70.00
471   GAS 110 GROMMET
Remeha-Commercial part no. 97939290
£8.50
472   GAS 110 - CABLE FOR GAS VALVE
Remeha-Commercial part no. 200010257
£27.50
477 Part number S100041, Syphon Assembly Q115 SYPHON ASSEMBLY Q115
Remeha-Commercial part no. S100041
£107.50
482   CABLE FLAT LENGTH 1650MM, GAS 110
Remeha-Commercial part no. 300013129
£16.25
483 Part number 58286, OBSOLETE Cleaning tool for heat exchanger (All models Quinta, Selecta & Gas210) OBSOLETE CLEANING TOOL FOR HEAT EXCHANGER (ALL MODELS QUINTA, SELECTA & GAS210)
Remeha-Broag part no. 58286

487 Part number S21473, Washer Spring Ring A4,3 (10 Pcs.) WASHER SPRING RING A4,3 (10 PCS.)
Remeha-Commercial part no. S21473
£7.20
488 Part number S55409, GROMMET FOR IGNITION ELECTRODE GROMMET FOR IGNITION ELECTRODE
Remeha-Broag part no. S55409
£9.22
489 Part number S51103, Sealing Ring 44 x 32 x 4 Pack of 5 SEALING RING 44 X 32 X 4 PACK OF 5
Remeha-Commercial part no. S51103
£5.05
490 Part number S100058, Seal O-ring 70x3 (5 pcs) SEAL O-RING 70X3 (5 PCS)
Remeha-Commercial part no. S100058
£57.50
