REMEHA-COMMERCIAL
GAS 310/ 610 EC0 - (Casing)
Appliance Code: 310 /610 ECO

Appliance Diagram

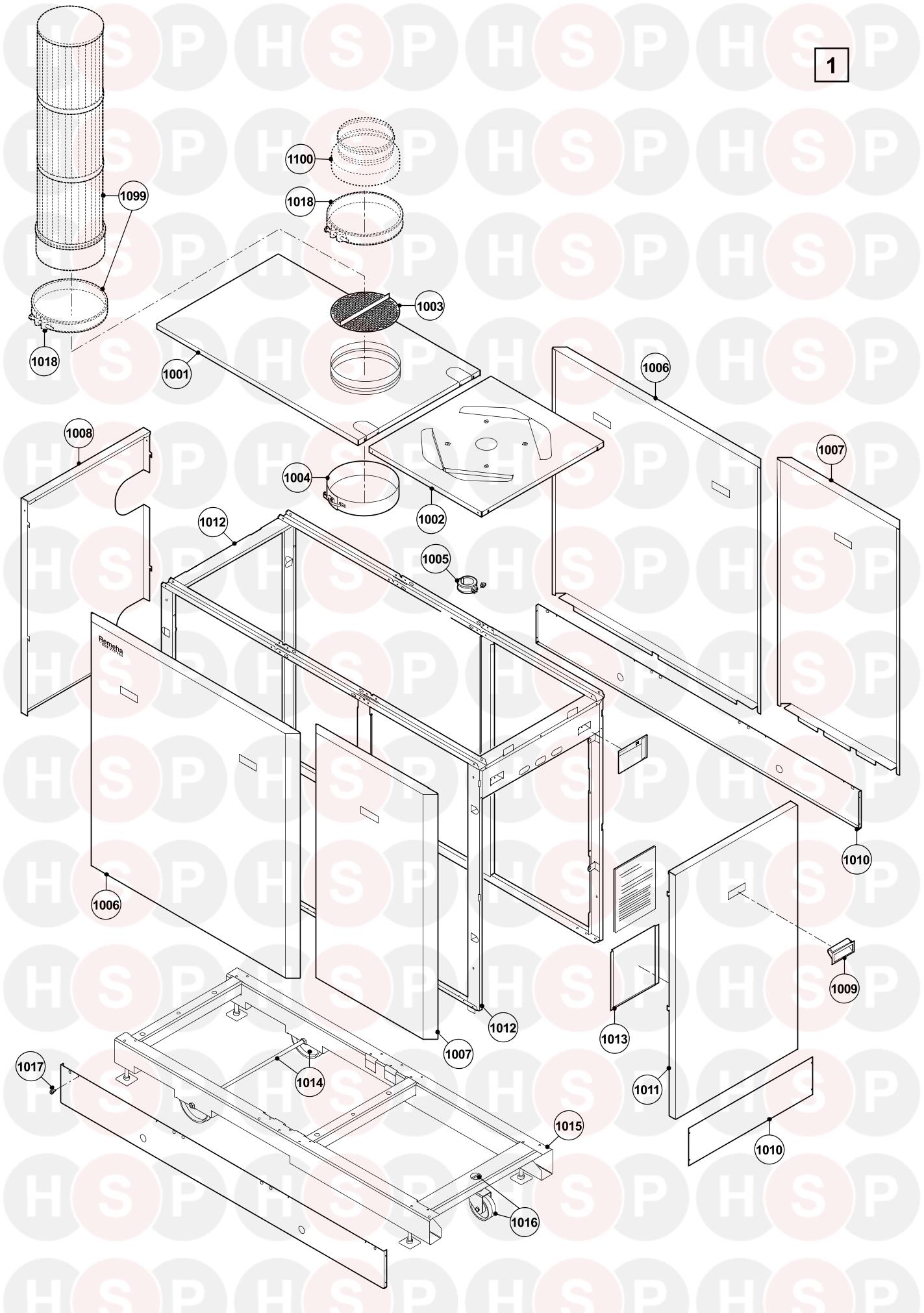

Casing diagram for Remeha-Commercial Gas 310/ 610 EC0Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1001   CASING TOP PANEL 5 SECTIONS
Remeha-Broag part no. 58448
£123.45
1001   CASING TOP PANEL 6 SECTIONS
Remeha-Broag part no. 58449
£123.45
1001   CASING TOP PANEL 7 SECTIONS
Remeha-Broag part no. 58450
£125.39
1001   CASING TOP PANEL 8 SECTIONS
Remeha-Broag part no. 58451
£138.88
1001   CASING TOP PANEL 9 SECTIONS
Remeha-Broag part no. 58452
£138.88
1002   CASING TOP PANEL INSTRUMENT END
Remeha-Broag part no. 58435
£90.66
1003   GRILL AIR SUPPLY
Remeha-Broag part no. 59200
£90.90
1004   CLAMP BAND 260MMD:
Remeha-Commercial part no. 58816
£163.23
1005   BRACKET 2"
Remeha-Broag part no. 58042
£18.18
1006   FRONT AND REAR CASING PANEL 5 AND 6 SECTIONS (RED)
Remeha-Commercial part no. 58458
£202.96
1006   FRONT AND REAR CASING PANEL 7, 8 AND 9 SECTIONS (RED)
Remeha-Broag part no. 58461
£172.97
1007   FRONT AND REAR CASING PANEL
Remeha-Broag part no. 58456
£126.85
1008   END CASING PANEL LEFT HAND CONNECTIONS (RED)
Remeha-Broag part no. 58453
£97.85
1008   END CASING PANEL RIGHT HAND CONNECTIONS (RED)
Remeha-Broag part no. 58454
£97.88
1010   SET CASING PLINTHS 5 AND 6 SECTIONS
Remeha-Broag part no. 58431
£125.39
1010   SET CASING PLINTHS 7, 8 AND 9 SECTIONS
Remeha-Broag part no. 58434
£169.74
1011   END CASING PANEL (GREY)
Remeha-Broag part no. 58455
£93.55
1012   CASING CORNER POSTS (SET OF 4)
Remeha-Broag part no. 58421
£111.88
1013   DOCUMENTATION HOLDER A4
Remeha-Commercial part no. 49427
£25.15
1014   MAIN WHEELS WITH AXLE
Remeha-Commercial part no. 57800
£207.23
1015   BASE FRAME 5 AND 6 SECTIONS
Remeha-Broag part no. 57765
£691.51
1015   BASE FRAME 7, 8 AND 9 SECTIONS
Remeha-Broag part no. 57768
£744.55
1016   CASTER WHEEL (STEERING)
Remeha-Broag part no. 58606
£25.80
1017 Part number 14254, NOW USE S14254 Screw self tapper 4.2 x 9.5mm NOW USE S14254 SCREW SELF TAPPER 4.2 X 9.5MM
Remeha-Broag part no. 14254

1017 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254
£11.05
1018 Part number S55465, Flue Clamp band + gasket ring 250mm D:(G310/610) FLUE CLAMP BAND + GASKET RING 250MM D:(G310/610)
Remeha-Commercial part no. S55465
£95.53
1099 Part number 59212, FILTER/AIR INLET FILTER (502MM LONG) DIA 325MM FILTER/AIR INLET FILTER (502MM LONG) DIA 325MM
Remeha-Broag part no. 59212
£743.46
