REMEHA-COMMERCIAL
QUINTA 30 - (Exploded View)

Appliance Diagram


Exploded View diagram for Remeha-Commercial Quinta 30Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number S54878, NOW (USE S103212) Fan assembly EBM G1G 126 AC 13 Q30/W40/Selecta c/w X21 connector NOW (USE S103212) FAN ASSEMBLY EBM G1G 126 AC 13 Q30/W40/SELECTA C/W X21 CONNECTOR
Remeha-Broag part no. S54878

1 Part number S103212, Fan assembly EBM G1G 126 AC 13 Q30/W40/Selecta c/w X21 connector FAN ASSEMBLY EBM G1G 126 AC 13 Q30/W40/SELECTA C/W X21 CONNECTOR
Remeha-Commercial part no. S103212
£208.75
2 Part number S45182, Gasket for flue fan (10 pcs.) GASKET FOR FLUE FAN (10 PCS.)
Remeha-Commercial part no. S45182
£26.25
3 Part number S48950, Screw M4x10 (50 pcs.) SCREW M4X10 (50 PCS.)
Remeha-Commercial part no. S48950
£15.00
3 Part number 48950, NOW USE S48950 Screw M4 x 10 NOW USE S48950 SCREW M4 X 10
Remeha-Broag part no. 48950

4 Part number 54768, NOW (USE S59215) Gasket gas combi block/venturi NOW (USE S59215) GASKET GAS COMBI BLOCK/VENTURI
Remeha-Broag part no. 54768

5 Part number 54777, Sealing for venturi ( order S54777 - now sold in packs of 5) SEALING FOR VENTURI ( ORDER S54777 - NOW SOLD IN PACKS OF 5)
Remeha-Broag part no. 54777

5 Part number S54777, Sealing for Venturi - (pack of 5) SEALING FOR VENTURI - (PACK OF 5)
Remeha-Commercial part no. S54777
£23.75
6 Part number S50541, Gasket for burner to front plate (5 pc GASKET FOR BURNER TO FRONT PLATE (5 PC
Remeha-Commercial part no. S50541
£7.64
6 Part number 50541, Gasket for burner to front plate NEW P/N S50541 GASKET FOR BURNER TO FRONT PLATE NEW P/N S50541
Remeha-Broag part no. 50541

7 Part number S54362, Gasket/Insulation for cover plate heat exchanger Quinta 30 GASKET/INSULATION FOR COVER PLATE HEAT EXCHANGER QUINTA 30
Remeha-Commercial part no. S54362
£68.75
8 Part number 54755, (NOW USE S54755) Nut M6 (NOW USE S54755) NUT M6
Remeha-Broag part no. 54755

8 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755
£21.25
9 Part number S56505, Valve multi block VK8115V12343 VALVE MULTI BLOCK VK8115V12343
Remeha-Commercial part no. S56505
£195.00
10 Part number S56157, GASKET PLATE HEAT X SECONDARY UNIONS 18.3MM O/D X 12.7MM I/D X 2MM GASKET PLATE HEAT X SECONDARY UNIONS 18.3MM O/D X 12.7MM I/D X 2MM
Remeha-Commercial part no. S56157
£17.50
10 Part number 56157, (NOW USE S56157) Gasket plate heat X secondary unions 18.3mm o/d x 12.7mm I/d x 2mm (NOW USE S56157) GASKET PLATE HEAT X SECONDARY UNIONS 18.3MM O/D X 12.7MM I/D X 2MM
Remeha-Broag part no. 56157

12 Part number 49510, Torx-key TORX-KEY
Remeha-Broag part no. 49510
£9.65
13 Part number S37628, NEW PART NUMBER S62728 Vent auto air bleed device 3/8" for W40/60, Quinta, Gas6, Gas2000/3000, Selecta NEW PART NUMBER S62728 VENT AUTO AIR BLEED DEVICE 3/8" FOR W40/60, QUINTA, GAS6, GAS2000/3000, SELECTA
Remeha-Broag part no. S37628

13 Part number S62728, Auto Air Vent bleed device 3/8" AUTO AIR VENT BLEED DEVICE 3/8"
Remeha-Commercial part no. S62728
£37.50
14 Part number S47170, Hose Silicone +ÿ 4Mm I/D-8Mm (1 Meter) HOSE SILICONE +Ÿ 4MM I/D-8MM (1 METER)
Remeha-Commercial part no. S47170
£16.25
14 Part number 47170, NOW USE S47170 Hose silicone 4mm I/d-8mm per M for gas valve venturi & air vent discharge NOW USE S47170 HOSE SILICONE 4MM I/D-8MM PER M FOR GAS VALVE VENTURI & AIR VENT DISCHARGE
Remeha-Broag part no. 47170

15 Part number S58938, Pressure gauge + grommet PRESSURE GAUGE + GROMMET
Remeha-Commercial part no. S58938
£25.00
16 Part number S46850, Non Return Valve (For Capillary Connection) Q45/65 NON RETURN VALVE (FOR CAPILLARY CONNECTION) Q45/65
Remeha-Commercial part no. S46850
£38.75
16 Part number 46850, (USE S46850) Pocket assembly for pressure gauge connection (USE S46850) POCKET ASSEMBLY FOR PRESSURE GAUGE CONNECTION
Remeha-Broag part no. 46850

17 Part number S54339, Quinta Eco Electrode Ignition/ionisation MX REBA inc gasket and 2 screws L=58 QUINTA ECO ELECTRODE IGNITION/IONISATION MX REBA INC GASKET AND 2 SCREWS L=58
Remeha-Commercial part no. S54339
£33.75
18 Part number 55409, (USE S55409) Grommet for ignition electrode (USE S55409) GROMMET FOR IGNITION ELECTRODE
Remeha-Broag part no. 55409

18 Part number S55409, GROMMET FOR IGNITION ELECTRODE GROMMET FOR IGNITION ELECTRODE
Remeha-Broag part no. S55409
£9.22
19 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489
£23.75
20 Part number S21473, Washer Spring Ring A4,3 (10 Pcs.) WASHER SPRING RING A4,3 (10 PCS.)
Remeha-Commercial part no. S21473
£7.20
20 Part number 21473, NOW USE S21473 Washer spring ring 4mm o/d x 3mm I/d for Ign electrode mtg screws x 2 NOW USE S21473 WASHER SPRING RING 4MM O/D X 3MM I/D FOR IGN ELECTRODE MTG SCREWS X 2
Remeha-Broag part no. 21473

21 Part number S55805, Cable ignition c/w cap (Quinta 30) CABLE IGNITION C/W CAP (QUINTA 30)
Remeha-Commercial part no. S55805
£45.00
22 Part number S45004, Glass inspection c/w gasket 32x32x3mm and screws GLASS INSPECTION C/W GASKET 32X32X3MM AND SCREWS
Remeha-Commercial part no. S45004
£41.25
23 Part number 35458, (NOW USE S35458) Gasket for inspection glass (NOW USE S35458) GASKET FOR INSPECTION GLASS
Remeha-Broag part no. 35458

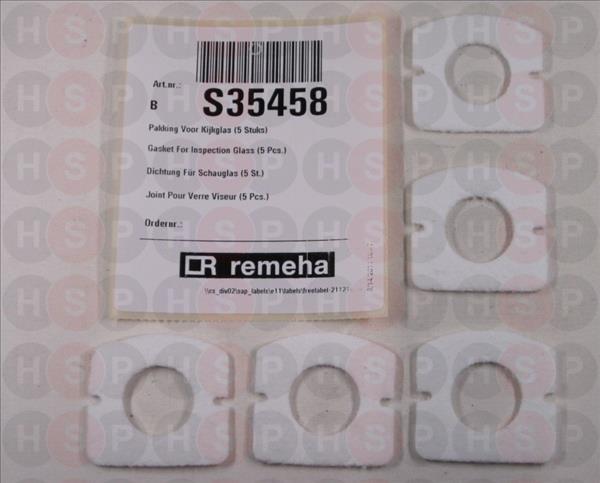

23 Part number S35458, Gasket for inspection glass (5 pcs) GASKET FOR INSPECTION GLASS (5 PCS)
Remeha-Commercial part no. S35458
£9.95
24 Part number S54822, Mounting Frame (For Inspection Glass) MOUNTING FRAME (FOR INSPECTION GLASS)
Remeha-Commercial part no. S54822
£11.39
24 Part number 54822, (USE S54822) Mounting frame (for inspection glass) (USE S54822) MOUNTING FRAME (FOR INSPECTION GLASS)
Remeha-Broag part no. 54822

25 Part number 56416, Gasket 1-joglle d=70(NEW PART NO. S56416) GASKET 1-JOGLLE D=70(NEW PART NO. S56416)
Remeha-Broag part no. 56416

25 Part number S56416, Flue Gasket 70mm (Q30) FLUE GASKET 70MM (Q30)
Remeha-Commercial part no. S56416
£9.95
27 Part number S44698, Temperature Sensor (flow And return) Elmwood NTC 12K/007 TEMPERATURE SENSOR (FLOW AND RETURN) ELMWOOD NTC 12K/007
Remeha-Commercial part no. S44698
£32.50
28 Part number S49297, Flue gas temp. sensor NTC 12kohm 3% (blue dot-Eco boiler) FLUE GAS TEMP. SENSOR NTC 12KOHM 3% (BLUE DOT-ECO BOILER)
Remeha-Commercial part no. S49297
£26.25
30 Part number 53240, OBSOLETE Cap for flue gas temperature sensor OBSOLETE CAP FOR FLUE GAS TEMPERATURE SENSOR
Remeha-Broag part no. 53240
£0.67
31 Part number 55668, NOW USE S55668 Sealant cap 12x10x4 NOW USE S55668 SEALANT CAP 12X10X4
Remeha-Broag part no. 55668

31 Part number S55668, SEALANT CAP 12X10X4 SEALANT CAP 12X10X4
Remeha-Broag part no. S55668
£4.60
32 Part number S49777, Actuator three-way-valve (DHW) VC4012ZZ00E 220v for Quinta 30 ACTUATOR THREE-WAY-VALVE (DHW) VC4012ZZ00E 220V FOR QUINTA 30
Remeha-Commercial part no. S49777
£175.00
33 Part number S49776, Three-way-valve (DHW) VCZMF6000E for Quinta 30 THREE-WAY-VALVE (DHW) VCZMF6000E FOR QUINTA 30
Remeha-Commercial part no. S49776
£120.00
35 Part number S59402, Control MCBA 1461/5461 D V3.1 Rev 2 (not Q115) CONTROL MCBA 1461/5461 D V3.1 REV 2 (NOT Q115)
Remeha-Commercial part no. S59402
£610.00
37 Part number 43563, NOW USE S43563 Fuse glass 2 amp fast NOW USE S43563 FUSE GLASS 2 AMP FAST
Remeha-Broag part no. 43563

37 Part number S43563, Fuses glass 2 Amp fast Pack of 10 FUSES GLASS 2 AMP FAST PACK OF 10
Remeha-Commercial part no. S43563
£18.75
38 Part number S54802, PCB display print PCB DISPLAY PRINT
Remeha-Commercial part no. S54802
£105.00
39 Part number S63316, Print Am3-2 (3 relais) PRINT AM3-2 (3 RELAIS)
Remeha-Commercial part no. S63316
£93.75
41 Part number 51103, (NOW USE S51103) Sealing ring 44x32x4mm - single item (NOW USE S51103) SEALING RING 44X32X4MM - SINGLE ITEM
Remeha-Broag part no. 51103

41 Part number S51103, Sealing Ring 44 x 32 x 4 Pack of 5 SEALING RING 44 X 32 X 4 PACK OF 5
Remeha-Commercial part no. S51103
£5.05
42 Part number S54811, Quinta Door Magnets QUINTA DOOR MAGNETS
Remeha-Commercial part no. S54811
£36.25
42 Part number 54811, (USE S54811) Magnet round 8mm for door closure (USE S54811) MAGNET ROUND 8MM FOR DOOR CLOSURE
Remeha-Broag part no. 54811

43 Part number S56205, Inspection hatch heat exchanger INSPECTION HATCH HEAT EXCHANGER
Remeha-Commercial part no. S56205
£218.75
44 Part number S56501, Venturi Q30 VENTURI Q30
Remeha-Commercial part no. S56501
£168.75
45   SCREW M5X12
Remeha-Commercial part no. 44830
£0.29
46   SCREW 7985 M4X10
Remeha-Commercial part no. 32786
£0.29
47 Part number 56504, Air supply damper AIR SUPPLY DAMPER
Remeha-Broag part no. 56504
£6.67
48 Part number 56206, Gas flow pipe venturi (NEW PART NO. S59258) GAS FLOW PIPE VENTURI (NEW PART NO. S59258)
Remeha-Broag part no. 56206

48 Part number S59258, Gas Supply Pipe VENTURI GAS SUPPLY PIPE VENTURI
Remeha-Commercial part no. S59258
£45.00
49   GAS FLOW PIPE GASBLOCK OUTLET
Remeha-Broag part no. 56207
£7.80
50 Part number S56495, (USE S57888) Burner furigas Q30 18SR (USE S57888) BURNER FURIGAS Q30 18SR
Remeha-Broag part no. S56495

50 Part number S57888, Burner Furigas 18sr Quinta 30 BURNER FURIGAS 18SR QUINTA 30
Remeha-Commercial part no. S57888
£110.00
51   FLOW PIPE/AIR SEPARATOR Q30
Remeha-Broag part no. 56263
£25.08
51 Part number S100479, Air Separator With Flow Pipe AIR SEPARATOR WITH FLOW PIPE
Remeha-Commercial part no. S100479
£195.00
52   FLOW PIPE THREE WAY VALVE CALORIFIER
Remeha-Broag part no. 56262
£18.34
54   FLOW PIPE THREE WAY VALVE CENTRAL HEAT.
Remeha-Commercial part no. 56261
£15.00
56   HOSE PVC 27/19
Remeha-Commercial part no. 49441
£15.00
57   GAS FLOW PIPE GASBLOCK INLET
Remeha-Commercial part no. S56208
£32.50
58 Part number s56168, Casing side left or right Q85 & Q115 CASING SIDE LEFT OR RIGHT Q85 & Q115
Remeha-Commercial part no. s56168
£105.00
59 Part number S54783, Casing front for Quinta ECO (Includes Top & Bottom Trim) CASING FRONT FOR QUINTA ECO (INCLUDES TOP & BOTTOM TRIM)
Remeha-Commercial part no. S54783
£203.75
59 Part number 59278, Casing front for Q45/Q65 - Now use S54783 for All Quintas CASING FRONT FOR Q45/Q65 - NOW USE S54783 FOR ALL QUINTAS
Remeha-Broag part no. 59278

60 Part number S100213, Grey Drop Down Door for Quinta 30/45/65/85/115 GREY DROP DOWN DOOR FOR QUINTA 30/45/65/85/115
Remeha-Commercial part no. S100213
£63.75
61   FRAME + TOP PLATE
Remeha-Broag part no. 56486
£38.58
62   BOX INSTRUMENT PANEL
Remeha-Broag part no. 56167
£16.40
63   FLOOR PLATE INSTRUMENT PANEL
Remeha-Broag part no. 56318
£27.00
64   ADAPTER SUPPORT
Remeha-Broag part no. 56317
£3.96
65   DOCUMENTATION HOLDER A5
Remeha-Broag part no. 54812
£9.65
66   BOTTOM PLATE FOR DRAUGHT BLEEDER
Remeha-Broag part no. 56319
£16.40
67   CABLE SUPPORT
Remeha-Broag part no. 49196
£2.28
68   (USE S54800)PANEL DISPLAY
Remeha-Broag part no. 54800

68   DOOR R/H
Remeha-Commercial part no. S54800
£18.75
69 Part number S56940, Door R/H Cover DOOR R/H COVER
Remeha-Commercial part no. S56940
£25.00
69 Part number 56940, (USE S56940)Door display (USE S56940)DOOR DISPLAY
Remeha-Broag part no. 56940

71   (USE S59480) PANEL TEM FRONT PLATE
Remeha-Broag part no. 54797

71   PANEL TEM FRONT PLATE
Remeha-Commercial part no. S59480
£15.00
72 Part number S56087, Housing TEM (open) HOUSING TEM (OPEN)
Remeha-Commercial part no. S56087
£43.75
74   (USE S54805) CABLE FLAT CONNECTOR
Remeha-Broag part no. 54805

75   SNAPPER FOR CONTROL BOX
Remeha-Broag part no. 54794
£1.62
76 Part number 56260, Return pipe central heating-return Now P/N S100477 (Q30) RETURN PIPE CENTRAL HEATING-RETURN NOW P/N S100477 (Q30)
Remeha-Broag part no. 56260

76 Part number S100477, Return Pipe Central Heating-Return (Quinta 30) RETURN PIPE CENTRAL HEATING-RETURN (QUINTA 30)
Remeha-Commercial part no. S100477
£56.25
77   SCREW PLUG HOLLOW 1/2"
Remeha-Commercial part no. 57430
£3.90
78 Part number 54798, Hinge pin (instrument door) HINGE PIN (INSTRUMENT DOOR)
Remeha-Broag part no. 54798
£4.56
79 Part number S53480, Syphon Supply tube (Heat exchanger connection) SYPHON SUPPLY TUBE (HEAT EXCHANGER CONNECTION)
Remeha-Commercial part no. S53480
£13.75
80 Part number S54761, Syphon assembly c/w outlet pipe SYPHON ASSEMBLY C/W OUTLET PIPE
Remeha-Commercial part no. S54761
£28.75
81 Part number S49424, Stool piece (internal flow pipe) STOOL PIECE (INTERNAL FLOW PIPE)
Remeha-Commercial part no. S49424
£120.00
82   CLAMP BRACKET FOR PIPES (FRONT)
Remeha-Commercial part no. 52066
£3.90
83   CLAMP BRACKET FOR PIPES (REAR)
Remeha-Broag part no. 56541
£3.15
84   INLET PLATE Q10/25/30
Remeha-Broag part no. 56290
£15.43
85   BRACKET FOR HEAT EXCHANGER QUINTA 30
Remeha-Broag part no. 56912
£14.48
86   MOUNTING FRAME EXPANSION VESSEL
Remeha-Broag part no. 56316
£12.54
87   DISTANCE HOLDER
Remeha-Broag part no. 47174
£0.28
88 Part number S56209, Flue gas pipe R80/70 FLUE GAS PIPE R80/70
Remeha-Commercial part no. S56209
£45.00
90   (USE S54748)FLUE CONNECTION 125MM DIA
Remeha-Broag part no. 54748

90   FLUE CONNECTION 125MM DIA
Remeha-Commercial part no. S54748
£43.75
91 Part number S54751, Flue connection D=125mm concentric FLUE CONNECTION D=125MM CONCENTRIC
Remeha-Commercial part no. S54751
£33.75
92 Part number S54750, Flue connection D=80mm excentric for QP30/45 (Cover) FLUE CONNECTION D=80MM EXCENTRIC FOR QP30/45 (COVER)
Remeha-Commercial part no. S54750
£37.50
94 Part number S56419, Heat exchanger Q30 HEAT EXCHANGER Q30
Remeha-Commercial part no. S56419
£1,337.50
95   SCREW M4,2X19
Remeha-Broag part no. 56322
£0.31
96 Part number S54813, Sight Cover For Display SIGHT COVER FOR DISPLAY
Remeha-Commercial part no. S54813
£15.00
96 Part number 54813, (USE S54813) Inspection window plastic (USE S54813) INSPECTION WINDOW PLASTIC
Remeha-Broag part no. 54813

97 Part number 49294, Expansion vessel 16 litres EXPANSION VESSEL 16 LITRES
Remeha-Commercial part no. 49294
£336.25
98   EURO PLUG (MALE)
Remeha-Commercial part no. 45165
£12.50
99 Part number 42460, Euro Socket (Male) EURO SOCKET (MALE)
Remeha-Commercial part no. 42460
£11.24
103 Part number S57163, Cap for connection piece chimney (Pk2) CAP FOR CONNECTION PIECE CHIMNEY (PK2)
Remeha-Commercial part no. S57163
£17.50
104 Part number 56245, Extension piece air supply EXTENSION PIECE AIR SUPPLY
Remeha-Broag part no. 56245
£3.96
105 Part number 56963, Cover plate for condensation connection COVER PLATE FOR CONDENSATION CONNECTION
Remeha-Commercial part no. 56963
£1.59



Heating spares made simple this website is secured by Geotrust
