QUINTA ACE 55KW - (Exploded View)
Appliance Code: 55KW

Appliance Diagram


Exploded View diagram for Remeha-Commercial Quinta Ace 55kWClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1001 Part number 7699574, CASING FRONT PANEL CASING FRONT PANEL
Remeha-Broag part no. 7699574		 £100,85
1002 Part number 7699595, COVER DROP DOWN REMEHA COVER DROP DOWN REMEHA
Remeha-Broag part no. 7699595		 £82,62
1003 Part number S101517, Wall Bracket WALL BRACKET
Remeha-Commercial part no. S101517		 £20,34
1004 Part number 7699574, CASING FRONT PANEL CASING FRONT PANEL
Remeha-Broag part no. 7699574		 £100,85
1005 Part number S101403, Stud Quarter Retain STUD QUARTER RETAIN
Remeha-Commercial part no. S101403		 £25,59
1006   BOILER LIGHT 24V
Remeha-Broag part no. 7702357		 £70,47
2001   HEAT EXCHANGER 55/65KW
Remeha-Broag part no. 7699615		 £1.743,53
2002 Part number S101564, Quinta Pro Heat Exchanger Front Plate QUINTA PRO HEAT EXCHANGER FRONT PLATE
Remeha-Commercial part no. S101564		 £294,03
2003 Part number S54754, Burner (Q65) furigas (c/w seal and insulation) BURNER (Q65) FURIGAS (C/W SEAL AND INSULATION)
Remeha-Commercial part no. S54754		 £815,27
2004   ELECTRODE - IGNITION/IONISATION
Remeha-Broag part no. 7702138		 £27,65
2005 Part number S53489, Gasket for ignition electrode (Pack of 10) GASKET FOR IGNITION ELECTRODE (PACK OF 10)
Remeha-Commercial part no. S53489		 £32,55
2006 Part number S59118, GLASS INSPECTION SET GLASS INSPECTION SET
Remeha-Commercial part no. S59118		 £50,58
2007 Part number S54731, Insulation front plate heat exchanger INSULATION FRONT PLATE HEAT EXCHANGER
Remeha-Commercial part no. S54731		 £87,48
2008 Part number S57241, Gasket front plate Quinta 45/65/85/115 (Red Seal) GASKET FRONT PLATE QUINTA 45/65/85/115 (RED SEAL)
Remeha-Commercial part no. S57241		 £23,60
2009 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755		 £29,29
2010 Part number s100052, Screw Burner (20 pcs) SCREW BURNER (20 PCS)
Remeha-Broag part no. s100052		 £13,27
2015 Part number S48950, Screw M4x10 (50 pcs.) SCREW M4X10 (50 PCS.)
Remeha-Commercial part no. S48950		 £20,34
2016   FLUE GAS PIPE 100 MM
Remeha-Broag part no. 7700499		 £39,74
2017   SEALING RING - FLUE 100 (5 PCS)
Remeha-Broag part no. 7701752		 £29,29

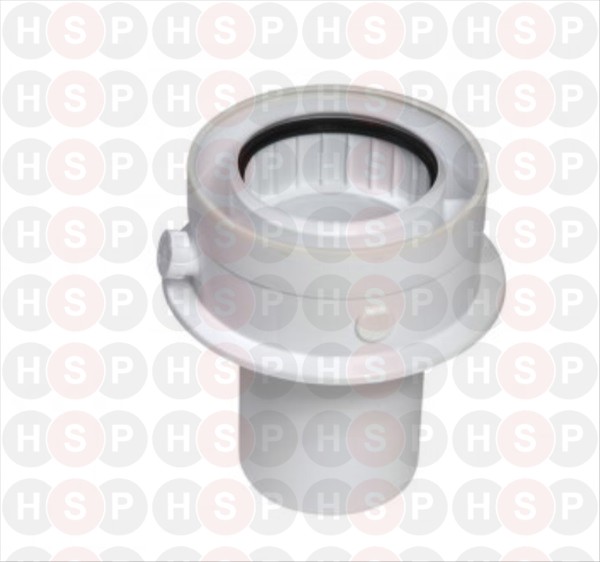

2019 Part number S101627, 100/150 concentric flue Adapter for Quinta Pro boiler 100/150 CONCENTRIC FLUE ADAPTER FOR QUINTA PRO BOILER
Remeha-Commercial part no. S101627		 £32,55
2020 Part number S62233, CAP CAP
Remeha-Commercial part no. S62233		 £33,22
2021 Part number S62232, Screw cap flue gas measure point (5 pcs) Quinta PRO SCREW CAP FLUE GAS MEASURE POINT (5 PCS) QUINTA PRO
Remeha-Commercial part no. S62232		 £42,29
2022 Part number S101643, Sealing Ring 100 (5 Pcs) SEALING RING 100 (5 PCS)
Remeha-Commercial part no. S101643		 £40,68
2024 Part number S100901, Fixing Strip Heat Exchanger FIXING STRIP HEAT EXCHANGER
Remeha-Commercial part no. S100901		 £48,95
2025 Part number S62288, Sampling Point Bung Quinta/310 Pro (For 210 PRO use S100850) SAMPLING POINT BUNG QUINTA/310 PRO (FOR 210 PRO USE S100850)
Remeha-Commercial part no. S62288		 £8,16
2026 Part number S101568, Flow Pipe Central Heating (Quinta Pro) FLOW PIPE CENTRAL HEATING (QUINTA PRO)
Remeha-Commercial part no. S101568		 £283,10
2028 Part number S101608, Vent Auto Air Bleed Device (QP) VENT AUTO AIR BLEED DEVICE (QP)
Remeha-Commercial part no. S101608		 £23,60
2028 Part number 7669770, NOW USE S101608 AIR VENT NOW USE S101608 AIR VENT
Remeha-Broag part no. 7669770
2029 Part number S100737, Sealing Ring 44x32x4mm (5pcs) SEALING RING 44X32X4MM (5PCS)
Remeha-Commercial part no. S100737		 £21,98
2030   WIRE CLAMP 28-35 (5 PCS)
Remeha-Commercial part no. S101576		 £14,74
2031 Part number 7605371, S Clip Hairpin 9.4 (Pk5) S CLIP HAIRPIN 9.4 (PK5)
Remeha-Commercial part no. 7605371		 £6,93
2033 Part number S101570, Hose silicone 8x2x740 mm HOSE SILICONE 8X2X740 MM
Remeha-Commercial part no. S101570		 £30,91
2037 Part number S101558, Siphon Body QP (Includes Upper Seal & Screws, NO CUP) SIPHON BODY QP (INCLUDES UPPER SEAL & SCREWS, NO CUP)
Remeha-Commercial part no. S101558		 £20,34
2038 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254		 £12,67
2039 Part number S101580, Sealing Ring 60mm SEALING RING 60MM
Remeha-Commercial part no. S101580		 £16,92
2040 Part number S101559, Siphon Cup SIPHON CUP
Remeha-Commercial part no. S101559		 £35,79
2041 Part number S101606, Syphon Hose (Quinta Pro) SYPHON HOSE (QUINTA PRO)
Remeha-Commercial part no. S101606		 £26,03
2042 Part number S101581, Sealing Ring Syphon SEALING RING SYPHON
Remeha-Commercial part no. S101581		 £34,18
2044   CAP BLIND SCU
Remeha-Commercial part no. S101298		 £30,91
2045 Part number S62727, GROMMET 20mm GROMMET 20MM
Remeha-Commercial part no. S62727		 £47,58
2046   GROMMET (5 PCS)
Remeha-Commercial part no. S101607		 £21,98
2047   SEALANT RETURN CENTRAL HEATING
Remeha-Commercial part no. S101605		 £35,79
2048   SEALING RING - FLUE 100 (5 PCS)
Remeha-Broag part no. 7701753		 £26,03
3001 Part number S101726, Fan Q65/85 QP65/90 G110-65kw (65/85/90kw) FAN Q65/85 QP65/90 G110-65KW (65/85/90KW)
Remeha-Commercial part no. S101726		 £468,99
3002 Part number S54766, Venturi Cvi 051 65 VENTURI CVI 051 65
Remeha-Commercial part no. S54766		 £92,34
3003   AIR INLET DAMPER
Remeha-Commercial part no. S101543		 £21,98
3004   CLAMP AIR INLET SILENCER
Remeha-Commercial part no. S101590		 £10,29
3005   GAS SUPPLY PIPE
Remeha-Commercial part no. S101569		 £86,27
3006 Part number S101596, Gas block Vk8115V1386 30, 45 & 65 kW 230 Volt (Quinta Pro) GAS BLOCK VK8115V1386 30, 45 & 65 KW 230 VOLT (QUINTA PRO)
Remeha-Commercial part no. S101596		 £243,00
3007 Part number S101565, Seal 83mm complete with non-return valve - Quinta Pro SEAL 83MM COMPLETE WITH NON-RETURN VALVE - QUINTA PRO
Remeha-Commercial part no. S101565		 £12,04
3008 Part number S54777, Sealing for Venturi - (pack of 5) SEALING FOR VENTURI - (PACK OF 5)
Remeha-Commercial part no. S54777		 £32,55
3009 Part number S48512, Screw M5X10 (10 Pcs) SCREW M5X10 (10 PCS)
Remeha-Commercial part no. S48512		 £21,98
3010 Part number S101591, Gasket set 45-65 kW GASKET SET 45-65 KW
Remeha-Commercial part no. S101591		 £35,79
3011 Part number S56155, Gasket 23.8 x 17.2 (20pc) GASKET 23.8 X 17.2 (20PC)
Remeha-Commercial part no. S56155		 £34,18
3012   WIRE CLAMP (5 PCS)
Remeha-Commercial part no. S101519		 £14,74
3013 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755		 £29,29
3014 Part number S100055, Nut M5 (Pack of 20) NUT M5 (PACK OF 20)
Remeha-Commercial part no. S100055		 £20,34
4001   PCB CU-GH08
Remeha-Commercial part no. 7817316		 £157,95
4001 Part number 7726804, NOW USE 7817316 PCB GH08 NOW USE 7817316 PCB GH08
Remeha-Broag part no. 7726804
4002 Part number 7665228, PCB CB-03 PCB CB-03
Remeha-Broag part no. 7665228		 £48,95
4004 Part number 7665229, CONTROL BOX CONTROL BOX
Remeha-Broag part no. 7665229		 £178,61
4005 Part number 7701771, FUSE GLASS 2.5 AMP (5PCS) FUSE GLASS 2.5 AMP (5PCS)
Remeha-Broag part no. 7701771		 £9,37
4006 Part number 7665230, SWITCH ON/OFF SWITCH ON/OFF
Remeha-Broag part no. 7665230		 £26,03
4007 Part number 7665231, SERVICE CONNECTOR SERVICE CONNECTOR
Remeha-Broag part no. 7665231		 £16,62

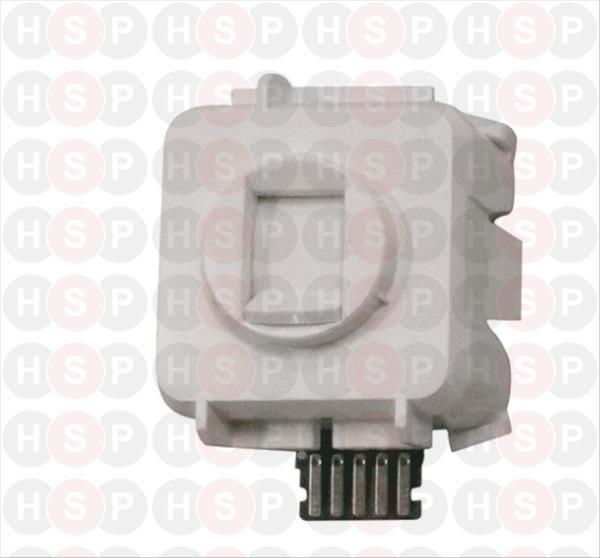

4008 Part number 7633327, Configuration Storage Unit CSU-01 CONFIGURATION STORAGE UNIT CSU-01
Remeha-Commercial part no. 7633327		 £37,43
4009 Part number S101554, Cable for Pump PCU - Terminal X8 Internal to PCB CABLE FOR PUMP PCU - TERMINAL X8 INTERNAL TO PCB
Remeha-Commercial part no. S101554		 £16,44
4010 Part number 7701705, CABLE SET ELV CABLE SET ELV
Remeha-Broag part no. 7701705		 £27,65
4011   CABLE SET 230V (30-90KW)
Remeha-Broag part no. 7701699		 £26,03
4012   POWER CABLE X1 (L = 1500 MM)
Remeha-Commercial part no. S100845		 £40,68
4014   CONTROL PANEL MK3 SW 1.28 (BLACK)
Remeha-Broag part no. 7712174
4015 Part number 7665234, CABLE SET (CONTROL BOX INTERNAL) CABLE SET (CONTROL BOX INTERNAL)
Remeha-Broag part no. 7665234		 £76,55
4017 Part number S101514, Door clamp (2 pieces) DOOR CLAMP (2 PIECES)
Remeha-Commercial part no. S101514		 £23,60
4027 Part number S100763, Print Interface 0-10V (If-01) Quinta Pro PRINT INTERFACE 0-10V (IF-01) QUINTA PRO
Remeha-Commercial part no. S100763		 £217,49
4028 Part number 7701709, CABLE IF01 CABLE IF01
Remeha-Broag part no. 7701709		 £12,93
4030 Part number S101509, Screw 7985 M4X8 (5 Pcs) SCREW 7985 M4X8 (5 PCS)
Remeha-Commercial part no. S101509		 £15,36
4031 Part number 7624619, Transformer Ignition TRANSFORMER IGNITION
Remeha-Commercial part no. 7624619		 £18,55
4032 Part number S101632, Water Pressure Sensor (Quinta Pro) WATER PRESSURE SENSOR (QUINTA PRO)
Remeha-Commercial part no. S101632		 £48,95
4033 Part number 7623837, Sensors Set Double NTC 10k (1x) and NTC SENSORS SET DOUBLE NTC 10K (1X) AND NTC
Remeha-Commercial part no. 7623837		 £18,55
