REMEHA-COMMERCIAL
QUINTA PRO CASCADE KIT 30-115KW - (Cascade 1)
Appliance Code: PRO CASCADE 30-115KW

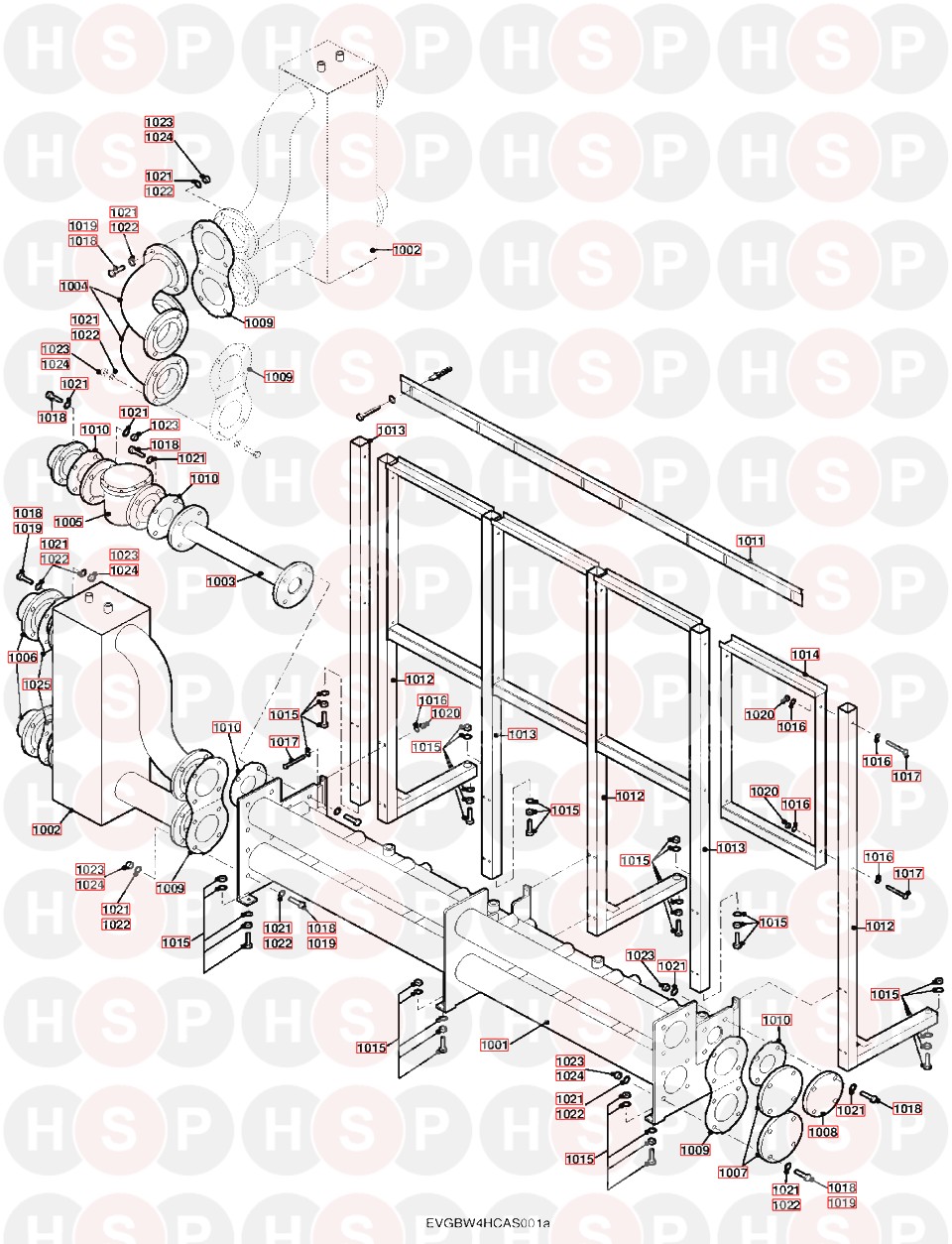

Appliance Diagram


Cascade 1 diagram for Remeha-Commercial Quinta Pro Cascade Kit 30-115kWClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1001   MAIN PIPING SET 100- 4
Remeha-Commercial part no. S100129
£1,454.85
1001   MAIN PIPING SET 100- 3
Remeha-Commercial part no. S100130
£1,738.69
1001   MAIN PIPING SET 100- 2
Remeha-Commercial part no. S100131
£1,209.00
1001   MAIN PIPING SET 65-4
Remeha-Commercial part no. S100135
£1,126.00
1001   MAIN PIPING SET 65-3
Remeha-Commercial part no. S100136
£1,276.04
1001   MAIN PIPING SET 65-2
Remeha-Commercial part no. S100137
£860.13
1002   LOW LOSS HEADER DN 65
Remeha-Commercial part no. S100405
P.O.A.
1002   LOW LOSS HEADER DN100
Remeha-Commercial part no. S100526
P.O.A.
1003   EXTENSION GAS PIPE DN65
Remeha-Commercial part no. S100160
£357.68
1003   EXTENSION GAS PIPE DN50
Remeha-Commercial part no. S100161
£333.54
1004   ELBOW DN100
Remeha-Commercial part no. S100166
£1,009.15
1004   ELBOW DN65
Remeha-Commercial part no. S100168
£647.23
1005 Part number S101655, Gas Filter DN50 GAS FILTER DN50
Remeha-Commercial part no. S101655
£263.30
1005 Part number S101656, Gas Filter DN65 GAS FILTER DN65
Remeha-Commercial part no. S101656
£1,157.50
1006   FLANGE COUNTER DN65
Remeha-Commercial part no. S100277
£201.57
1006   FLANGE COUNTER DN1 00
Remeha-Commercial part no. S100278
£215.74
1006   CONNECTING FLANGE D N100
Remeha-Commercial part no. S100406
P.O.A.
1006   CONNECTING FLANGE DN125
Remeha-Commercial part no. S100527
P.O.A.
1007   FLANGE BLANK DIN252 7 DN100
Remeha-Commercial part no. S100091
£151.00
1007 Part number S100093, Flange blank Din2527 DN65 FLANGE BLANK DIN2527 DN65
Remeha-Commercial part no. S100093
£337.81
1008   165MM BLIND FLANGE
Remeha-Commercial part no. S100142
£222.84
1008   FLANGE BLANK DIN2527 DN65
Remeha-Commercial part no. S100144
£238.45
1009   NOW USE S100146 GASKET 100MM
Remeha-Commercial part no. S100098

1009   NOW USE S100148 DN65 PACKAGE MANIFOLD GASKET
Remeha-Commercial part no. S100102

1009   GASKET 100MM (5PCS)
Remeha-Commercial part no. S100146
£42.71
1009 Part number S100148, Gasket Dia65 (10 Pc s.) GASKET DIA65 (10 PC S.)
Remeha-Commercial part no. S100148
£42.71
1010   DN65 GASKET
Remeha-Commercial part no. S100099
£47.13
1010   DN50 GASKET
Remeha-Commercial part no. S100103
£32.65
1011   WALL BRACKET LW2
Remeha-Commercial part no. S100153
£91.13
1011   WALL BRACKET LW3
Remeha-Commercial part no. S100154
£45.00
1011   WALL BRACKET LW4
Remeha-Commercial part no. S100155
£51.00
1012   VERTICAL MOUNTING STANDARD RIGHT ANGLE
Remeha-Commercial part no. S100126
£160.39
1013   VERTICAL MOUNTING STANDARD
Remeha-Commercial part no. S100127
£254.05
1014   HORIZONTAL MOUNTING PLATE
Remeha-Commercial part no. S100125
£220.00
1015   HEIGHT ADJUSTMENT
Remeha-Commercial part no. S100151
£14.76
1016   WASHER 8.4MM +Y - PACK OF 25
Remeha-Commercial part no. S100088
£9.81
1017   SCREW M8X70 (20 PCS)
Remeha-Commercial part no. S100108
£28.39
1018   BOLT M16 X 50MM (20 PCS)
Remeha-Commercial part no. S100115
£55.93
1019 Part number S100112, Bolt M12 X 45Mm (20 Pcs.) BOLT M12 X 45MM (20 PCS.)
Remeha-Commercial part no. S100112
£35.49
1020   NUT M8 (20 PCS)
Remeha-Commercial part no. S100109
£13.39
1021   WASHER 17MM (20 PCS)
Remeha-Commercial part no. S100117
£10.50
1022 Part number S100114, Washer (Pk 10) WASHER (PK 10)
Remeha-Commercial part no. S100114
£16.19
1023   NUT M16 (20PCS)
Remeha-Commercial part no. S100116
£24.13
1024 Part number S100113, Nut (Pk 10) NUT (PK 10)
Remeha-Commercial part no. S100113
£16.19
1025   GASKET DN100 (2 PC S.)
Remeha-Commercial part no. S100407
P.O.A.
1025   GASKET DN125 (2 PC S.)
Remeha-Commercial part no. S100408
P.O.A.
