RIELLO
40 G5 DB 3744454 - (Riello Burner 40 G5 DB)
Appliance Code: 3744454

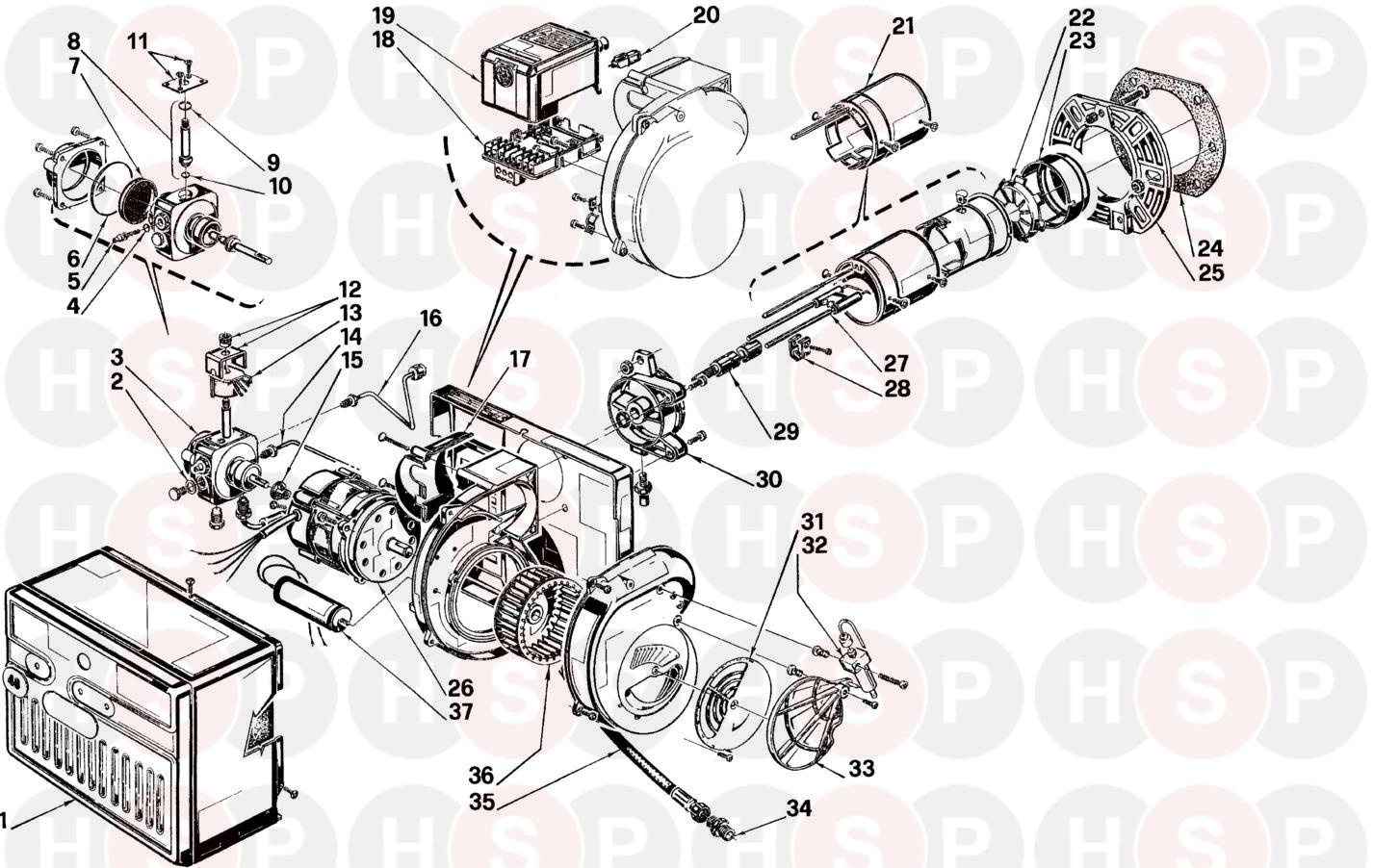

Appliance Diagram


Riello Burner 40 G5 DB diagram for Riello 40 G5 DB 3744454Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   CASING G5 (REPLACES 3008449)
Riello part no. 3007233
£61.19
2 Part number 3007077, WASHER SEAL 10 PCS WASHER SEAL 10 PCS
Riello part no. 3007077
£7.23
3 Part number 3007811, NOW USE PUMP 20031996 (REPLACES 3007450) NOW USE PUMP 20031996 (REPLACES 3007450)
Riello part no. 3007811

3 Part number 20031996, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20031996
£117.01
4 Part number 3007169, RING OR (10PCS) RING OR (10PCS)
Riello part no. 3007169
£8.33
4 Part number 3007028, NOW USE 3007169 RING SEAL (10 PCS) NOW USE 3007169 RING SEAL (10 PCS)
Riello part no. 3007028

5 Part number 3007202, OBSOLETE REGULATOR (G5BF) OBSOLETE REGULATOR (G5BF)
Riello part no. 3007202
£6.13
6 Part number 3007162, NOW USE 3007175 O RING 10 PCS NOW USE 3007175 O RING 10 PCS
Riello part no. 3007162

6 Part number 3007175, O ring (10 pcs) O RING (10 PCS)
Riello part no. 3007175
£15.22
7 Part number 3005719, FILTER MTN. 2/3/5 FILTER MTN. 2/3/5
Riello part no. 3005719
£3.07
8 Part number 3006925, PUMP SOLENOID SHAFT PUMP SOLENOID SHAFT
Riello part no. 3006925
£16.53
9 Part number 3007029, RING SEAL (10 PCS) RING SEAL (10 PCS)
Riello part no. 3007029
£6.97
10 Part number 3007156, RING (10 PCS.) RING (10 PCS.)
Riello part no. 3007156
£4.68
11 Part number 3000439, PUMP SEAL KIT PUMP SEAL KIT
Riello part no. 3000439
£17.65
12 Part number 3006553, COVER CAGE AND NUT COVER CAGE AND NUT
Riello part no. 3006553
£6.35
13 Part number 3002279, COIL COIL
Riello part no. 3002279
£15.53
14 Part number 3007942, TUBE (G5) TUBE (G5)
Riello part no. 3007942
£55.00
15 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443
£7.40

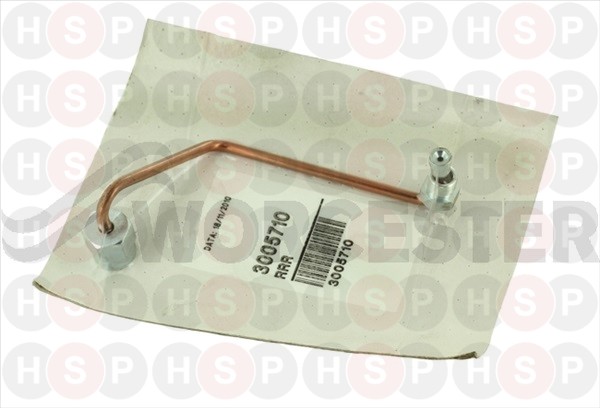

16 Part number 3005710, OIL PIPE MTN 5 OIL PIPE MTN 5
Riello part no. 3005710
£9.27
17   COVER
Riello part no. 3006556
£4.56
18 Part number 3002278, CONTROL BOX BASE (G5-G20) CONTROL BOX BASE (G5-G20)
Riello part no. 3002278
£12.16
19 Part number 3001156, CONTROL BOX 530 SE CONTROL BOX 530 SE
Riello part no. 3001156
£102.83
20 Part number 3002280, NOW USE 20132573 PHOTOCELL NOW USE 20132573 PHOTOCELL
Riello part no. 3002280

20   FLAME SENSOR (REPLACES 3002280)
Riello part no. 20132573
£27.17
21 Part number 3005706, BLAST TUBE BLAST TUBE
Riello part no. 3005706
£27.94
22 Part number 3005713, DIFFUSER DISC DIFFUSER DISC
Riello part no. 3005713
£13.01
23 Part number 3006040, RING RING
Riello part no. 3006040
£19.33
24 Part number 3005787, FLANGE GASKET USED WITH 5786 FLANGE GASKET USED WITH 5786
Riello part no. 3005787
£7.14
25 Part number 3005786, NOW USE 3008636 FLANGE G2-G5 NOW USE 3008636 FLANGE G2-G5
Riello part no. 3005786

25 Part number 3008636, FLANGE (replaces 3005786) FLANGE (REPLACES 3005786)
Riello part no. 3008636
£15.67
27 Part number 3005711, ELECTRODE ELECTRODE
Riello part no. 3005711
£16.90
28 Part number 3006552, ELECTRODE CLAMP (10 PCS) ELECTRODE CLAMP (10 PCS)
Riello part no. 3006552
£18.53
29 Part number 3005709, NOZZLE HOLDER MTN. 5 NOZZLE HOLDER MTN. 5
Riello part no. 3005709
£10.40
30 Part number 3005761, FLANGE FLANGE
Riello part no. 3005761
£25.88
31 Part number 3007204, AIR DAMPER AIR DAMPER
Riello part no. 3007204
£14.21
32 Part number 3006911, HYDRAULIC RAM HYDRAULIC RAM
Riello part no. 3006911
£27.53
33 Part number 3000878, SHUTTER ASSEMBLY SHUTTER ASSEMBLY
Riello part no. 3000878
£12.33
34 Part number 3003602, CONNECTOR (G5BF) CONNECTOR (G5BF)
Riello part no. 3003602
£4.22
35 Part number 3005720, NOW USE 20022601 FLEXIBLE PIPE NOW USE 20022601 FLEXIBLE PIPE
Riello part no. 3005720

35 Part number 20022601, Oil Hose Line 3/8" Angled Male 3/8" OIL HOSE LINE 3/8" ANGLED MALE 3/8"
Riello part no. 20022601
£17.80
36 Part number 3005708, FAN FAN
Riello part no. 3005708
£19.64
