RIELLO
RDB1 FIREBIRD OVEN 12 KW 20083657 (501T1K) - (Exploded View)
Appliance Code: 20083657

Appliance Diagram


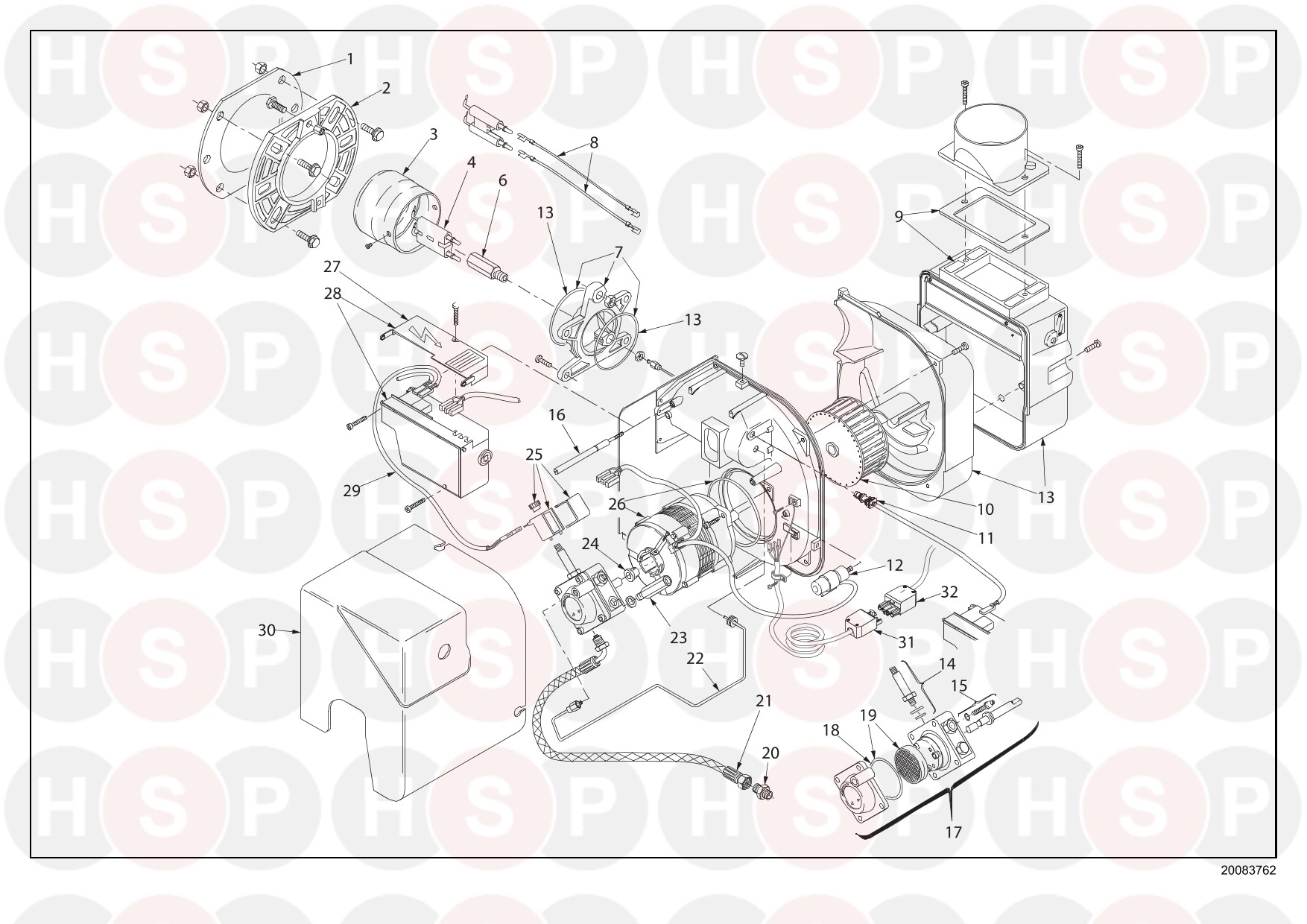

Exploded View diagram for Riello RDB1 Firebird Oven 12 kW 20083657 (501T1K)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 3005787, FLANGE GASKET USED WITH 5786 FLANGE GASKET USED WITH 5786
Riello part no. 3005787		 £7.14
2 Part number 3006384, FRONT PIECE FRONT PIECE
Riello part no. 3006384		 £12.55
3 Part number 3002551, T1 SH HEAD T1 SH HEAD
Riello part no. 3002551		 £31.91
4   ELECTRODE ASSEMBLY
Riello part no. 20083820		 P.O.A.
6 Part number 3008861, NOZZLE HOLDER NOZZLE HOLDER
Riello part no. 3008861		 £14.16
7 Part number 3008862, COLLAR COLLAR
Riello part no. 3008862		 £40.98
8 Part number 3008794, HIGH VOLTAGE LEAD (6 PCS) HIGH VOLTAGE LEAD (6 PCS)
Riello part no. 3008794		 £11.02
9 Part number 3008647, AIR DAMPER ASSEMBLY AIR DAMPER ASSEMBLY
Riello part no. 3008647		 £76.11
10 Part number 3005708, FAN FAN
Riello part no. 3005708		 £19.64
11 Part number 3007541, PHOTO CELL PHOTO CELL
Riello part no. 3007541		 £18.50
12 Part number 20071576, CAPACITOR CAPACITOR
Riello part no. 20071576		 £28.87
12 Part number 3002837, NOW USE 20071576 CAPACITOR NOW USE 20071576 CAPACITOR
Riello part no. 3002837
13 Part number 3008878, SEAL KIT SEAL KIT
Riello part no. 3008878		 £8.97
14 Part number 3007871, NEEDLE VALVE NEEDLE VALVE
Riello part no. 3007871		 £25.98
15 Part number 20032135, PRESSURE REGULATOR PRESSURE REGULATOR
Riello part no. 20032135		 £4.66
16 Part number 3008875, ELECTRODE CLAMP ELECTRODE CLAMP
Riello part no. 3008875		 £7.81
17 Part number 20030953, RIELLO - OIL PUMP RIELLO - OIL PUMP
Riello part no. 20030953		 £119.54
18 Part number 3007175, O ring (10 pcs) O RING (10 PCS)
Riello part no. 3007175		 £15.22
19 Part number 3020436, PUMP FILTER 3020436 RDB 3008653 PUMP FILTER 3020436 RDB 3008653
Riello part no. 3020436		 £8.00
20 Part number 3003602, CONNECTOR (G5BF) CONNECTOR (G5BF)
Riello part no. 3003602		 £4.22
21 Part number 20022601, Oil Hose Line 3/8" Angled Male 3/8" OIL HOSE LINE 3/8" ANGLED MALE 3/8"
Riello part no. 20022601		 £17.80
21 Part number 3005720, NOW USE 20022601 FLEXIBLE PIPE NOW USE 20022601 FLEXIBLE PIPE
Riello part no. 3005720
22 Part number 3008644, TUBE TUBE
Riello part no. 3008644		 £33.14
23 Part number 3008876, PRESSURE GAUGE EXTENSION (RDB) PRESSURE GAUGE EXTENSION (RDB)
Riello part no. 3008876		 £14.26
24 Part number 3000443, COUPLING (10PCS) COUPLING (10PCS)
Riello part no. 3000443		 £7.40
25 Part number 3008648, COIL COIL
Riello part no. 3008648		 £20.09
26 Part number 3002836, NOW USE 20071577 RDB MOTOR C/W CAPACITOR NOW USE 20071577 RDB MOTOR C/W CAPACITOR
Riello part no. 3002836
26 Part number 20071577, Motor C/W Capacitor MOTOR C/W CAPACITOR
Riello part no. 20071577		 £118.14
27 Part number 3008649, PROTECTION PROTECTION
Riello part no. 3008649		 £3.15
28 Part number 3008652, CONTROL BOX 535 SE/LD CONTROL BOX 535 SE/LD
Riello part no. 3008652		 £119.35
29 Part number 3008851, H T LEADS ( WAS 3008877) H T LEADS ( WAS 3008877)
Riello part no. 3008851		 £7.00
30 Part number 3008879, COVER COVER
Riello part no. 3008879		 £37.32
31   4 PIN PLUG
Riello part no. 20083824		 P.O.A.
32   4 POLE SOCKET
Riello part no. 3007417		 £21.99
