RIELLO
RIELLO 40 GS20D TL 20033973 (TYPE 577T1) - (Exploded View)
Appliance Code: 20033973

Appliance Diagram

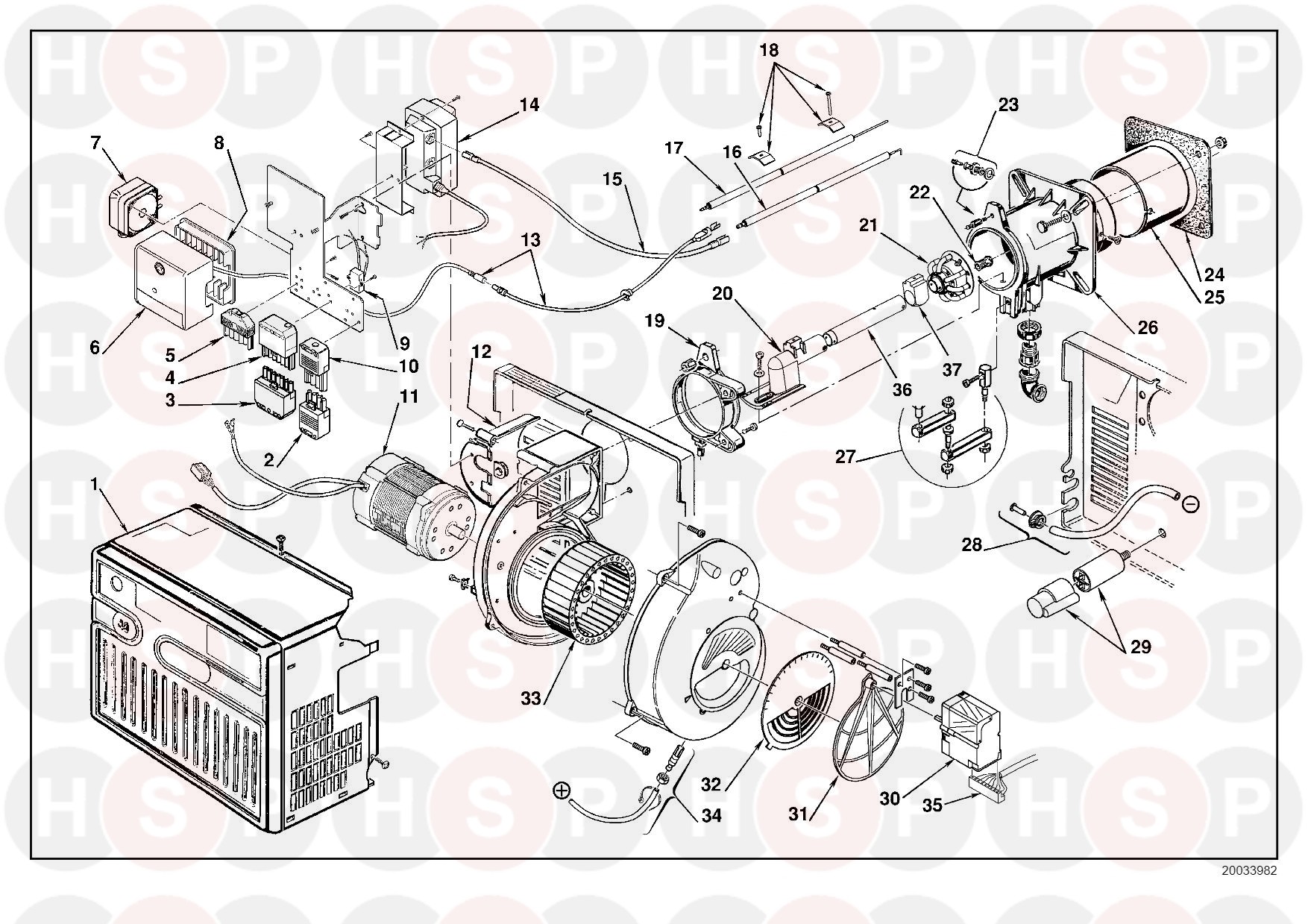

Exploded View diagram for Riello Riello 40 GS20D TL 20033973 (Type 577T1)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   COVER
Riello part no. 3002637		 £110.21
2 Part number 3006957, PLUG PLUG
Riello part no. 3006957		 £10.95
3 Part number 3006937, PLUG - 7 PIN - MALE PLUG - 7 PIN - MALE
Riello part no. 3006937		 £7.19
4 Part number 3006938, SOCKET 7 PIN SOCKET 7 PIN
Riello part no. 3006938		 £39.24
5 Part number 3007425, 6 POLE BLACK SOCKET 6 POLE BLACK SOCKET
Riello part no. 3007425		 £11.82
6 Part number 3013073, CONTROL BOX RMG 88 62 A2 CONTROL BOX RMG 88 62 A2
Riello part no. 3013073		 £185.15
7 Part number 3007444, AIR PRESSURE SW (REPLACES 8016 AIR PRESSURE SW (REPLACES 8016
Riello part no. 3007444		 £82.16
8 Part number 3003784, CONTROL BOX BASE (RS AND RL) CONTROL BOX BASE (RS AND RL)
Riello part no. 3003784		 £20.91
9 Part number 3002574, ELECTRICAL FILTER ELECTRICAL FILTER
Riello part no. 3002574		 £30.01
10 Part number 3006949, SOCKET 4 PIN SOCKET 4 PIN
Riello part no. 3006949		 £14.99
11 Part number 3008972, MOTOR FOR GS20/M MOTOR FOR GS20/M
Riello part no. 3008972		 £141.94
12 Part number 3007362, COVER GS20D COVER GS20D
Riello part no. 3007362		 £7.36
13 Part number 3008453, H T LEAD CE GS10/20 (X2) H T LEAD CE GS10/20 (X2)
Riello part no. 3008453		 £47.77
14 Part number 3012159, TRANSFORMER TRANSFORMER
Riello part no. 3012159		 £88.15
15 Part number 3002575, H T LEAD (5 PCS) H T LEAD (5 PCS)
Riello part no. 3002575		 £24.44
16   EXT ELECTRODE FOR GS20
Riello part no. 3006962		 £28.08
17   EXTENDED PROBE
Riello part no. 3006961		 £25.06
18 Part number 3003409, U BOLT (10PCS) U BOLT (10PCS)
Riello part no. 3003409		 £22.36
19 Part number 3006689, COLLAR COLLAR
Riello part no. 3006689		 £17.25
20   ELBOW
Riello part no. 3006697		 £31.11
21 Part number 3006700, DISTRIBUTOR DISTRIBUTOR
Riello part no. 3006700		 £51.71
22   DIFFUSER/GAS NOZZLE
Riello part no. 3006703		 £9.63
23   TEST POINT
Riello part no. 3005447		 £10.17
24 Part number 3006710, GASKET GASKET
Riello part no. 3006710		 £7.90
25 Part number 3006694, END CONE END CONE
Riello part no. 3006694		 £31.98
26   MANIFOLD
Riello part no. 3006692		 £93.70
27   HINGE UNIT
Riello part no. 3000870		 £23.42
28   PRESSURE GAUGE
Riello part no. 3008886		 £4.02
29 Part number 3008960, CONDENSER CONDENSER
Riello part no. 3008960		 £27.63
30 Part number 3002332, SERVO MOTOR SERVO MOTOR
Riello part no. 3002332		 £379.71
31   AIR DAMPER
Riello part no. 3002341		 £33.76
32   AIR DAMPER
Riello part no. 3002342		 £18.05
33 Part number 3005799, FAN FAN
Riello part no. 3005799		 £38.68
34 Part number 3006997, CONNECTION & TUBE FS5 CONNECTION & TUBE FS5
Riello part no. 3006997		 £14.01
35   SERVO MOTOR CONNECTION
Riello part no. 3020139		 P.O.A.
36   TUBE
Riello part no. 3007313		 P.O.A.
37   SUPPORT
Riello part no. 3007314		 P.O.A.
