SIME
PLANET DEWY 90 - (Boiler Assembly)
Appliance Code: 47-719-10

Appliance Diagram


Boiler Assembly diagram for Sime Planet Dewy 90Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  COMPLETE MAIN EXCHANGER (FROM SERIAL NO 32/03/931948)
Sime part no. 5188350		 P.O.A.
  COMPLETE CONTROL PANEL
Sime part no. 5188404		 £614.60
  COMPLETE CONTROL PANEL (FROM SERIAL NO 32/03/931948)
Sime part no. 5188416		 P.O.A.
  NOW USE 6118150A SQUARE BAYONET JOINT
Sime part no. 6118152
Part number 6127210, MAIN CABLE L=2000 MAIN CABLE L=2000
Sime part no. 6127210		 £7.13
  IGNITION LEAD L=780
Sime part no. 6186537		 £8.58
  LEAD - REPLACES 6186595
Sime part no. 6186596		 £8.56
Part number 6233506, FUSE T1,6A 250V FUSE T1,6A 250V
Sime part no. 6233506		 £1.62
  FUSE 160M A 250V
Sime part no. 6233511		 £1.32
  3 WAY JUNCTION
Sime part no. 6247701		 £5.69
  6 POLE PCB CABLE CONNECTOR
Sime part no. 6260971		 £5.80
  8 POLE FEMALE CABLE CONNECTOR
Sime part no. 6260993		 £12.83
  6 POLE FEMALE CABLE CONNECTOR
Sime part no. 6260994		 £4.63
  14 POLE FEMALE CABLE CONNECTOR
Sime part no. 6260995		 £17.74
  4 POLE FEMALE CABLE CONNECTOR
Sime part no. 6260996		 £17.49
  7 POLE FEMALE CABLE CONNECTOR
Sime part no. 6260997		 £17.70
  3 POLE FEMALE CABLE CONNECTOR
Sime part no. 6260999		 £9.99
  4 POLE MAIN PCB CABLE CONNECTOR
Sime part no. 6278601		 £9.99
  3 POLE FEMALE CABLE CONNECTOR
Sime part no. 6278635		 £5.80
  14 POLE FEMALE CABLE CONNECTOR
Sime part no. 6278665		 P.O.A.
  SQUARE BAYONET FITTING WAS 6118152
Sime part no. 6118150A		 £16.98
1   SEALED CHAMBER REAR PANEL
Sime part no. 6266031		 £50.75
1   SEALED CHAMBER REAR PANEL (FROM SERIAL NO 32/03/931948)
Sime part no. 6266035		 P.O.A.
2   SEALED CHAMBER SIDE PANEL
Sime part no. 6266120		 £20.10
3   RIGHT HAND SIDE FRAME PART
Sime part no. 6138531		 £24.73
4   LEFT HAND SIDE FRAME PART
Sime part no. 6138631		 £24.73
5   FRAME ASSEMBLY LOWER SIDE
Sime part no. 6138860		 £8.12
6 Part number 6277201, WATER TRAP WATER TRAP
Sime part no. 6277201		 £21.75
7 Part number 2013302, FASTENER FOR SELF TAPPING SCREW FASTENER FOR SELF TAPPING SCREW
Sime part no. 2013302		 £0.83
8   3 WAY JUNCTION WITH PRESSURE TESTER
Sime part no. 6280500		 £2.84
9 Part number 6146303, BRASS NUT 1/8 BRASS NUT 1/8
Sime part no. 6146303		 £1.62
10   SMOKE PRESSURE SWITCH BRACKET
Sime part no. 6229101		 £4.63
11 Part number 6225707, AIR PRESSURE SWITCH AIR PRESSURE SWITCH
Sime part no. 6225707		 £53.11
12   CONDENSATION DRAINAGE PIPE
Sime part no. 6277300		 £53.55
12   CONDENSATE DRAINAGE PIPE (FROM SERIAL NO 32/03/931948)
Sime part no. 6277303		 P.O.A.
13   UPSTREAM SIDE MIXER PART
Sime part no. 6274303		 £46.40
14   O-RING 156
Sime part no. 6226427
15   DOWNSTREAM SIDE MIXER PART
Sime part no. 6274302		 £52.90
16   BURNER NOZZLE 6,50 DIA NATURAL GAS
Sime part no. 6274100		 £14.62
17   O-RING 115
Sime part no. 6226428		 £1.52
18 Part number 6174804, GASKET FOR FAN FLANGE GASKET FOR FAN FLANGE
Sime part no. 6174804		 £3.23
19   GASKET FOR DOWNSTREAM SIDE MIX
Sime part no. 6174807		 £1.62
20 Part number 6261401, FAN RG130/800-3612 FAN RG130/800-3612
Sime part no. 6261401		 £318.39
25   TEFLON GASKET 17 X 24 X 2
Sime part no. 2030240		 £0.83
26   PIPE CONNECTING GAS VALVE MIXER
Sime part no. 6277401		 £14.22
27 Part number 2030227, NOW USE 2030255 GASKET 12 X 18 X 2 NOW USE 2030255 GASKET 12 X 18 X 2
Sime part no. 2030227
27 Part number 2030255, GASKET GASKET
Sime part no. 2030255		 £1.56
28 Part number 6146301, BRASS NUT 1/2 BRASS NUT 1/2
Sime part no. 6146301		 £2.84
31 Part number 2030228, GASKET 17 X 24 X 2 - REPS 2030212 GASKET 17 X 24 X 2 - REPS 2030212
Sime part no. 2030228		 £1.56
33   PIPE CONNECTING AIR VENT
Sime part no. 6277800		 £17.51
34 Part number 2030226, GASKET REPLACES 2030243 and 2030216 GASKET REPLACES 2030243 AND 2030216
Sime part no. 2030226		 £0.83
35 Part number 6017211, MANUAL AIR VENT 1/4 MANUAL AIR VENT 1/4
Sime part no. 6017211		 £14.06
36   EXPANSION VESSEL 1.8
Sime part no. 5112210		 £76.44
37   D.H.W. INLET/OUTLET MANIFOLD
Sime part no. 6265700		 £26.99
38 Part number 6231351, PLUNGED SENSOR PLUNGED SENSOR
Sime part no. 6231351		 £16.02
39 Part number 6022010, SENSOR GASKET SENSOR GASKET
Sime part no. 6022010		 £1.62
40 Part number 6265801, C.H. FLOW/RETURN MANIFOLD C.H. FLOW/RETURN MANIFOLD
Sime part no. 6265801
41   PLUG 1/4"
Sime part no. 6147401		 £2.84
42 Part number 6226411, O-RING 2015 O-RING 2015
Sime part no. 6226411		 £1.16
43 Part number 6040201, PRESSURE RELIEF VALVE PRESSURE RELIEF VALVE
Sime part no. 6040201		 £23.89
44 Part number 6226417, O-RING 3043 O-RING 3043
Sime part no. 6226417		 £1.19
45 Part number 6102806, DIVERTER VALVE DIVERTER VALVE
Sime part no. 6102806		 £123.59
46   SCREW T.C.B. M4 X 8
Sime part no. 2000716		 £0.83
47   RESTRICTOR LEVER
Sime part no. 6275900		 £1.62
48   TIME PROGRAMMER
Sime part no. 6197708		 £65.62
50 Part number 6265600, PLATE TYPE HEAT EXCHANGER REP 6265602 PLATE TYPE HEAT EXCHANGER REP 6265602
Sime part no. 6265600		 £110.28
51   D.H.W. EXCHANGER -C.H. MANIFOLD
Sime part no. 6264900		 £20.32
52 Part number 6226412, O-RING 13.1mm DIA 3068 O-RING 13.1MM DIA 3068
Sime part no. 6226412		 £1.43
53   D.H.W. EXCHANGER - D.H.W. MANIFOLD
Sime part no. 6265000		 £14.62

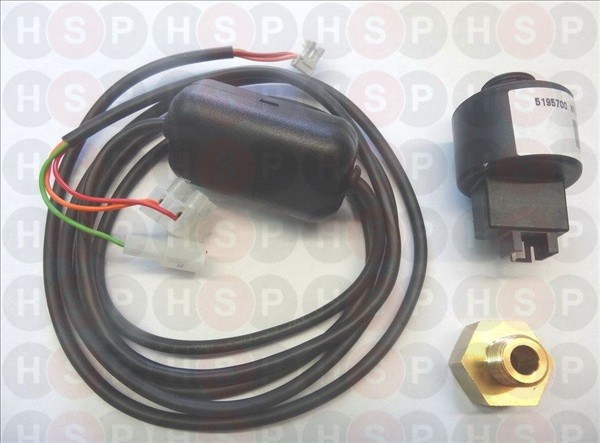

54 Part number 5195700, TRANSDUCER KIT REPLACES 6273681 see memo (UP TO SERIAL NO 3703301570) TRANSDUCER KIT REPLACES 6273681 SEE MEMO (UP TO SERIAL NO 3703301570)
Sime part no. 5195700		 £164.92
54 Part number 6273601, NOW USE 5195700 WATER PRESSURE TRANSDUCER NOW USE 5195700 WATER PRESSURE TRANSDUCER
Sime part no. 6273601
55 Part number 6226403, O-RING 2031 O-RING 2031
Sime part no. 6226403		 £1.62
56 Part number 6124806, NOW USE 6124822 GRUNDFOS CIRCULATING PUMP UPS NOW USE 6124822 GRUNDFOS CIRCULATING PUMP UPS
Sime part no. 6124806
56 Part number 6124822, PUMP WAS 6124806 PUMP WAS 6124806
Sime part no. 6124822		 £203.34
57 Part number 6013100, AUTOMATIC AIR VENT 3/8 AUTOMATIC AIR VENT 3/8
Sime part no. 6013100		 £17.49
58 Part number 2030229, GASKET 22 X 30 X2 GASKET 22 X 30 X2
Sime part no. 2030229		 £1.56
59   PIPE CONNECTING EXPANSION VESSEL
Sime part no. 6227627		 £8.12
60   PIPE CONNECTING PUMP EXCHANGER
Sime part no. 6277901		 £12.83
61   PIPE CONN. FLOW SWITCH DIVERTER
Sime part no. 6277701		 £15.43
62 Part number 6149304, FLOW WATER SWITCH FLOW WATER SWITCH
Sime part no. 6149304		 £106.65
63 Part number 6146701, 100 C SAFETY STAT 100 C SAFETY STAT
Sime part no. 6146701		 £15.66
64 Part number 6243809, HONEYWELL GAS VALVE VK811 HONEYWELL GAS VALVE VK811
Sime part no. 6243809		 £259.60
65   PRESSURE TEST POINT M5
Sime part no. 6235802		 £2.63
66   GAS INLET PIPE
Sime part no. 6226846		 £14.22
67   FLANGE FOR GAS VALVE
Sime part no. 6163104		 £12.83
68 Part number 6162401, SQUARE GASKET SQUARE GASKET
Sime part no. 6162401		 £0.83
69   O-RING 130 DIA 22,22X2,62 XP70
Sime part no. 6226407		 £1.16
70   SIRAL COCK 1/2
Sime part no. 6216605		 £16.07
71   PIPE CONN. GAS VALVE SEALED CH
Sime part no. 6277501		 £14.24
72   PRESSURE TEST NIPPLE 1/8
Sime part no. 6023100		 £3.23
73   OBSOLETE CONTROL PANEL R.H. SIDE SUPPORT
Sime part no. 6250010
74   OBSOLETE CONTROL PANEL L.H. SIDE SUPPORT
Sime part no. 6250110
75   OBSOLETE LOWER CLOSING PANEL
Sime part no. 6219571		 £124.52
76   CONTROL PANEL
Sime part no. 6272900		 £28.89
77   GUIDELIGHT - 12 WAYS OUT
Sime part no. 6273200		 £2.84
78   GUIDELIGHT - 6 WAYS OUT
Sime part no. 6273201		 £2.84
79 Part number 6201501, TRIMMER SPINDLE 5MM TRIMMER SPINDLE 5MM
Sime part no. 6201501		 £1.62
80 Part number 6201502, TRIMMER SPINDLE 6MM TRIMMER SPINDLE 6MM
Sime part no. 6201502		 £1.62
81   MAIN PCB WITH IGNITION
Sime part no. 6230681		 £404.95
82 Part number 6201503, SELECTOR SPINDLE SELECTOR SPINDLE
Sime part no. 6201503		 £2.84
83   TRANSFORMER 230/24V
Sime part no. 6240702		 £50.92
84   EARTH FASTON
Sime part no. 2211610		 £3.23
85 Part number 6260501, FAN DRIVER PCB FAN DRIVER PCB
Sime part no. 6260501		 £174.53
86   SPACER H=6.4
Sime part no. 2213230		 £0.94
87   TRIMMER SPINDLE 5MM L=34
Sime part no. 6201504		 £1.62
88   CONTROL PANEL PROTECTING COVER
Sime part no. 6273000		 £21.74
89   ROOM STAT COVER
Sime part no. 6273100		 £3.23
90 Part number 6230921, KNOB 40MM KNOB 40MM
Sime part no. 6230921		 £4.43
91 Part number 6273300, OBSOLETE FLAP DOOR OBSOLETE FLAP DOOR
Sime part no. 6273300
92   SEALED CHAMBER FRONT PANEL
Sime part no. 6228890		 £42.94
93   PRESSURE RELIEF VALVE DRAIN PIPE
Sime part no. 6157604		 £9.00
94   LOCKING NUT FOR PIPE 15
Sime part no. 6168401		 £5.76
95   OLIVE FOR PIPE 15MM
Sime part no. 6100202		 £2.84
96   CASING RIGHT HAND SIDE PANEL
Sime part no. 6271250		 £16.53
97   CASING LEFT HAND SIDE PANEL
Sime part no. 6271150		 £20.32
98 Part number 2003000, PIN M5 ZN PIN M5 ZN
Sime part no. 2003000		 £2.35
99   CASING FRONT PANEL
Sime part no. 6273515		 £52.80
100 Part number 2015000, SPRING CLIP MO/A8 SPRING CLIP MO/A8
Sime part no. 2015000		 £1.91
101 Part number 6131401, NOW USE 6131402 MICROSWITCH FOR FLOWMETER NOW USE 6131402 MICROSWITCH FOR FLOWMETER
Sime part no. 6131401
101 Part number 6131402, FLOW MICROSWITCH SUPERCEDES 6131401/6131403 FLOW MICROSWITCH SUPERCEDES 6131401/6131403
Sime part no. 6131402		 £9.99
102   CAP FOR 3 WAY JUNCTION
Sime part no. 6280550		 £0.83
123 Part number 6001210, PEEPHOLE PEEPHOLE
Sime part no. 6001210		 £8.82
124   GASKET FOR CHAMBER
Sime part no. 5192203		 £22.88
125   QUARTER BEND 1/2X15
Sime part no. 6142330		 £12.73
126 Part number 6177504, GAS COCK 1/2 X 1/2 GAS COCK 1/2 X 1/2
Sime part no. 6177504		 £27.48
127 Part number 6177505, BALL COCK 3/4 X 22 BALL COCK 3/4 X 22
Sime part no. 6177505		 £24.03
128 Part number 6177506, BALL COCK 1/2X 15 BALL COCK 1/2X 15
Sime part no. 6177506		 £24.21
