VAILLANT
COMBI COMPACT FF VCW 242 E 1988-1995 - (08 Connection Parts)
Appliance Code: 47-044-13

Appliance Diagram

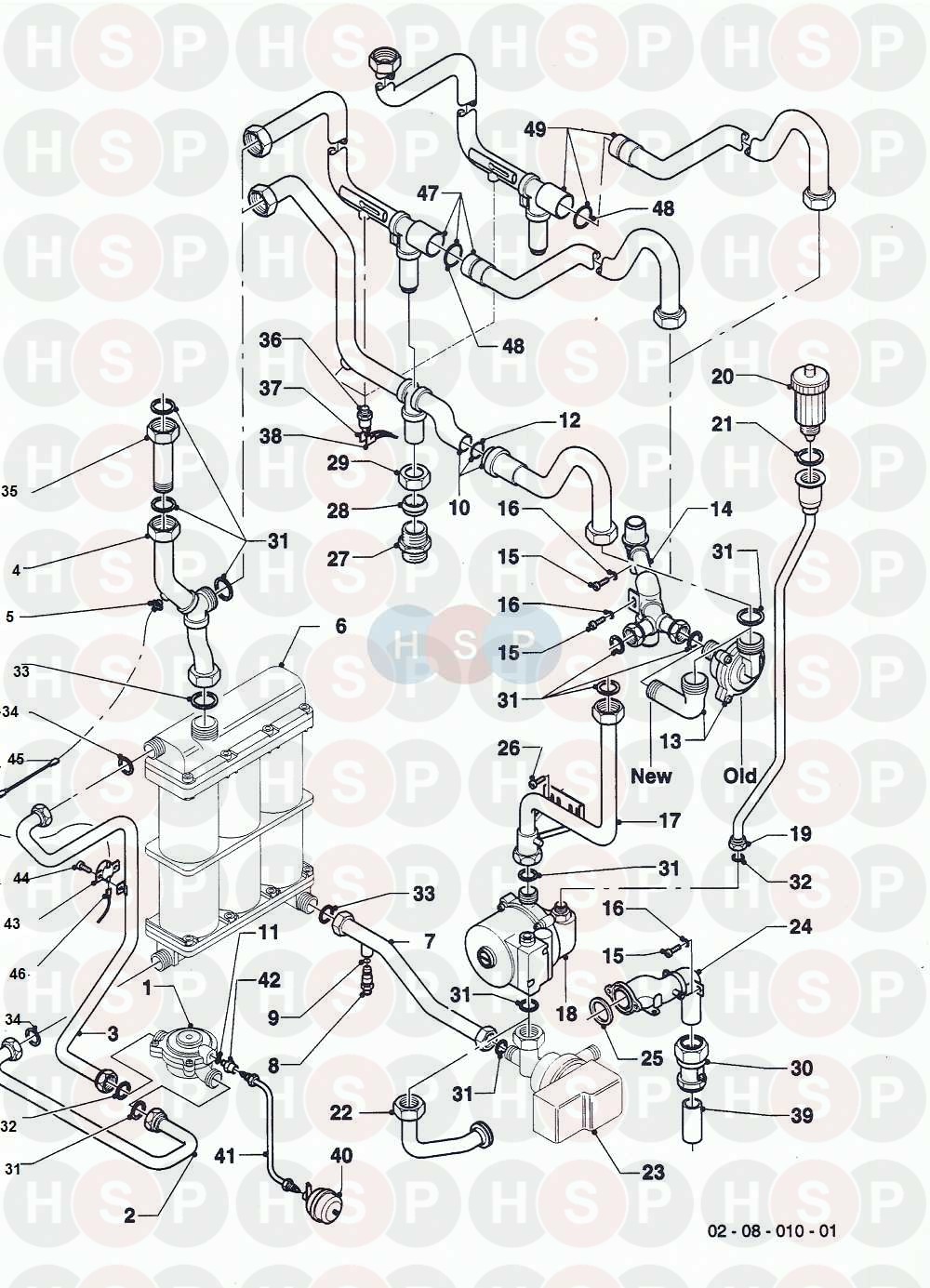

08 Connection Parts diagram for Vaillant Combi Compact FF VCW 242 E 1988-1995Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 083746, cold water tube COLD WATER TUBE
Vaillant part no. 083746		 £22.79
3   WARM WATER CONNECTION TUBE
Vaillant part no. 081415		 £9.13
4 Part number 089156, connection tube CONNECTION TUBE
Vaillant part no. 089156
5 Part number 252805, Sensor - NTC SENSOR - NTC
Vaillant part no. 252805		 £23.36
7 Part number 081315, connection tube CONNECTION TUBE
Vaillant part no. 081315		 £9.76
8 Part number 140015, Screw - De-aeration SCREW - DE-AERATION
Vaillant part no. 140015		 £6.86
9 Part number 981166, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981166		 £6.86

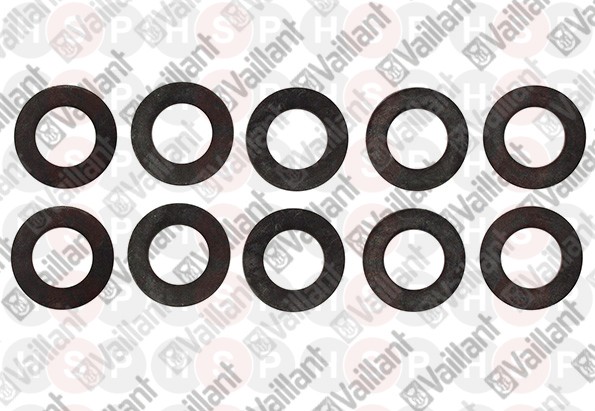

11 Part number 981159, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981159		 £6.86
12 Part number 981176, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981176		 £8.15
13 Part number 150217, by-pass valve VC 282 E 3.5 M BY-PASS VALVE VC 282 E 3.5 M
Vaillant part no. 150217		 £12.81
13 Part number 150218, by-pass valve 1.7 M SPECIAL BY-PASS VALVE 1.7 M SPECIAL
Vaillant part no. 150218		 £12.81
13 Part number 150216, By-pass valve BY-PASS VALVE
Vaillant part no. 150216
14 Part number 081058, connection CONNECTION
Vaillant part no. 081058		 £28.05
15 Part number 070361, hexagonal screw HEXAGONAL SCREW
Vaillant part no. 070361		 £6.86
16   SERRATED LOCK WASHER
Vaillant part no. 111458		 £3.91
17 Part number 089155, connection tube CONNECTION TUBE
Vaillant part no. 089155		 £15.31
18   PUMP, HIGH-EFFICIENCY (IF THIS IS THE REPLACEMENT PART THEN PART NUMBER 0010030685 CABLE IS ALSO REQUIRED)
Vaillant part no. 0010030636		 £354.84
18   PUMP, HIGH-EFFICIENCY
Vaillant part no. 0010032797		 £256.24
18 Part number 161106, NOW USE 0010032797 Pump NOW USE 0010032797 PUMP
Vaillant part no. 161106
18 Part number 161107, NOW USE 0010030636 Pump NOW USE 0010030636 PUMP
Vaillant part no. 161107
19 Part number 081317, connection tube CONNECTION TUBE
Vaillant part no. 081317
20 Part number 061707, automatic de-aerator AUTOMATIC DE-AERATOR
Vaillant part no. 061707		 £20.36
21 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.24
23 Part number 012684, diverter valve DIVERTER VALVE
Vaillant part no. 012684
24 Part number 082556, gas connection VCW 282 E GAS CONNECTION VCW 282 E
Vaillant part no. 082556		 £17.89
24 Part number 082557, gas connection VC 182 E VC 242 E GAS CONNECTION VC 182 E VC 242 E
Vaillant part no. 082557		 £17.89
25 Part number 982499, Gasket GASKET
Vaillant part no. 982499		 £5.13
26 Part number 235727, screw SCREW
Vaillant part no. 235727		 £5.13
27 Part number 080074, Compression fitting 3/4 inch COMPRESSION FITTING 3/4 INCH
Vaillant part no. 080074		 £9.77
28 Part number 080184, Compression ring, 20 mm COMPRESSION RING, 20 MM
Vaillant part no. 080184		 £6.86
29 Part number 080177, nut NUT
Vaillant part no. 080177		 £6.86
30 Part number 082741, gas shut-off valve VC221T H, 110T H VC 182 E H, VC 242 E H, VC 282 E H GAS SHUT-OFF VALVE VC221T H, 110T H VC 182 E H, VC 242 E H, VC 282 E H
Vaillant part no. 082741
30   OBSOLETE GAS SHUT-OFF VALVE
Vaillant part no. 082745
31 Part number 981152, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981152		 £7.24
32 Part number 981161, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981161		 £6.86
33 Part number 981157, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981157		 £6.86
34 Part number 981156, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981156		 £5.13
36 Part number 251822, safety switch SAFETY SWITCH
Vaillant part no. 251822
37   CABLE, CPL.
Vaillant part no. 255730		 £6.98
39   OBSOLETE TUBE
Vaillant part no. 137439
42 Part number 136313, OBSOLETE nipple OBSOLETE NIPPLE
Vaillant part no. 136313
43 Part number 251852, safety switch SAFETY SWITCH
Vaillant part no. 251852
44 Part number 950119, OBSOLETE screw OBSOLETE SCREW
Vaillant part no. 950119
45 Part number 255726, cable, cpl. NTC CABLE, CPL. NTC
Vaillant part no. 255726		 £3.91
46   OBSOLETE CONNECTION LINE
Vaillant part no. 089569
47 Part number 089159, connection tube CONNECTION TUBE
Vaillant part no. 089159		 £32.54
48 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.24
