VAILLANT
ECOMAX 635 VU (CONDENSING SYSTEM) 2006-2008 - (04 Burner)
Appliance Code: 20-062-00

Appliance Diagram


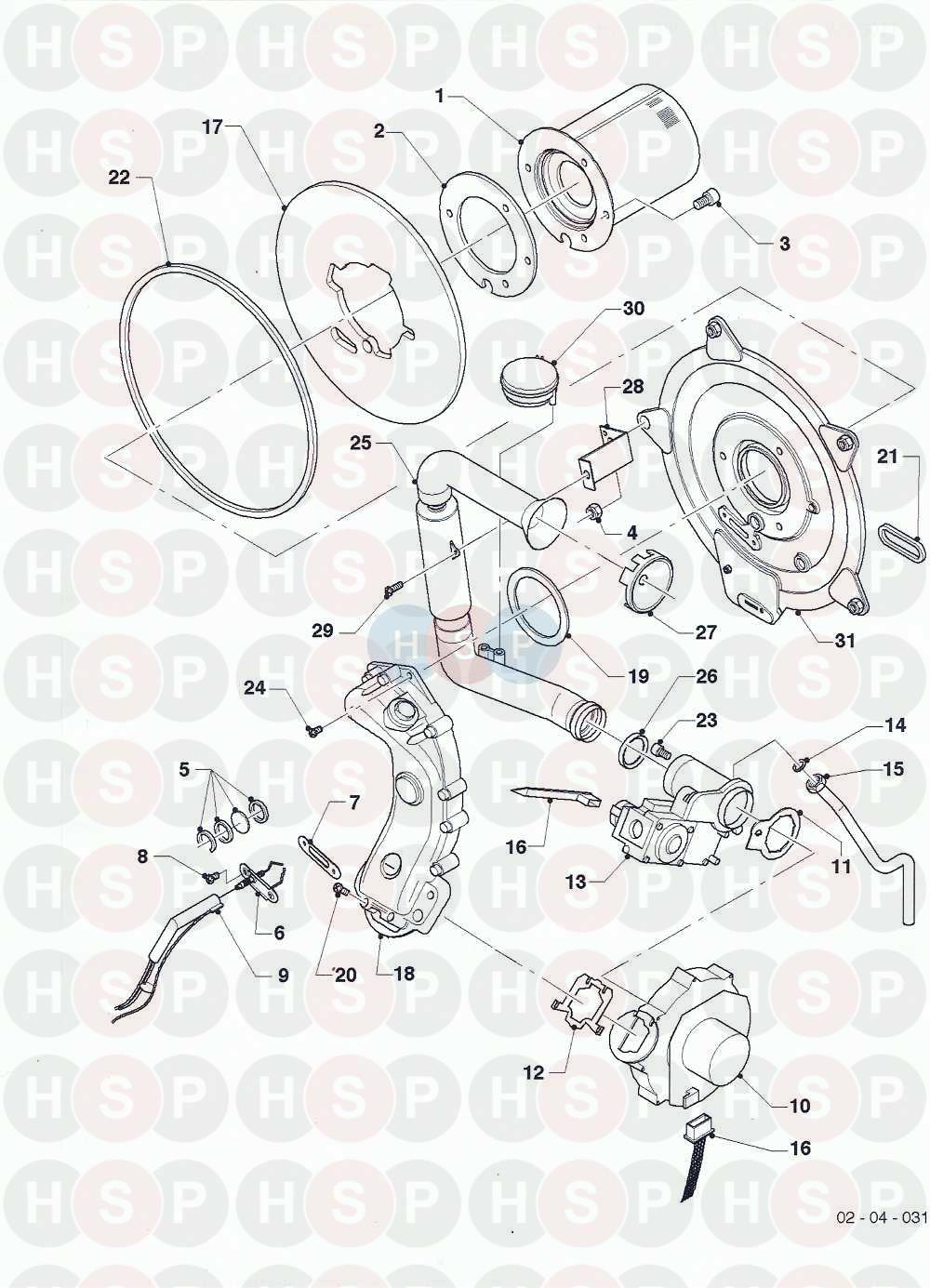

04 Burner diagram for Vaillant Ecomax 635 VU (Condensing System) 2006-2008Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 050430, Burner BURNER
Vaillant part no. 050430
£97.67
2 Part number 981103, Gasket burner GASKET BURNER
Vaillant part no. 981103
£6.63
3 Part number 105900, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 105900
£6.28
4 Part number 0020026537, Nut, M6 (PK5) NUT, M6 (PK5)
Vaillant part no. 0020026537
£6.28
5 Part number 161245, inspection glass INSPECTION GLASS
Vaillant part no. 161245
£6.28
6 Part number 090709, Electrode ELECTRODE
Vaillant part no. 090709
£21.19
7 Part number 981330, gasket electrode GASKET ELECTRODE
Vaillant part no. 981330
£5.86
8 Part number 118883, Flat head screw ISO 7045 FLAT HEAD SCREW ISO 7045
Vaillant part no. 118883

9 Part number 091551, ignition wire IGNITION WIRE
Vaillant part no. 091551
£16.92
10 Part number 190235, Fan FAN
Vaillant part no. 190235
£231.91
11 Part number 981104, Gasket GASKET
Vaillant part no. 981104
£7.47
12 Part number 981045, Gasket GASKET
Vaillant part no. 981045
£6.28
14 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142
£6.63
15 Part number 123492, Gas connection tube GAS CONNECTION TUBE
Vaillant part no. 123492
£66.45
16 Part number 509127, cable tree CABLE TREE
Vaillant part no. 509127
£28.85
17 Part number 210734, insulation INSULATION
Vaillant part no. 210734
£27.48
18 Part number 116688, Air gas mixing tube AIR GAS MIXING TUBE
Vaillant part no. 116688
£46.52
20 Part number 105836, Cylinder screw, (kit 2 x 4) CYLINDER SCREW, (KIT 2 X 4)
Vaillant part no. 105836
£6.28
21 Part number 0020038679, Gasket kit GASKET KIT
Vaillant part no. 0020038679
£18.03
23 Part number 139247, screw SCREW
Vaillant part no. 139247
£6.28
24 Part number 118882, Flat head screw FLAT HEAD SCREW
Vaillant part no. 118882
£5.13
25 Part number 145850, Air inlet pipe AIR INLET PIPE
Vaillant part no. 145850
£41.27
26 Part number 981111, Gasket GASKET
Vaillant part no. 981111
£6.28
28 Part number 087195, NOW USE 0010048102 Bracket, Air Inlet Pipe NOW USE 0010048102 BRACKET, AIR INLET PIPE
Vaillant part no. 087195

28   RETAINER
Vaillant part no. 0010048102
£4.90
29 Part number 235756, Screw, tapping (ST 4,8x19) SCREW, TAPPING (ST 4,8X19)
Vaillant part no. 235756
£4.36
31 Part number 088134, flange FLANGE
Vaillant part no. 088134
£91.68
