VAILLANT
ECOMAX 828/2E VUW 286/2-C 2001-2007 - (12 Control Box)
Appliance Code: 47-044-17

Appliance Diagram

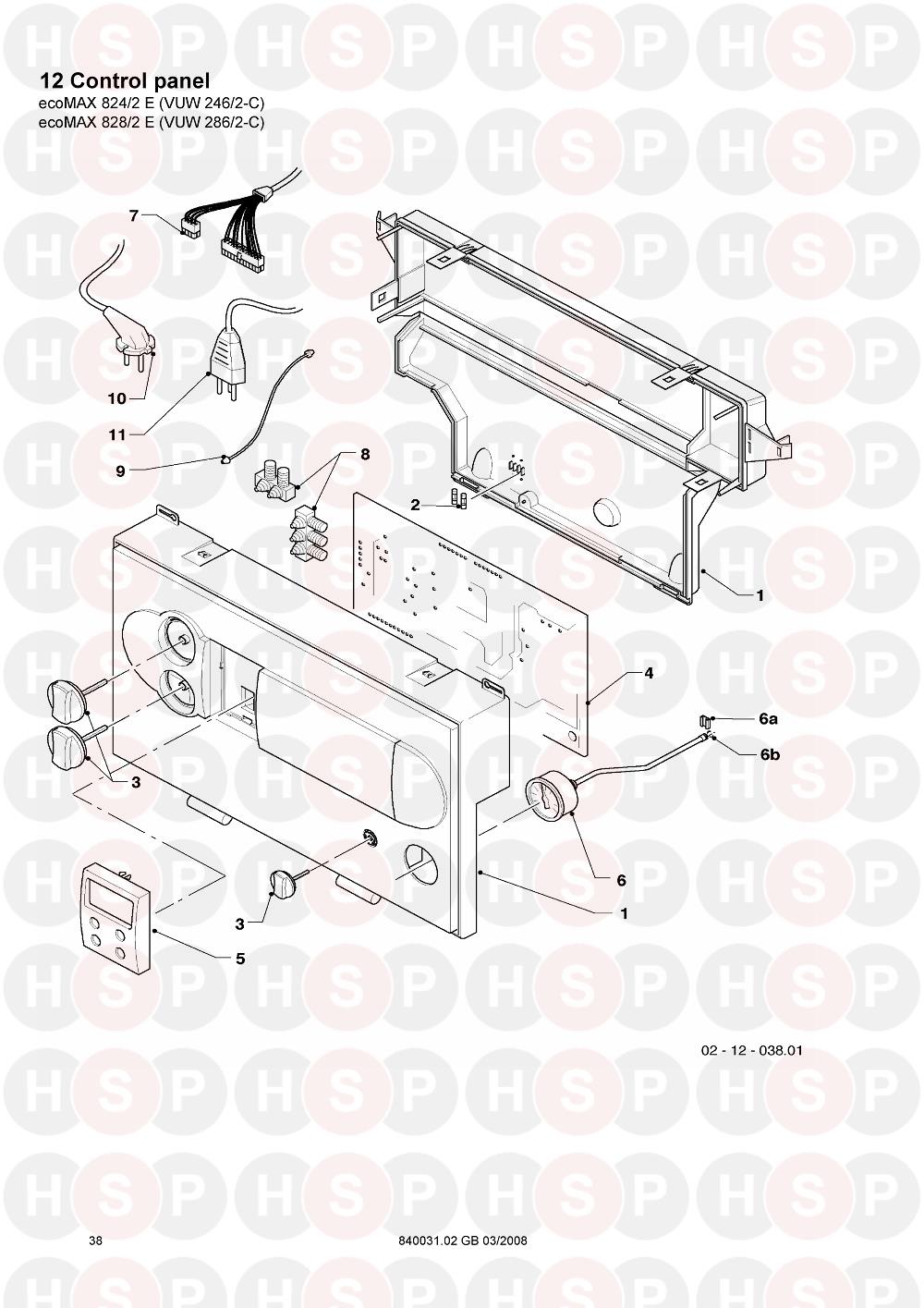

12 Control Box diagram for Vaillant Ecomax 828/2E VUW 286/2-C 2001-2007Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 295248, casing CASING
Vaillant part no. 295248
£89.06
2 Part number 251957, Fuse T4H (PK10) FUSE T4H (PK10)
Vaillant part no. 251957
£6.65
3 Part number 114288, Knobs, grey, kit of 3 KNOBS, GREY, KIT OF 3
Vaillant part no. 114288
£10.72
4 Part number 130826, Printed circuit board PRINTED CIRCUIT BOARD
Vaillant part no. 130826
£260.08
4 Part number 252629, plug PLUG
Vaillant part no. 252629
£10.67
5 Part number 130822, printed circuit with display (grey) PRINTED CIRCUIT WITH DISPLAY (GREY)
Vaillant part no. 130822
£42.46
6 Part number 101271, Pressure gauge PRESSURE GAUGE
Vaillant part no. 101271
£38.09
6A Part number 0020107709, Support SUPPORT
Vaillant part no. 0020107709
£6.28
6A Part number 085751, NOW USE 0020107709 pressure gauge clip NOW USE 0020107709 PRESSURE GAUGE CLIP
Vaillant part no. 085751

6B Part number 981155, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981155
£5.98
7 Part number 256137, cable tree CABLE TREE
Vaillant part no. 256137
£119.64
8 Part number 078533, cable fixation CABLE FIXATION
Vaillant part no. 078533
£7.84
9 Part number 078534, Cable fixing (PK2) CABLE FIXING (PK2)
Vaillant part no. 078534
£7.47
