VAILLANT
ECOTEC PLUS 938 VUI 286/5-5 R6 2017 ONWARDS - (08C Hydraulics VIH)
Appliance Code: 47-044-87 R6

Appliance Diagram


08C Hydraulics VIH diagram for Vaillant Ecotec Plus 938 VUI 286/5-5 R6 2017 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

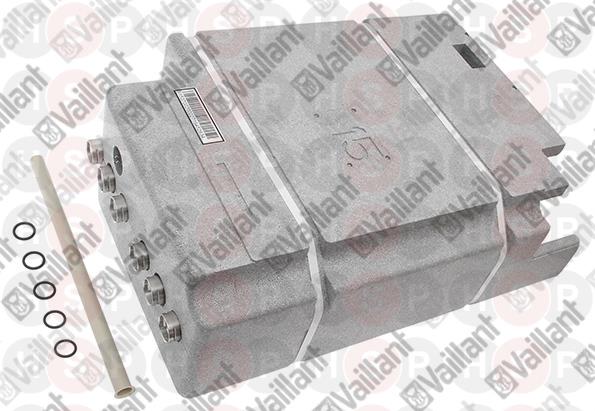

  CYLINDER TANK COMPLETE, VIH CL 15S
Vaillant part no. 0020268966		 £877.32
01 Part number 0020039781, Storage Water Heater STORAGE WATER HEATER
Vaillant part no. 0020039781		 £520.54
02 Part number 181081, expansion vessel 1 ltr. EXPANSION VESSEL 1 LTR.
Vaillant part no. 181081		 £104.27
03 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
04 Part number 0020039784, Pipe PIPE
Vaillant part no. 0020039784		 £19.49
05 Part number 0020039785, Pipe PIPE
Vaillant part no. 0020039785		 £36.39
06 Part number 190745, Pressure relief valve, 10 bar PRESSURE RELIEF VALVE, 10 BAR
Vaillant part no. 190745		 £18.86
07 Part number 178992, Clip, (PK10) CLIP, (PK10)
Vaillant part no. 178992		 £8.18
08 Part number 219622, Spring clamp (PK10) SPRING CLAMP (PK10)
Vaillant part no. 219622		 £9.49
10 Part number 193537, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 193537		 £9.48
11 Part number 193598, Nut, (PK4) NUT, (PK4)
Vaillant part no. 193598		 £6.66
12 Part number 0020039787, Pipe PIPE
Vaillant part no. 0020039787		 £25.09
13 Part number 0020039788, Pipe PIPE
Vaillant part no. 0020039788		 £30.57
14 Part number 0020039789, Pipe PIPE
Vaillant part no. 0020039789
15 Part number 179032, Connection piece CONNECTION PIECE
Vaillant part no. 179032		 £24.60
16 Part number 178992, Clip, (PK10) CLIP, (PK10)
Vaillant part no. 178992		 £8.18
17 Part number 178988, Flow sensor FLOW SENSOR
Vaillant part no. 178988		 £26.24
18 Part number 178966, clip CLIP
Vaillant part no. 178966		 £6.66
19 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.03
20 Part number 178991, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 178991		 £6.66
21 Part number 0020039790, Pipe PIPE
Vaillant part no. 0020039790		 £14.45
22 Part number 0020039791, Pipe PIPE
Vaillant part no. 0020039791		 £16.66
23 Part number 0020039792, Pipe PIPE
Vaillant part no. 0020039792		 £14.45
24 Part number 0020039793, NOW USE 0010037393 Pump NOW USE 0010037393 PUMP
Vaillant part no. 0020039793
24   PUMP
Vaillant part no. 0010037393		 £230.41
25 Part number 0020039794, Pipe PIPE
Vaillant part no. 0020039794		 £17.92
26   PRICE ON APPLICATION
Vaillant part no. 0000
27 Part number 0020111282, Printed circuit board PRINTED CIRCUIT BOARD
Vaillant part no. 0020111282		 £58.12
28 Part number 0020180999, Wiring harness WIRING HARNESS
Vaillant part no. 0020180999		 £44.39
29 Part number 0020068120, Sensor, NTC 19mm SENSOR, NTC 19MM
Vaillant part no. 0020068120		 £19.53
30 Part number 0020039796, Sensor - NTC (DHW outlet pipe) SENSOR - NTC (DHW OUTLET PIPE)
Vaillant part no. 0020039796		 £6.80
31 Part number 103429, Sensor NTC, DHW outlet pipe SENSOR NTC, DHW OUTLET PIPE
Vaillant part no. 103429		 £8.63
32 Part number 136376, NOW USE 0010047543 nipple NOW USE 0010047543 NIPPLE
Vaillant part no. 136376
32   NIPPLE
Vaillant part no. 0010047543		 £1.60
33 Part number 981140, Sealing ring, 3/4 (PK10) SEALING RING, 3/4 (PK10)
Vaillant part no. 981140		 £7.05
34 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
35 Part number 074514, Filter FILTER
Vaillant part no. 074514		 £6.66
36 Part number 011603, Limiter 14l/min LIMITER 14L/MIN
Vaillant part no. 011603		 £6.66
37 Part number 092002, Connection piece CONNECTION PIECE
Vaillant part no. 092002		 £6.66
41 Part number 0020138668, Tube (plastic) TUBE (PLASTIC)
Vaillant part no. 0020138668		 £11.56
42 Part number 0020175889, Support (pump) SUPPORT (PUMP)
Vaillant part no. 0020175889		 £19.38
43 Part number 0020107695, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020107695		 £6.66
44 Part number 0020234143, Manifold, (PK2) MANIFOLD, (PK2)
Vaillant part no. 0020234143		 £6.53
