VAILLANT
MAG-SINE 250/9 TZWFH - (Heat Exchanger)
Appliance Code: 52-044-11

Appliance Diagram


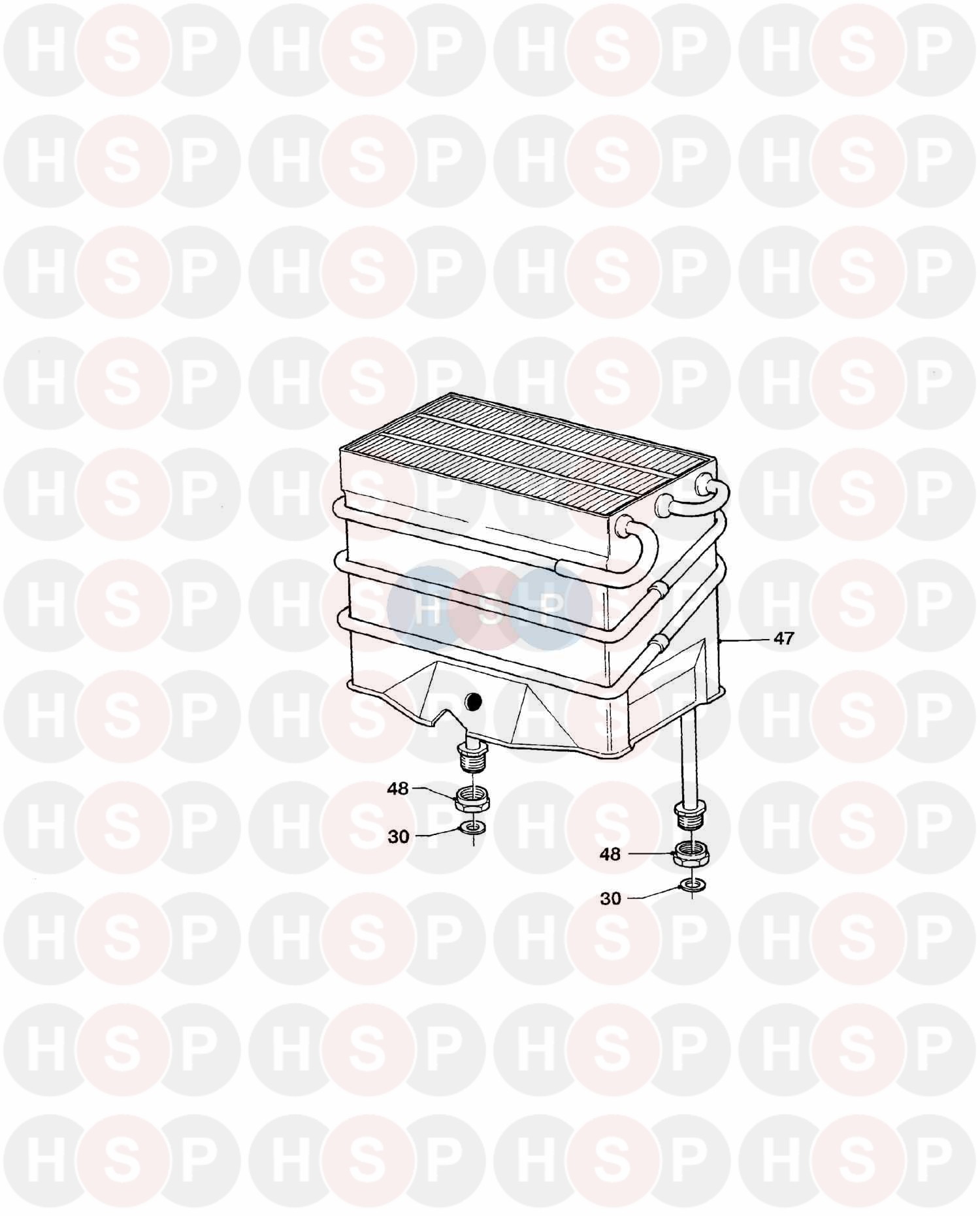

Heat Exchanger diagram for Vaillant Mag-Sine 250/9 TZWFHClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2 Part number 980902, packing ring PACKING RING
Vaillant part no. 980902		 £3.91
3 Part number 195044, OBSOLETE magneto housing OBSOLETE MAGNETO HOUSING
Vaillant part no. 195044
4 Part number 170327, magneto MAGNETO
Vaillant part no. 170327		 £15.31
5 Part number 982310, O-ring O-RING
Vaillant part no. 982310
6   OBSOLETE PACKING RING
Vaillant part no. 980916
8   OBSOLETE PACKING RING
Vaillant part no. 981624
9 Part number 091065, piezo ignition PIEZO IGNITION
Vaillant part no. 091065		 £12.45
9 Part number 91065, NOW USE 091065 piezo ignition NOW USE 091065 PIEZO IGNITION
Vaillant part no. 91065
10   THROTTLE GUIDE
Vaillant part no. 183501		 £17.89
11 Part number 982319, O-ring O-RING
Vaillant part no. 982319		 £5.13
12 Part number 118936, Cheese head screw KS/S CHEESE HEAD SCREW KS/S
Vaillant part no. 118936		 £5.13
13 Part number 981162, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981162		 £5.13
13 Part number 980212, NOW USE 981162 packing ring NOW USE 981162 PACKING RING
Vaillant part no. 980212
14 Part number 292211, binding ring BINDING RING
Vaillant part no. 292211
15 Part number 105812, cylinder screw CYLINDER SCREW
Vaillant part no. 105812		 £3.91
16 Part number 010347, Diaphragm DIAPHRAGM
Vaillant part no. 010347
16 Part number 10347, diaphragm, cpl. DIAPHRAGM, CPL.
Vaillant part no. 10347
17 Part number 0020028121, Water Filter WATER FILTER
Vaillant part no. 0020028121
17   WATER FILTER
Vaillant part no. 128516
18 Part number 012854, venturi VENTURI
Vaillant part no. 012854		 £5.13
18 Part number 12854, NOW USE 012854 VENTURI NOW USE 012854 VENTURI
Vaillant part no. 12854
19 Part number 012546, temperature selector TEMPERATURE SELECTOR
Vaillant part no. 012546
19 Part number 12546, temperature selector TEMPERATURE SELECTOR
Vaillant part no. 12546
20 Part number 981175, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981175
21 Part number 981159, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981159		 £6.86
22 Part number 010050, screw SCREW
Vaillant part no. 010050		 £6.86
22 Part number 10050, NOW USE 010050 SCREW NOW USE 010050 SCREW
Vaillant part no. 10050
23 Part number 012946, Water quantity regulator WATER QUANTITY REGULATOR
Vaillant part no. 012946		 £6.86
23 Part number 12946, NOW USE 012946 water quantity regulator, cpl. NOW USE 012946 WATER QUANTITY REGULATOR, CPL.
Vaillant part no. 12946
24 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.24
25 Part number 203037, OBSOLETE piston (red) OBSOLETE PISTON (RED)
Vaillant part no. 203037		 £3.91
26 Part number 982484, O-ring O-RING
Vaillant part no. 982484
27 Part number 060036, spring lock washer SPRING LOCK WASHER
Vaillant part no. 060036		 £3.91
27 Part number 60036, NOW USE 060036 spring lock washer NOW USE 060036 SPRING LOCK WASHER
Vaillant part no. 60036
28 Part number 0020107732, BUTTON (KNOB) BUTTON (KNOB)
Vaillant part no. 0020107732		 £3.91
28 Part number 143980, NOW USE 0020107732 knob NOW USE 0020107732 KNOB
Vaillant part no. 143980
29 Part number 981152, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981152		 £7.24
30 Part number 981161, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981161		 £6.86
31   OBSOLETE DRAIN NIPPLE
Vaillant part no. 010118
32   OBSOLETE BURNER
Vaillant part no. 041328
36 Part number 980285, packing ring PACKING RING
Vaillant part no. 980285		 £3.91
37 Part number 042126, pilot burner, cpl. PILOT BURNER, CPL.
Vaillant part no. 042126		 £63.81
37   NOW USE 042126 PILOT BURNER, CPL.
Vaillant part no. 42126
38 Part number 235739, Tapping screw TAPPING SCREW
Vaillant part no. 235739
39 Part number 090681, ignition electrode IGNITION ELECTRODE
Vaillant part no. 090681
39 Part number 90681, ignition electrode IGNITION ELECTRODE
Vaillant part no. 90681
40   SELF-CUTTING SCREW
Vaillant part no. 139201		 £3.91
41 Part number 151619, air filter AIR FILTER
Vaillant part no. 151619
42   MIXING TUBE
Vaillant part no. 042427		 £3.91
42   NOW USE 042427 MIXING TUBE
Vaillant part no. 42427
43 Part number 0020078902, Injector INJECTOR
Vaillant part no. 0020078902		 £6.86
43 Part number 042816, NOW USE 0020078902 pilot burner nozzle (D= 0.30 mm) NOW USE 0020078902 PILOT BURNER NOZZLE (D= 0.30 MM)
Vaillant part no. 042816
44 Part number 981145, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981145		 £6.86
44 Part number 980225, NOW USE 981145 packing ring NOW USE 981145 PACKING RING
Vaillant part no. 980225
46 Part number 171125, thermo-couple THERMO-COUPLE
Vaillant part no. 171125
47 Part number 061623, heat exchanger HEAT EXCHANGER
Vaillant part no. 061623
47 Part number 61623, heat exchanger HEAT EXCHANGER
Vaillant part no. 61623
48 Part number 080537, nut NUT
Vaillant part no. 080537		 £4.36
48 Part number 80537, NOW USE 080537 NUT NOW USE 080537 NUT
Vaillant part no. 80537
50   OBSOLETE PACKING RING
Vaillant part no. 980949
51   OBSOLETE
Vaillant part no. 072946
52   INSPECTION GLASS, CPL.
Vaillant part no. 161234		 £4.45
54 Part number 280204, OBSOLETE clip OBSOLETE CLIP
Vaillant part no. 280204
55 Part number 0020107726, BUSH BUSH
Vaillant part no. 0020107726		 £5.13
55 Part number 173713, NOW USE 0020107726 locking nut NOW USE 0020107726 LOCKING NUT
Vaillant part no. 173713
56 Part number 075544, covering plate COVERING PLATE
Vaillant part no. 075544		 £3.91
56 Part number 75544, NOW USE 075544 covering plate NOW USE 075544 COVERING PLATE
Vaillant part no. 75544
57   OBSOLETE PUSH BUTTON
Vaillant part no. 285517
58 Part number 105804, cylinder screw CYLINDER SCREW
Vaillant part no. 105804		 £5.13
59   OBSOLETE FLUE BEND
Vaillant part no. 126828
60 Part number 235727, screw SCREW
Vaillant part no. 235727		 £5.13
61   OBSOLETE ADAPTER
Vaillant part no. 147716
63 Part number 492032, Washer WASHER
Vaillant part no. 492032		 £5.63
64 Part number 105760, Cheese head screw CHEESE HEAD SCREW
Vaillant part no. 105760		 £3.91
65   OBSOLETE SEALING PROFILE
Vaillant part no. 282883
66   OBSOLETE SEALING PROFILE
Vaillant part no. 282884
67   OBSOLETE BOW
Vaillant part no. 154148
68   WARM WATER TUBE
Vaillant part no. 083947		 £9.13
68   NOW USE 083947 WARM WATER TUBE
Vaillant part no. 83947
71 Part number 082741, gas shut-off valve VC221T H, 110T H VC 182 E H, VC 242 E H, VC 282 E H GAS SHUT-OFF VALVE VC221T H, 110T H VC 182 E H, VC 242 E H, VC 282 E H
Vaillant part no. 082741
71 Part number 82741, NOW USE 082741 gas shut-off valve NOW USE 082741 GAS SHUT-OFF VALVE
Vaillant part no. 82741
72   OBSOLETE TUBE
Vaillant part no. 137439
73 Part number 981169, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981169		 £6.86
73   NOW USE 981169 PACKING RING
Vaillant part no. 980221
74 Part number 950088, rose ROSE
Vaillant part no. 950088		 £6.86
76   WARM WATER CONNECTION
Vaillant part no. 081153		 £12.77
76   NOW USE 081153 WARM WATER CONNECTION
Vaillant part no. 81153
77 Part number 950017, Cap CAP
Vaillant part no. 950017		 £6.86
78   COLD WATER CONNECTION VALVE
Vaillant part no. 081723
78   COLD WATER CONNECTION VALVE
Vaillant part no. 81723
80 Part number 981605, Washer WASHER
Vaillant part no. 981605
81 Part number 950057, upper part of valve UPPER PART OF VALVE
Vaillant part no. 950057
82 Part number 143981, knob KNOB
Vaillant part no. 143981		 £6.86
97 Part number 080177, nut NUT
Vaillant part no. 080177		 £6.86
97 Part number 80177, NOW USE 080177 NUT NOW USE 080177 NUT
Vaillant part no. 80177
98 Part number 080184, Compression ring, 20 mm COMPRESSION RING, 20 MM
Vaillant part no. 080184		 £6.86
98 Part number 80184, NOW USE 080184 COMPRESSION RING NOW USE 080184 COMPRESSION RING
Vaillant part no. 80184
165 Part number 114848, Hexagon nut HEXAGON NUT
Vaillant part no. 114848		 £3.91
166   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073110
166   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073112
166   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073114
166   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073116
166   OBSOLETE
Vaillant part no. 073126
167   OBSOLETE SUPPORT
Vaillant part no. 086527
168   OBSOLETE DISC
Vaillant part no. 191350
169   OBSOLETE NUT
Vaillant part no. 212718
170   OBSOLETE SUPPORT
Vaillant part no. 086103
171   OBSOLETE SCREW
Vaillant part no. 202612
172   NUT
Vaillant part no. 950237		 £3.91
174   OBSOLETE DISC
Vaillant part no. 284030
175   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145574
175   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145575
175   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145576
176   OBSOLETE WALL CASE EXTERIOR PART
Vaillant part no. 073019
176   OBSOLETE OUTER PART - 130MM
Vaillant part no. 073020
176   OBSOLETE WALL CASE EXTERIOR PART
Vaillant part no. 073021
177   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145516
177   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145518
179   BUSH
Vaillant part no. 124835		 £3.91
180   OBSOLETE SAFETY DISC
Vaillant part no. 115520
181   OBSOLETE SEALING PROFILE
Vaillant part no. 282822
182   OBSOLETE SNAP NUT
Vaillant part no. 158209
183   OBSOLETE WASHER
Vaillant part no. 286401
