VAILLANT
THERMO COMPACT VC 221 T1988-1996 - (07b Wall Case)
Appliance Code: 41-044-05

Appliance Diagram

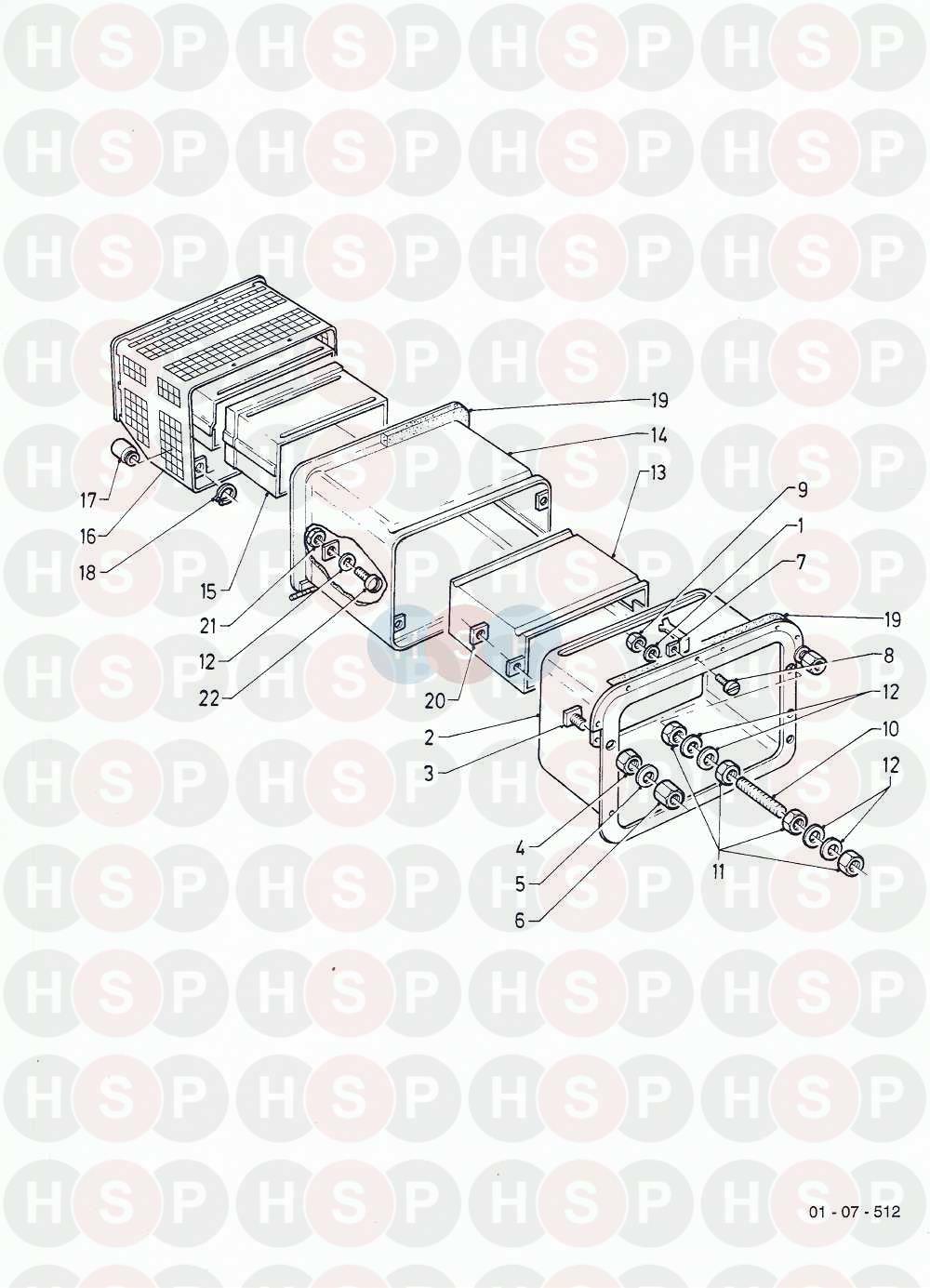

07b Wall Case diagram for Vaillant Thermo Compact VC 221 T1988-1996Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5   OBSOLETE DISC
Vaillant part no. 191350
6   OBSOLETE NUT
Vaillant part no. 212718
8   OBSOLETE SCREW
Vaillant part no. 202612
9   NUT
Vaillant part no. 950237		 £3.91
10   OBSOLETE CONNECTION PIECE
Vaillant part no. 084848
17   BUSH
Vaillant part no. 124835		 £3.91
18   OBSOLETE SAFETY DISC
Vaillant part no. 115520
19   OBSOLETE SEALING PROFILE
Vaillant part no. 282822
20   OBSOLETE SNAP NUT
Vaillant part no. 158209
21   OBSOLETE WASHER
Vaillant part no. 286401
