VOKERA
LINEA ONE ERP REV 12 (03/2016),
LINEA ONE ERP REV 13 (02/2017) - (Casing Electrics)
Appliance Code: 47-364-03

Appliance Diagram

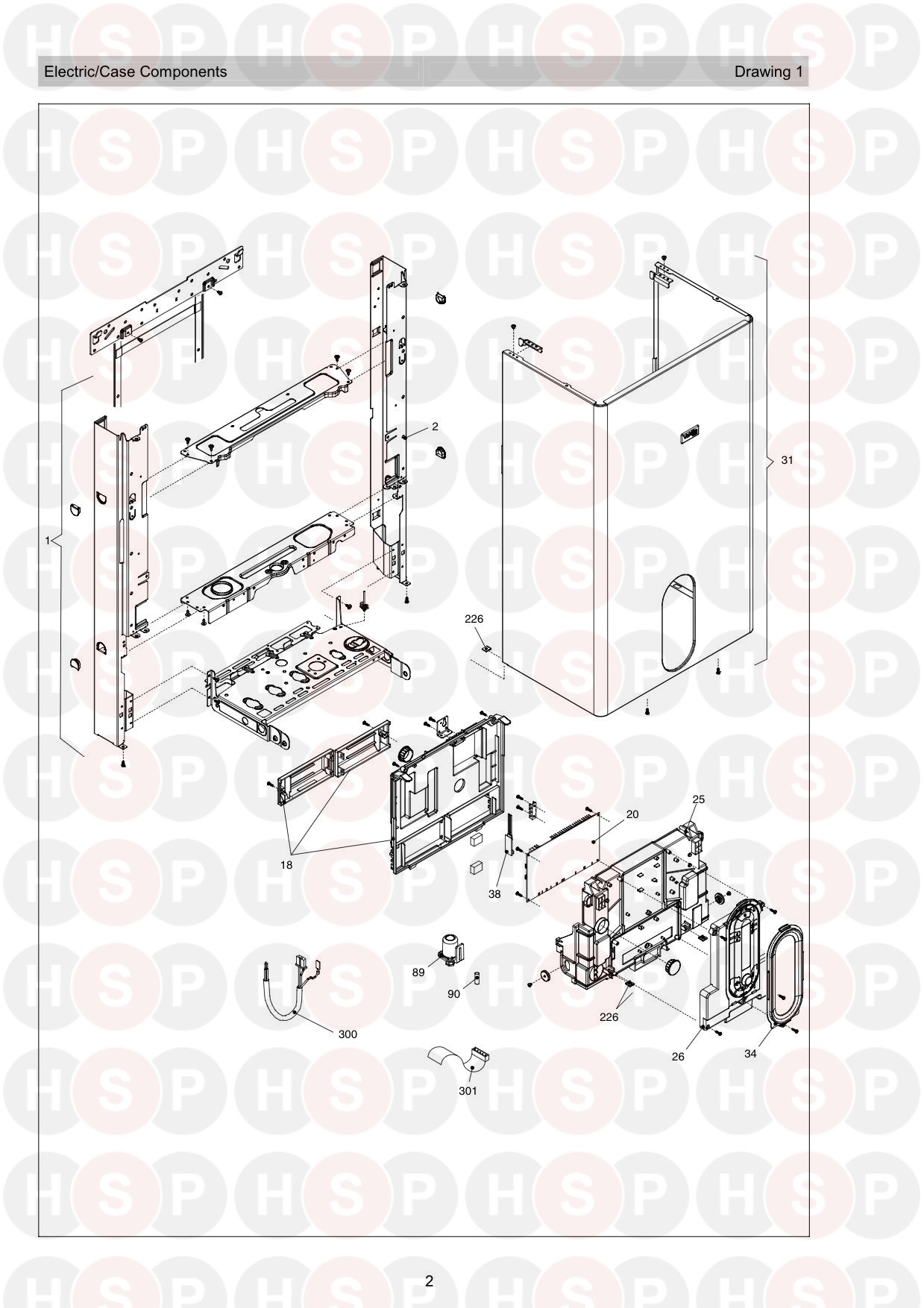

Casing Electrics diagram for Vokera Linea One ERP Rev 12 (03/2016)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   SILICONE TUBE KIT
Vokera part no. 01005362
£17.27
18   COVER ASSEMBLY
Vokera part no. 10026239
£32.79
20   PRINTED CIRCUIT BOARD
Vokera part no. 20016283
£316.19
25   FRONT PANEL
Vokera part no. 10025842
£21.23
26   FRONT PANEL
Vokera part no. 20067421
£170.19
31   CASING
Vokera part no. 20026589
£120.96
34   FIXING FLANGE
Vokera part no. 10026671
£4.03
38   PRINTED CIRCUIT BOARD
Vokera part no. 20024205
£37.54
89   DETECTOR
Vokera part no. 1582
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
226 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128
£0.21
300   WIRING J15 & CN3 TO M10 CONNECTOR (EXTERNAL SENSOR/U.H.T)
Vokera part no. 10026330
£41.17
300   WIRING J3 TO M3 230V MAINS CONNECTOR & M6 CONNECTOR BLOCK (TA LINK)
Vokera part no. 20026587
£17.51
301   OPENTHERM RIBBON CABLE
Vokera part no. 10026429
£43.71
301   CONNECTION BAND CN4 TO J1 ON DISPLAY PCB
Vokera part no. 10026686
£8.10
301   CN2 TO WATER PRESSURE SWITCH, FLOW METER & DHW NTC
Vokera part no. 20016279
£16.84
