VOKERA
PLUS 25C REV 7 LPG (01/2019) - (Electrics/Casing)
Appliance Code: 47-364-33 REV 7

Appliance Diagram


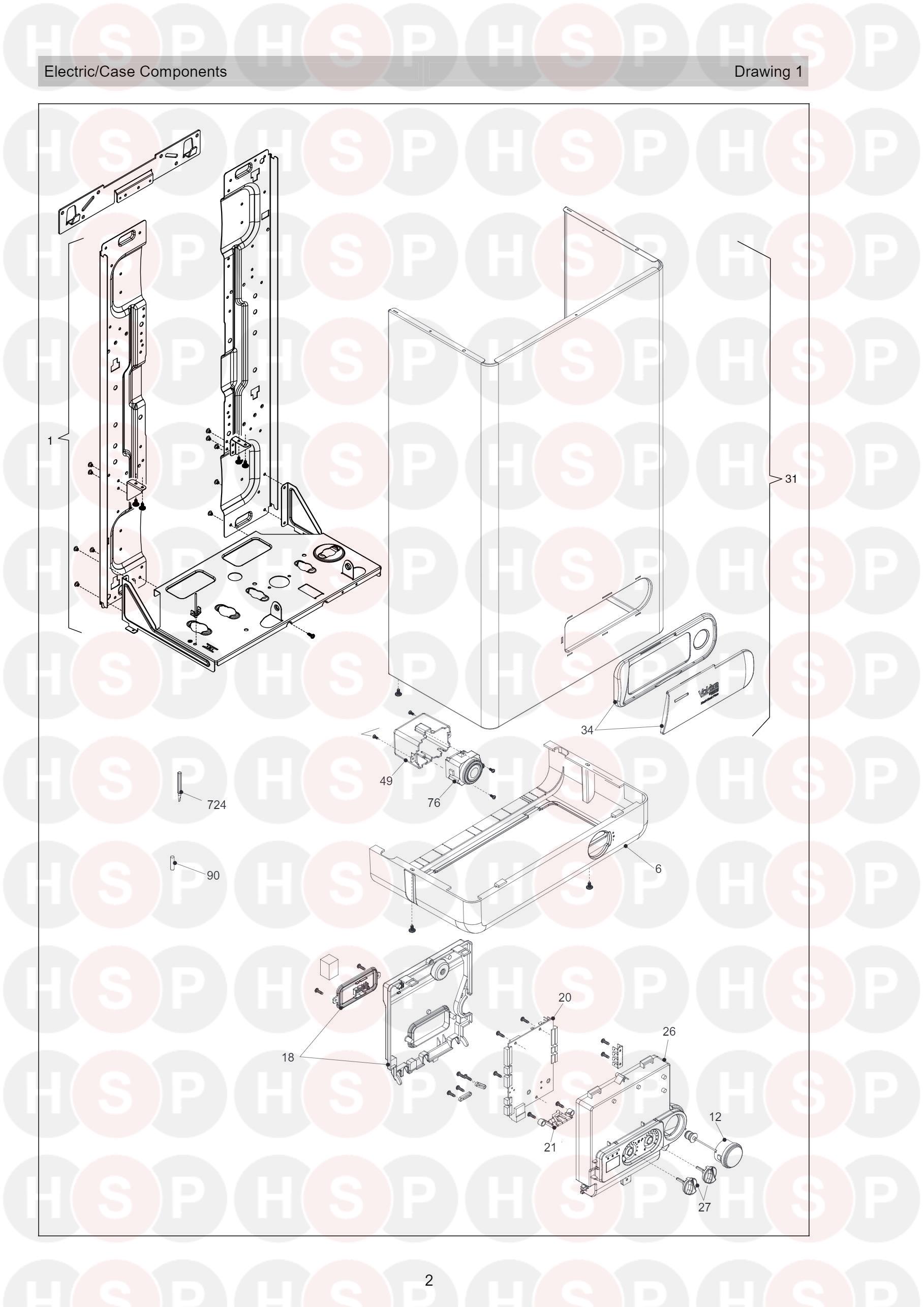

Electrics/Casing diagram for Vokera Plus 25C Rev 7 LPG (01/2019)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   FRAME ASSEMBLY
Vokera part no. 20049618
£43.62
6   VALVE COVER (EXCLUDING CLOCK)
Vokera part no. 20118919
£14.54
12 Part number 20005580, Quick primer pressure gauge QUICK PRIMER PRESSURE GAUGE
Vokera part no. 20005580
£12.49
18 Part number 20026055, CONTROL PANEL COVER CONTROL PANEL COVER
Vokera part no. 20026055
£23.03
20 Part number 20069541, Printed circuit board Replaced 20055454 & 20025735 (UP TO SERIAL NO. 20116906N0752248 OR 2012089N0950180) PRINTED CIRCUIT BOARD REPLACED 20055454 & 20025735 (UP TO SERIAL NO. 20116906N0752248 OR 2012089N0950180)
Vokera part no. 20069541
£152.69
20 Part number 20145176, PCB (FROM SERIAL NO. 20116906N0752249 OR 20120894N0950181) PCB (FROM SERIAL NO. 20116906N0752249 OR 20120894N0950181)
Vokera part no. 20145176
£113.50
21   LED LIGHT GUIDE
Vokera part no. 20013352
£0.90
26   INSTRUMENT PANEL
Vokera part no. 20118920
£12.53
27 Part number 20014025, CONTROL KNOB CONTROL KNOB
Vokera part no. 20014025
£2.07
31   CASE
Vokera part no. 20118922
£60.48
34   CONTROL PANEL COVER
Vokera part no. 20118921
£4.46
49   CLOCK CASING
Vokera part no. 20118917
£3.29
76 Part number 10028496, Mechanical Timer (Rep 10023938) MECHANICAL TIMER (REP 10023938)
Vokera part no. 10028496
£82.49
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
724   SCREW DRIVER
Vokera part no. 2455
£0.90
