VOKERA
PROCOMBI 100HE REV 4 (03/2010) - (Casing Electrics)
Appliance Code: 47-094-81

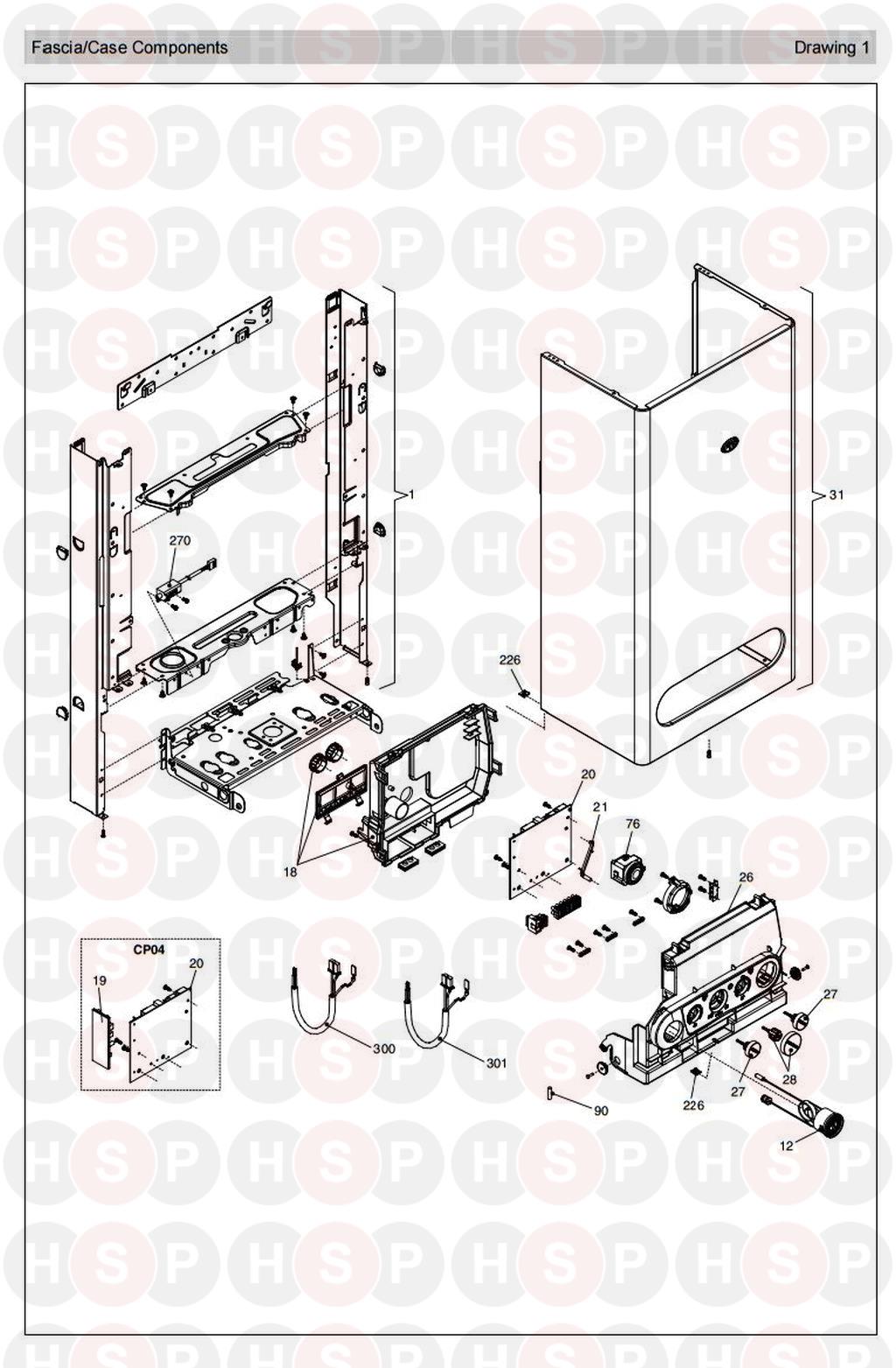

Appliance Diagram


Casing Electrics diagram for Vokera Procombi 100HE Rev 4 (03/2010)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

12 Part number 10026050, Thermo-Pressure gauge THERMO-PRESSURE GAUGE
Vokera part no. 10026050
£38.73
18   COVER ASSEMBLY
Vokera part no. 10027599
£20.70
19 Part number 10028890, Flame control ignition module (Rep 10022174) FLAME CONTROL IGNITION MODULE (REP 10022174)
Vokera part no. 10028890
£126.26
20 Part number 10025340, Printed circuit board - Green PRINTED CIRCUIT BOARD - GREEN
Vokera part no. 10025340
£233.43
20 Part number 10030505, Dual Printed circuit board - Red DUAL PRINTED CIRCUIT BOARD - RED
Vokera part no. 10030505
£319.37
21 Part number 10023816, LED Light Guide LED LIGHT GUIDE
Vokera part no. 10023816
£3.10
26   INSTRUMENT PANEL
Vokera part no. 20001103
£14.65
27 Part number 10028476, Knob KNOB
Vokera part no. 10028476
£4.08
28 Part number 10028475, Knob KNOB
Vokera part no. 10028475
£4.08
31   CASING - COMPACT 29HE / PROCOMBI 100HE
Vokera part no. 10026179
£97.62
76 Part number 10028496, Mechanical Timer (Rep 10023938) MECHANICAL TIMER (REP 10023938)
Vokera part no. 10028496
£82.49
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
226 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128
£0.21
270 Part number 10021272, Ignition Transformer with Wires IGNITION TRANSFORMER WITH WIRES
Vokera part no. 10021272
£15.20
300 Part number 10023840, CN1 to M3 external connections block CN1 TO M3 EXTERNAL CONNECTIONS BLOCK
Vokera part no. 10023840
£47.00
301   M6 (CONNECTIONS BLOCK) TO CLOCK
Vokera part no. 10023940
£11.46
