VOKERA
SABRE 25 HE PLUS (OLD VERSION PRE 2007) REV 2 (03/07) - (Casing Electrics)
Appliance Code: 47-094-92

Appliance Diagram


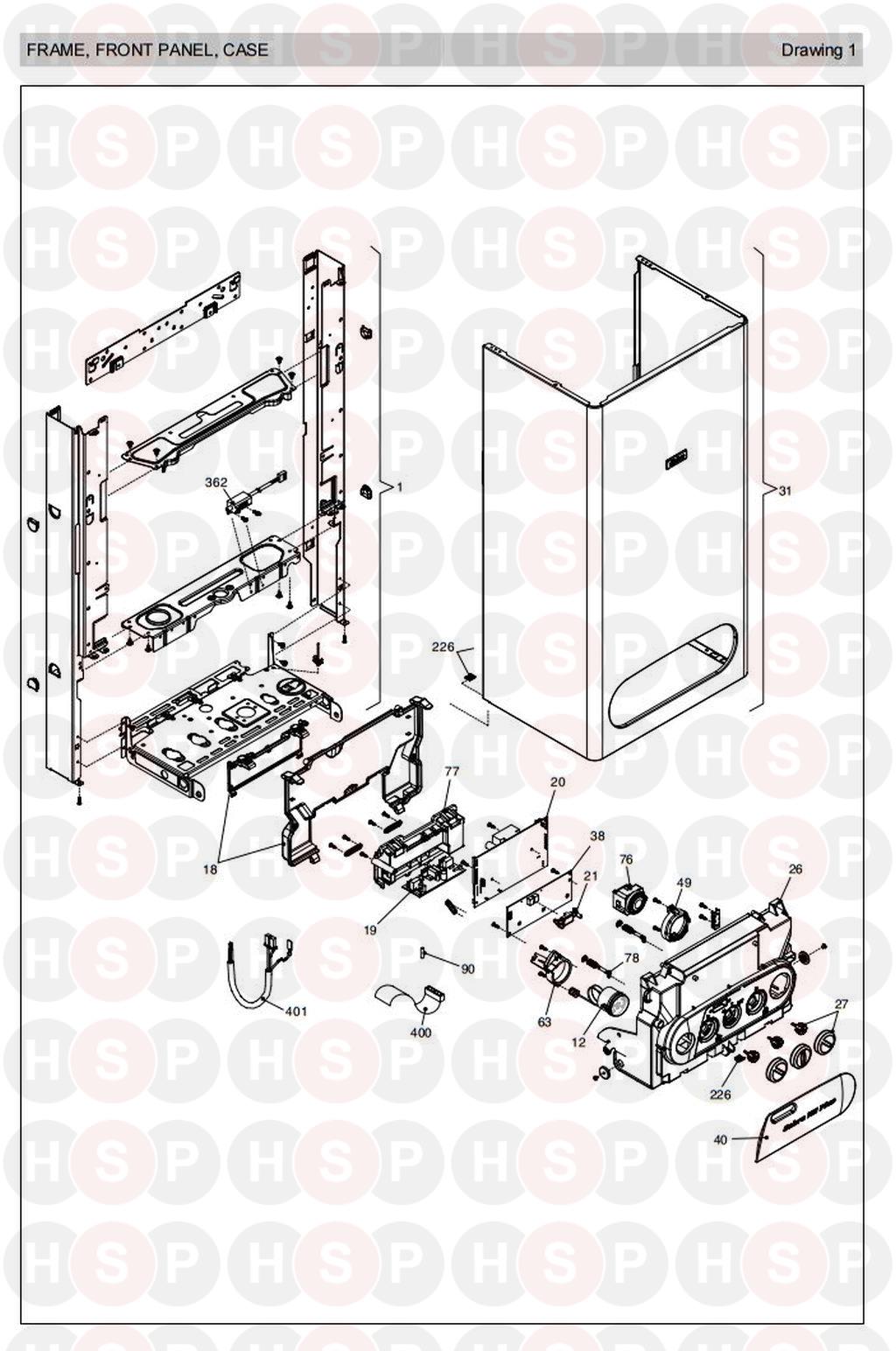

Casing Electrics diagram for Vokera Sabre 25 HE Plus (Old Version Pre 2007) Rev 2 (03/07)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRAME
Vokera part no. 01005403
£77.46
12 Part number 10029421, Pressure gauge (New Type) - Hole Completely Cut Out PRESSURE GAUGE (NEW TYPE) - HOLE COMPLETELY CUT OUT
Vokera part no. 10029421
£27.49
18   COVER ASSEMBLY
Vokera part no. 10028554
£26.22
19 Part number 10028891, Ignition module (Rep 10021848) IGNITION MODULE (REP 10021848)
Vokera part no. 10028891
£106.11
20 Part number 10025911, Main Printed Circuit Board MAIN PRINTED CIRCUIT BOARD
Vokera part no. 10025911
£296.85
21 Part number 10028557, LED light guide LED LIGHT GUIDE
Vokera part no. 10028557
£4.03
26   INSTRUMENT PANEL
Vokera part no. 10029415
£36.63
27 Part number 10028559, Knob assembly KNOB ASSEMBLY
Vokera part no. 10028559
£5.73
31   CASING
Vokera part no. 01005481

38   PRINTED CIRCUIT BOARD
Vokera part no. 10029420
£90.72
40   DOOR PANEL
Vokera part no. 10029417
£14.27
49   TIMER CARRIER
Vokera part no. 10028477
£5.89
63   WATER GAUGE CARRIER
Vokera part no. 10029105
£7.76
76 Part number 10028496, Mechanical Timer (Rep 10023938) MECHANICAL TIMER (REP 10023938)
Vokera part no. 10028496
£82.49
78   HINGE ASSEMBLY
Vokera part no. 01005442
£5.92
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
226 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128
£0.21
362 Part number 10022659, Ignition Transformer rep 10021991 IGNITION TRANSFORMER REP 10021991
Vokera part no. 10022659
£22.15
400 Part number 10021117, M9 to M2 ribbon cable from the main PCB to display PCB M9 TO M2 RIBBON CABLE FROM THE MAIN PCB TO DISPLAY PCB
Vokera part no. 10021117
£8.70
401   M16 TO CONNECTION BLOCK & CLOCK, FUSE BLOCK & FLY LEAD
Vokera part no. 10029424
£38.16
