VOKERA
VIBE 20A ERP REV 2 (02/2017) - (Hydraulics 2)
Appliance Code: 41-094-84 ERP REV 2

Appliance Diagram


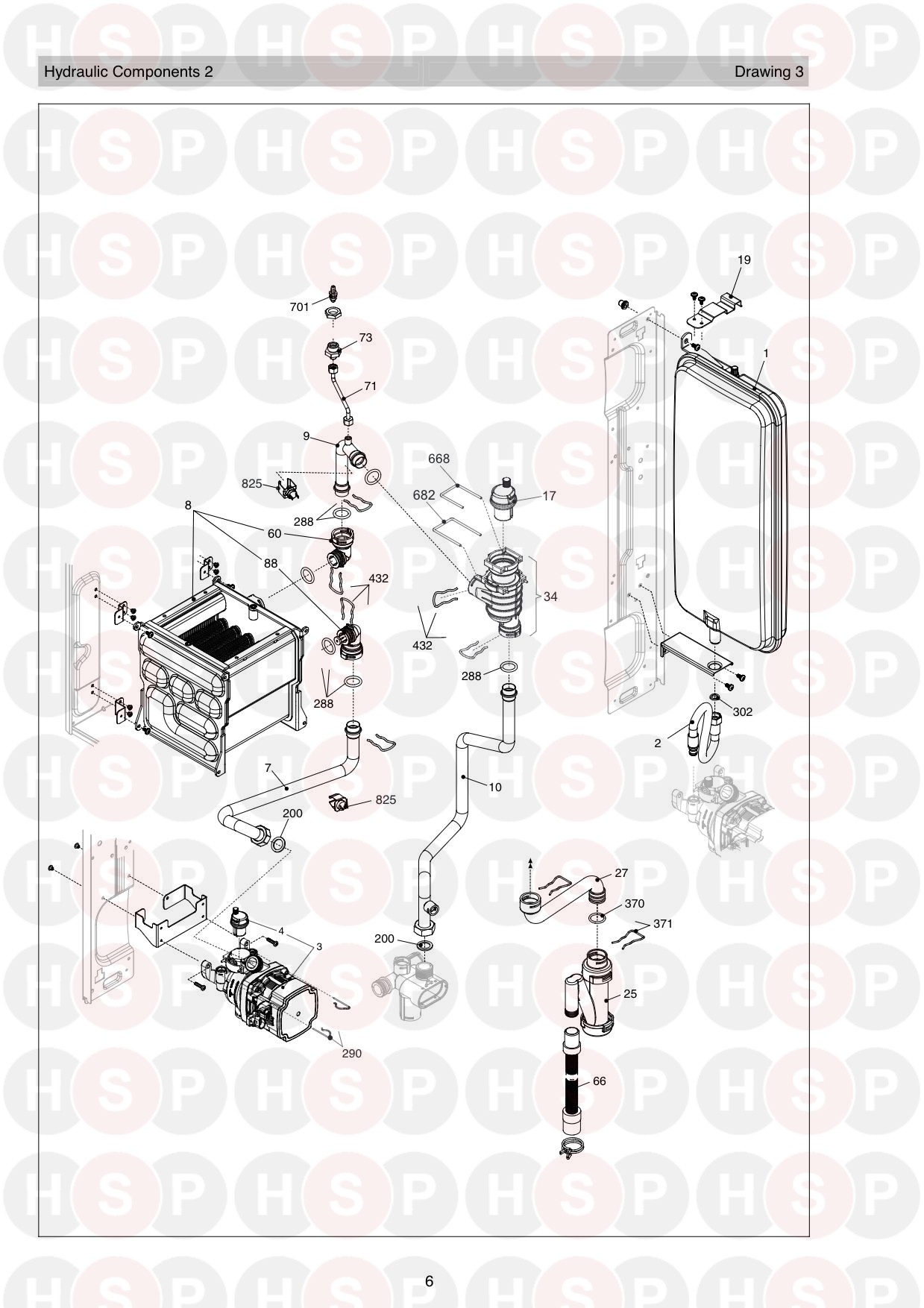

Hydraulics 2 diagram for Vokera Vibe 20A ERP Rev 2 (02/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 20029826, NOW USE 20138101 Expansion vessel Rep 20024419 NOW USE 20138101 EXPANSION VESSEL REP 20024419
Vokera part no. 20029826

1 Part number 20138101, 8 Litre Expansion Vessel - Replaced 20029826 8 LITRE EXPANSION VESSEL - REPLACED 20029826
Vokera part no. 20138101
£100.70
2 Part number 10028603, Pipe PIPE
Vokera part no. 10028603
£12.85
3 Part number 20099105, NOW USE 20194913 ERP Pump Assembly NOW USE 20194913 ERP PUMP ASSEMBLY
Vokera part no. 20099105

3   ERP PUMP - REPLACED 20136316 AND 20099105
Vokera part no. 20194913
£354.66
4 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485
£19.12
7   NOW USE 20166123 PIPE
Vokera part no. 20025763

7   PIPE
Vokera part no. 20166123
£32.04
8 Part number 20039923, Exchanger Assembly rep 20025765 EXCHANGER ASSEMBLY REP 20025765
Vokera part no. 20039923
£310.66
9   PIPE (FROM SERIAL NO. 20086245J4050097)
Vokera part no. 20090680
£19.61
10   NOW USE 20166124 FLOW PIPE ASSEMBLY
Vokera part no. 20025744

10   PIPE (UP TO SERIAL NO. 20099227PR02P003266)
Vokera part no. 20166124
£47.96
17 Part number 20019768, Auto air vent (Black) AUTO AIR VENT (BLACK)
Vokera part no. 20019768
£5.81
19   EXPANSION VESSEL BRACKET
Vokera part no. 20125261
£2.46
25 Part number 20025733, SIPHON SIPHON
Vokera part no. 20025733
£11.00
27 Part number 20025743, PIPE TRAP PIPE TRAP
Vokera part no. 20025743
£7.24
34 Part number 20032553, NOW USE 20019888 DEGASSER KIT NOW USE 20019888 DEGASSER KIT
Vokera part no. 20032553

34 Part number 20019888, Air Separator (UP TO SERIAL NO. 20097278PR05P005812) AIR SEPARATOR (UP TO SERIAL NO. 20097278PR05P005812)
Vokera part no. 20019888
£17.63
66 Part number 10027545, Flexible pipe FLEXIBLE PIPE
Vokera part no. 10027545
£8.88
71   AIR BLEEDING CONNECTION PIPE (UP TO SERIAL NO 20099226O0950120)
Vokera part no. 20025746
£9.71
73 Part number 10028431, COCK (up to serial no, 20099226O0950120) COCK (UP TO SERIAL NO, 20099226O0950120)
Vokera part no. 10028431
£9.55
88 Part number 20039954, Return Connection for Compact A RETURN CONNECTION FOR COMPACT A
Vokera part no. 20039954
£4.94
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
288 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

302 Part number 5025, WASHER WASHER
Vokera part no. 5025
£0.92
370 Part number 10023533, O Ring O RING
Vokera part no. 10023533
£1.36
371 Part number 10023532, Locking Pin LOCKING PIN
Vokera part no. 10023532
£13.63
432 Part number 10024958, Locking Pin LOCKING PIN
Vokera part no. 10024958
£0.98
668 Part number 20019767, Locking Pin LOCKING PIN
Vokera part no. 20019767
£0.43
682   LOCKING PIN
Vokera part no. 20120828
£0.51
701 Part number 10023235, VENT PLUG (up to serial no. 20099226O0950120) VENT PLUG (UP TO SERIAL NO. 20099226O0950120)
Vokera part no. 10023235
£4.35
825 Part number 20081926, Thermistor/NTC Replaced 20003819 and 20004365 THERMISTOR/NTC REPLACED 20003819 AND 20004365
Vokera part no. 20081926
£16.76
