VOKERA
VISION PLUS 25S REV 1 (10/2020) - (Hydraulics 1)
Appliance Code: 41-364-07 REV 1

Appliance Diagram


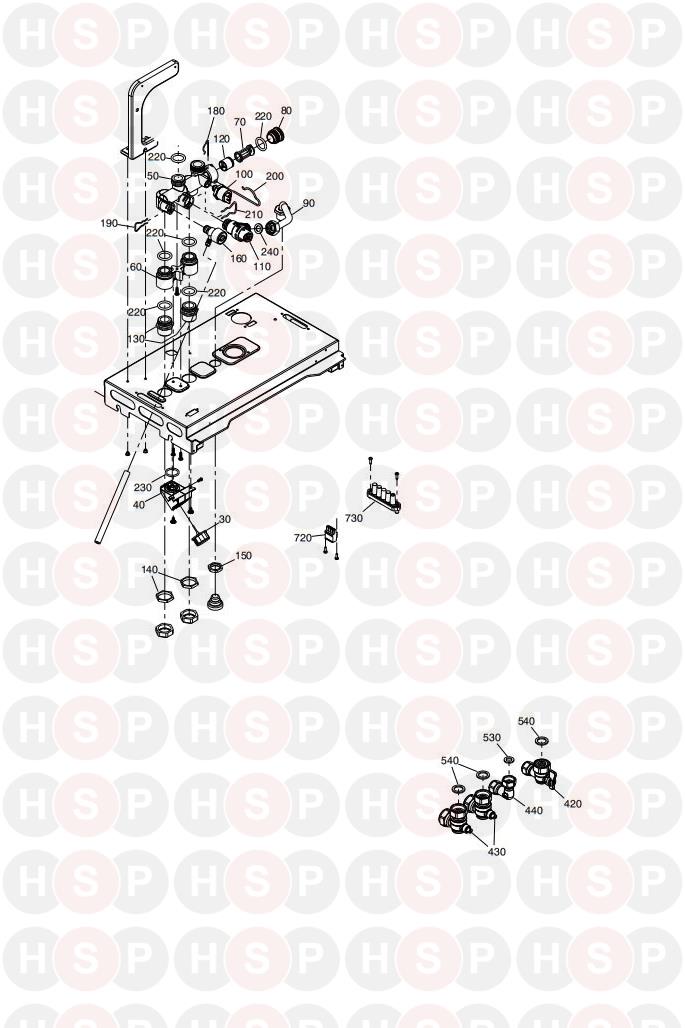

Hydraulics 1 diagram for Vokera Vision Plus 25s Rev 1 (10/2020)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

30 Part number 20049617, QUICK PRIMER PRESSURE GAUGE QUICK PRIMER PRESSURE GAUGE
Vokera part no. 20049617
£17.20
40   WATER GAUGE CARRIER
Vokera part no. 20123121
£1.73
50   HEATING DISTRIB.
Vokera part no. 20005568
£8.30
60   HYDRAULIC CONNECTION
Vokera part no. 20130718
£4.21
70   BY PASS VALVE LOCK
Vokera part no. 20068965
£1.47
80   AUTOMATIC BY-PASS PLUG
Vokera part no. 10024645
£4.76
90   PIPE
Vokera part no. 20130719
£15.91
100 Part number 20024559, Pressure Transductor PRESSURE TRANSDUCTOR
Vokera part no. 20024559
£32.68
110 Part number 20044364, Safety valve Rep 10025055 & 20034917 & 20043820 SAFETY VALVE REP 10025055 & 20034917 & 20043820
Vokera part no. 20044364
£22.49
120 Part number 1552, Valve For DHW Bypass VALVE FOR DHW BYPASS
Vokera part no. 1552
£7.77
130   CONNECTION
Vokera part no. 20014074
£7.54
140 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026
£1.38
150   LOCK NUT
Vokera part no. 4274

160   COCK
Vokera part no. 20000533
£5.63
180 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757
£0.77
180 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165

190   CLIP
Vokera part no. 20000539
£0.44
200 Part number 2223, Locking Pin LOCKING PIN
Vokera part no. 2223
£3.76
210 Part number 10025062, Locking Pin LOCKING PIN
Vokera part no. 10025062
£2.26
220 Part number 6898, O Ring O RING
Vokera part no. 6898
£1.03
230 Part number 10023533, O Ring O RING
Vokera part no. 10023533
£1.36
240   WASHER
Vokera part no. 10023698
£0.64
420   HEATING COCK (UP TO SERIAL NO. 20119408M4250108)
Vokera part no. 20132650
£18.04
430   HEAT WATER COCK
Vokera part no. 20132653
£19.26
440   ANGLE PIPE
Vokera part no. 20132654
£9.55
530 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026
£0.39
540 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023
£0.43
720   4-POLE CONNECTOR
Vokera part no. 20154287
£5.56
730   FIVE POSITIONS FAIRLEAD
Vokera part no. 20123125
£1.65
