WORCESTER
28SI II - (Burner)
Appliance Code: 47-311-67

Appliance Diagram

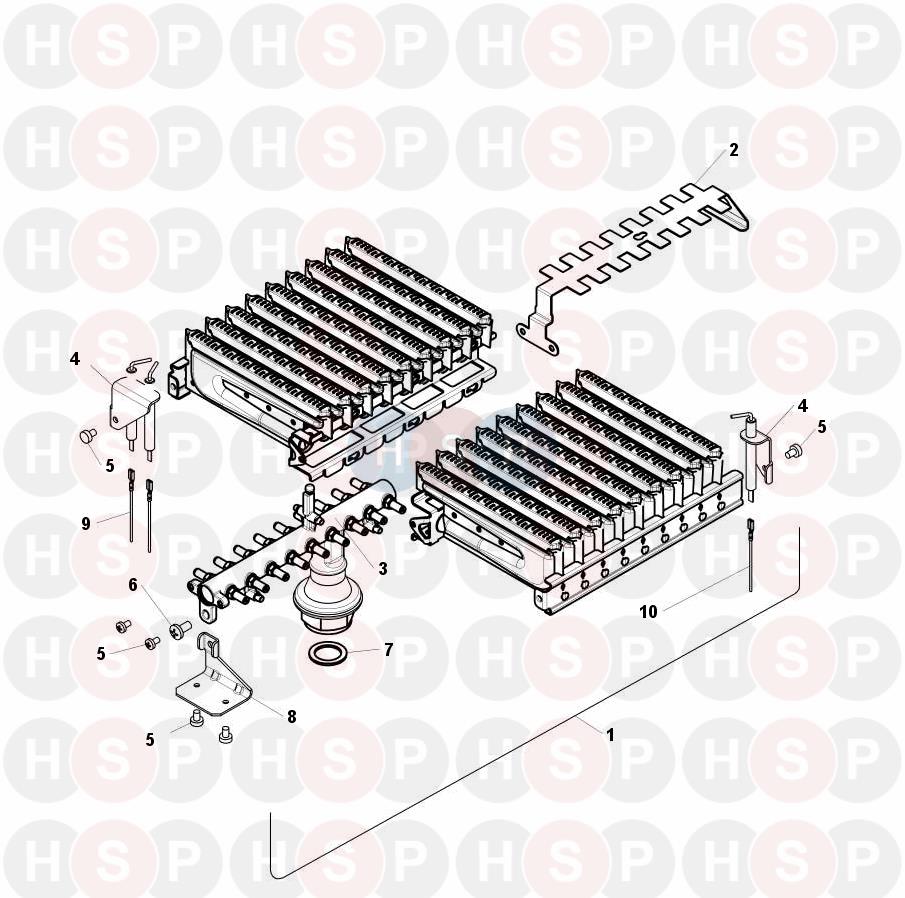

Burner diagram for Worcester 28SI IIClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  GAS CONVERSION KIT 28SI II NG - LPG AFTER FD387
Worcester part no. 87161164100		 £162.68
0   GAS CONVERSION KIT NG TO LPG 28SI II BEFORE FD387
Worcester part no. 87161049150		 £29.62
0 Part number 87161049160, CONVERSION KIT LPG TO NG 28SI 11 BEFORE FD387 CONVERSION KIT LPG TO NG 28SI 11 BEFORE FD387
Worcester part no. 87161049160		 £52.17
0   GAS CONVERSION KIT LPG TO NG 28SI II AFTER FD387
Worcester part no. 87161058040		 £69.75
1 Part number 87161050080, BURNER 28KW NG BURNER 28KW NG
Worcester part no. 87161050080		 £79.53
1   BURNER 28KW LPG
Worcester part no. 87161050090		 £57.10
2 Part number 87161165440, CROSS IGNITION BRIDGE CROSS IGNITION BRIDGE
Worcester part no. 87161165440		 £3.78
3 Part number 87161049450, BURNER MANIFOLD NG RSF BURNER MANIFOLD NG RSF
Worcester part no. 87161049450		 £54.13
3   BURNER MANIFOLD ASSY 28KW LPG
Worcester part no. 87161050710		 £30.27
4 Part number 87161019010, ELECTRODE SET (FLAME & IGNITION) ELECTRODE SET (FLAME & IGNITION)
Worcester part no. 87161019010		 £17.73
5 Part number 29144114240, SCREW M4X6 TAPTITE ZC PL P/H BEFORE FD991 SCREW M4X6 TAPTITE ZC PL P/H BEFORE FD991
Worcester part no. 29144114240		 £1.19
6 Part number 29144114030, NOW USE 87182242510 SCREW M5X12MM TAPTITE ZC PL P/H (10X) NOW USE 87182242510 SCREW M5X12MM TAPTITE ZC PL P/H (10X)
Worcester part no. 29144114030
6 Part number 87182242510, SCREW M5 X 10MM SCREW M5 X 10MM
Worcester part no. 87182242510		 £1.56
7 Part number 87101030430, FIBRE WASHER 23.9 X 17.2 X 1.5 FIBRE WASHER 23.9 X 17.2 X 1.5
Worcester part no. 87101030430		 £2.84
7 Part number 87161156740, WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991 WASHER 23.9 X 17.2 X 1.5 (X1) BEFORE FD991
Worcester part no. 87161156740		 £2.84
8 Part number 87161018010, BURNER SUPPORT - BEFORE FD482 BURNER SUPPORT - BEFORE FD482
Worcester part no. 87161018010		 £4.66
8   FIXING BRACKET - AFTER FD483
Worcester part no. 87161061880		 £2.54
9 Part number 87161165420, IGNITION LEAD - BEFORE FD483 IGNITION LEAD - BEFORE FD483
Worcester part no. 87161165420		 £12.75
9   IGNITION WIRE
Worcester part no. 87199051470
10 Part number 87161024380, END FLAME SENSE HARNESS - BEFORE FD482 END FLAME SENSE HARNESS - BEFORE FD482
Worcester part no. 87161024380		 £7.39
10   CABLE - AFTER FD483
Worcester part no. 87199051480		 £4.51
