WORCESTER
CAMRAY UTILITY QUARTET 90/110 (APRIL 1995-AUG 1998) 7716139063 - (CONTROL PANEL)

Appliance Diagram

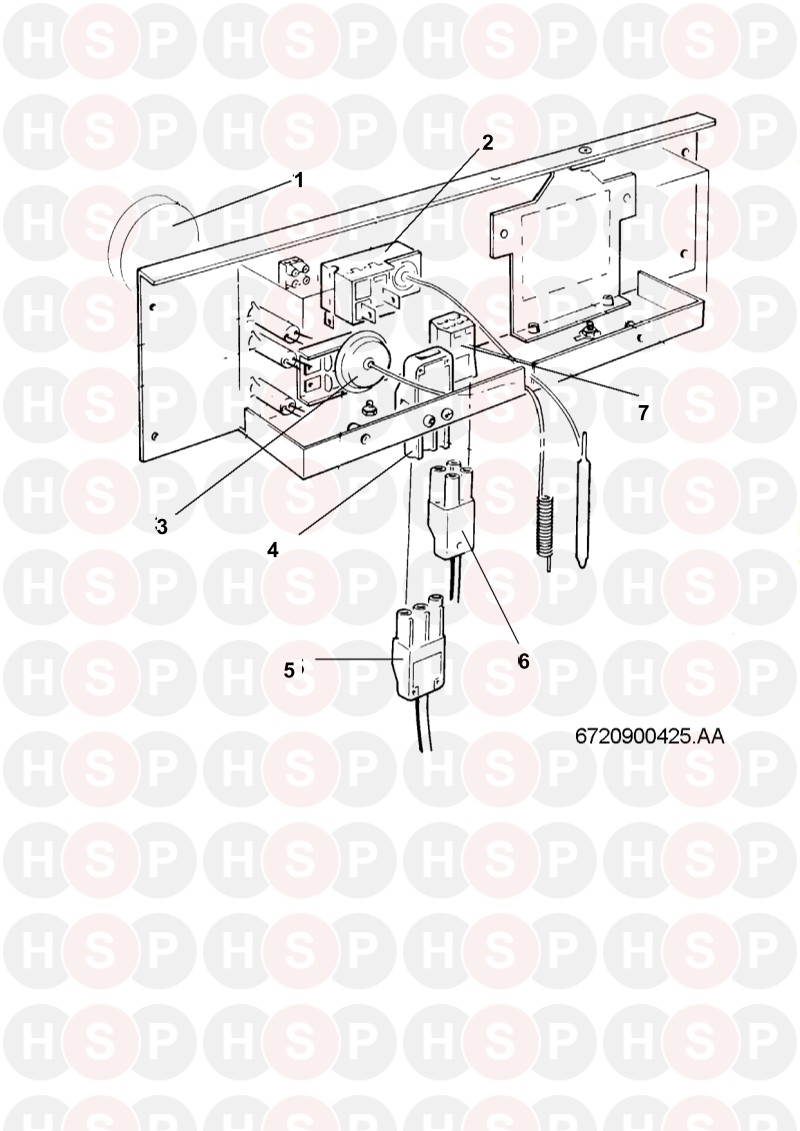

CONTROL PANEL diagram for Worcester CAMRAY UTILITY QUARTET 90/110 (APRIL 1995-AUG 1998) 7716139063Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87161078700, CONTROL KNOB CONTROL KNOB
Worcester part no. 87161078700
£1.33
2 Part number 87161078720, CONTROL THERMOSTAT (RANCO) CONTROL THERMOSTAT (RANCO)
Worcester part no. 87161078720
£14.25
3 Part number 87161078710, MANUAL RESET LIMIT THERMOSTAT (RANCO) MANUAL RESET LIMIT THERMOSTAT (RANCO)
Worcester part no. 87161078710
£11.52
4 Part number 87161078520, 3 WAY SOCKET 3 WAY SOCKET
Worcester part no. 87161078520
£5.52
5 Part number 87161074230, 3 WAY PLUG 3 WAY PLUG
Worcester part no. 87161074230
£5.32
6 Part number 87161091970, Burner lead BURNER LEAD
Worcester part no. 87161091970
£56.15
7 Part number 87161078500, 4 WAY SOCKET 4 WAY SOCKET
Worcester part no. 87161078500
£4.18
