WORCESTER
CLASSIC 50/70 (50/70A) (DEC 1998-AUG 2001) 7716139069 - (Diagram Not Available From Worcester)
Appliance Code: 7716139069

Appliance Diagram

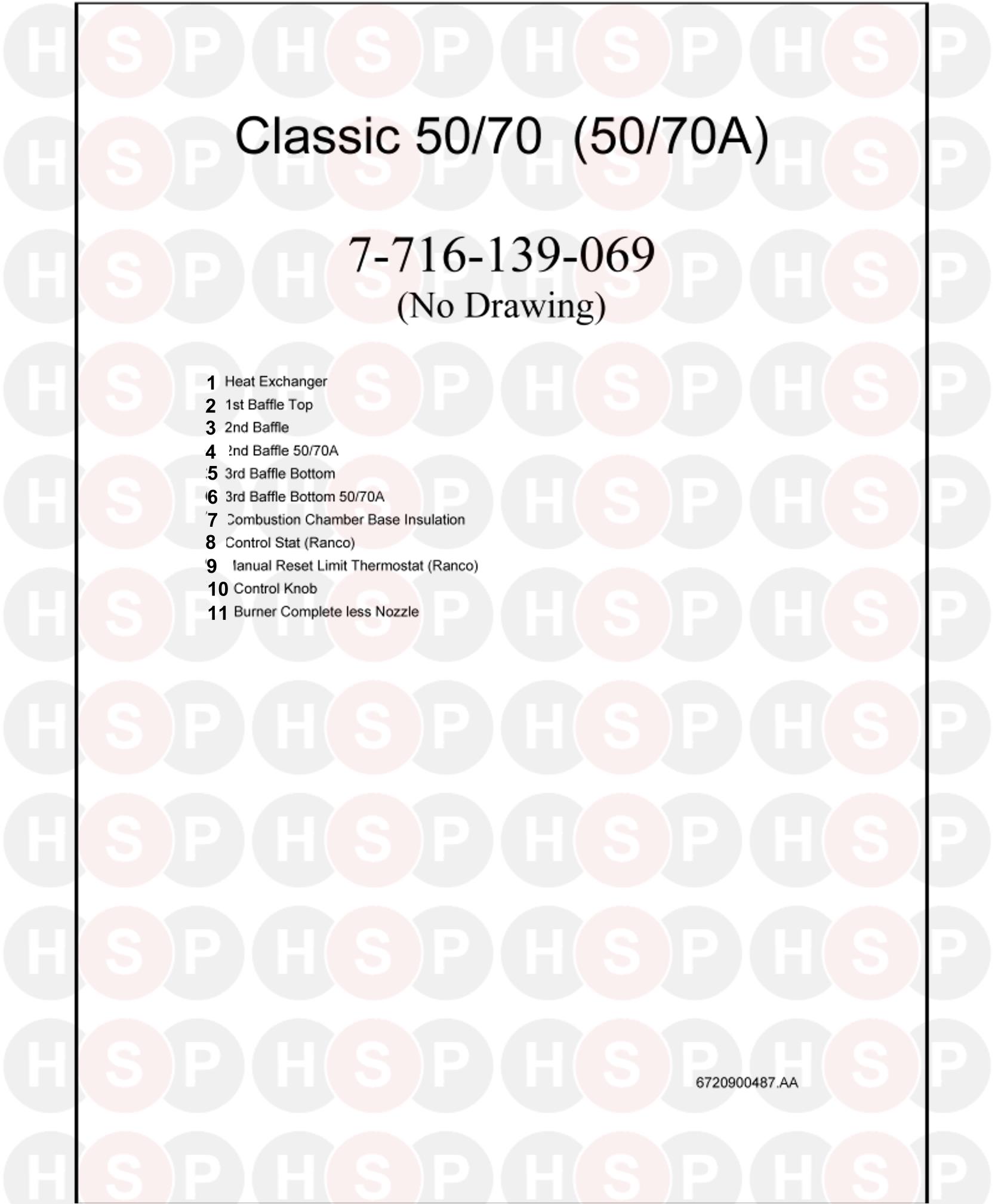

Diagram Not Available From Worcester diagram for Worcester Classic 50/70 (50/70A) (Dec 1998-Aug 2001) 7716139069Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   TOP BAFFLE ASSEMBLY CLASSIC 50/70
Worcester part no. 87161099510
3   TOP BAFFLE ASSEMBLY CLASSIC 50/70
Worcester part no. 87161099510
4   MIDDLE BAFFLE ASSEMBLY CLASSIC 50/70A
Worcester part no. 87161099560
5   BOTTOM BAFFLE ASSEMBLY CLASSIC 50/70
Worcester part no. 87161099520
6   BOTTOM BAFFLE ASSEMBLY CLASSIC 50/70A
Worcester part no. 87161099570
7   COMBUSTION CHAMBER BASE INSULATION
Worcester part no. 87161100150		 £11.16
8 Part number 87161078720, CONTROL THERMOSTAT (RANCO) CONTROL THERMOSTAT (RANCO)
Worcester part no. 87161078720		 £19.98
9 Part number 87161078710, MANUAL RESET LIMIT THERMOSTAT (RANCO) MANUAL RESET LIMIT THERMOSTAT (RANCO)
Worcester part no. 87161078710		 £16.16
10 Part number 87161078700, CONTROL KNOB CONTROL KNOB
Worcester part no. 87161078700		 £1.89
11   BURNER COMPLETE LESS NOZZLE
Worcester part no. 87161099380		 £867.96
