DANESMOOR SYSTEM EXTERNAL 18/25 7716100151 - (Primary Heat Exchanger)

Appliance Diagram


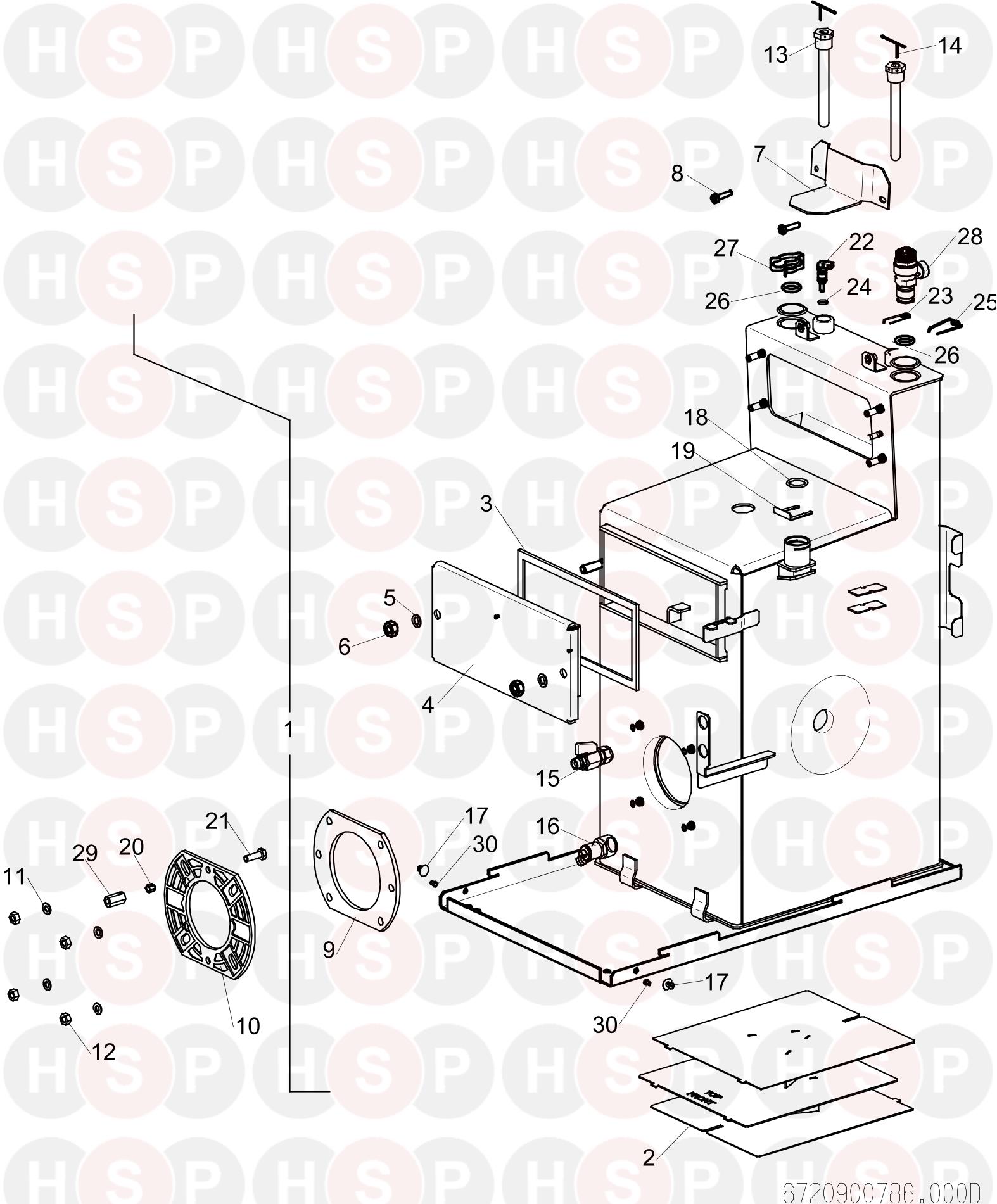

Primary Heat Exchanger diagram for Worcester Danesmoor System External 18/25 7716100151Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

  INSULATION JACKET FRONT
Worcester part no. 8716116756
£23.39
  INSULATION ACCESS DOOR
Worcester part no. 8716119036
£25.65
  INSULATION JACKET PHE
Worcester part no. 87186900380
£61.15
1   HEAT_EXCHANGER PAINTED (18-25KW) SYSTEM
Worcester part no. 8716116762
£1,648.97
2   BAFFLE ASSEMBLY
Worcester part no. 87186813770
£91.53
3   ROPE SEAL
Worcester part no. 87186887090
£20.64
4   ACCESS DOOR ASSEMBLY
Worcester part no. 87186882690
£72.55
5 Part number 29160111140, WASHER M10 WASHER M10
Worcester part no. 29160111140
£2.89
6 Part number 29150110100, NUT M10 NUT M10
Worcester part no. 29150110100
£2.25
7   FLUE SUPPORT BRACKET
Worcester part no. 87186825260
£19.09
8 Part number 87161130660, SCREW HEX Z M6 X 25 8.8 ZP AFTER FD783 SCREW HEX Z M6 X 25 8.8 ZP AFTER FD783
Worcester part no. 87161130660
£2.29
9 Part number 87161128710, GASKET-BURNER MOUNTING FLANGE GASKET-BURNER MOUNTING FLANGE
Worcester part no. 87161128710
£5.25
10   FLANGE 70/90 ECON
Worcester part no. 87161126620
£13.67
11 Part number 29160110150, WASHER M8 FORM A MS ZINC PLATE WASHER M8 FORM A MS ZINC PLATE
Worcester part no. 29160110150
£1.52
12 Part number 29150110090, NUT M8 FULL HEX M/S ZC PL NUT M8 FULL HEX M/S ZC PL
Worcester part no. 29150110090
£3.12
13 Part number 87161402450, POCKET T/STAT 27-3 POCKET T/STAT 27-3
Worcester part no. 87161402450
£13.89
14 Part number 87161550470, STEEL SPLIT PIN 45MM X 1.5MM STEEL SPLIT PIN 45MM X 1.5MM
Worcester part no. 87161550470
£2.25
15 Part number 87161059170, NOW USE 8716119692 VALVE OIL LINE NOW USE 8716119692 VALVE OIL LINE
Worcester part no. 87161059170

15 Part number 8716119692, VALVE OIL LINE VALVE OIL LINE
Worcester part no. 8716119692
£9.58
16 Part number 87161084850, 1/2" DRAIN COCK 1/2" DRAIN COCK
Worcester part no. 87161084850
£8.68
17   RIVET PLASTIC BUSH
Worcester part no. 87186908080
£11.30
18 Part number 87161408260, O-RING 3.0 SEC X 21.5 I/D E.P. O-RING 3.0 SEC X 21.5 I/D E.P.
Worcester part no. 87161408260
£2.14
19 Part number 87161483220, CLIP - RETAINING CLIP - RETAINING
Worcester part no. 87161483220
£2.32
20 Part number 87161080530, NUT BURNER LOCATION NUT BURNER LOCATION
Worcester part no. 87161080530
£2.89
21   BOLT
Worcester part no. 87186909230
£2.45
25 Part number 87186846990, CLIP WIRE 18MM (10X) CLIP WIRE 18MM (10X)
Worcester part no. 87186846990
£2.12
26 Part number 87167711540, O-RING 17X4 (10X) AFTER FD992 O-RING 17X4 (10X) AFTER FD992
Worcester part no. 87167711540
£2.01
27 Part number 87112000240, CLIP (10X) 18 AFTER FD992 CLIP (10X) 18 AFTER FD992
Worcester part no. 87112000240
£8.33
28 Part number 87186439890, SAFETY VALVE SAFETY VALVE
Worcester part no. 87186439890
£7.91
29   NUT EXTENDED
Worcester part no. 8716116760
£16.41
30   SCREW (10X)
Worcester part no. 29106194090
£0.45
