WORCESTER
HEATSLAVE 12/14-OSO-GB OIL COM (JULY 1996 - NOV. 2001) 7716100005 - (Heat Exchanger)
Appliance Code: 7716100005

Appliance Diagram

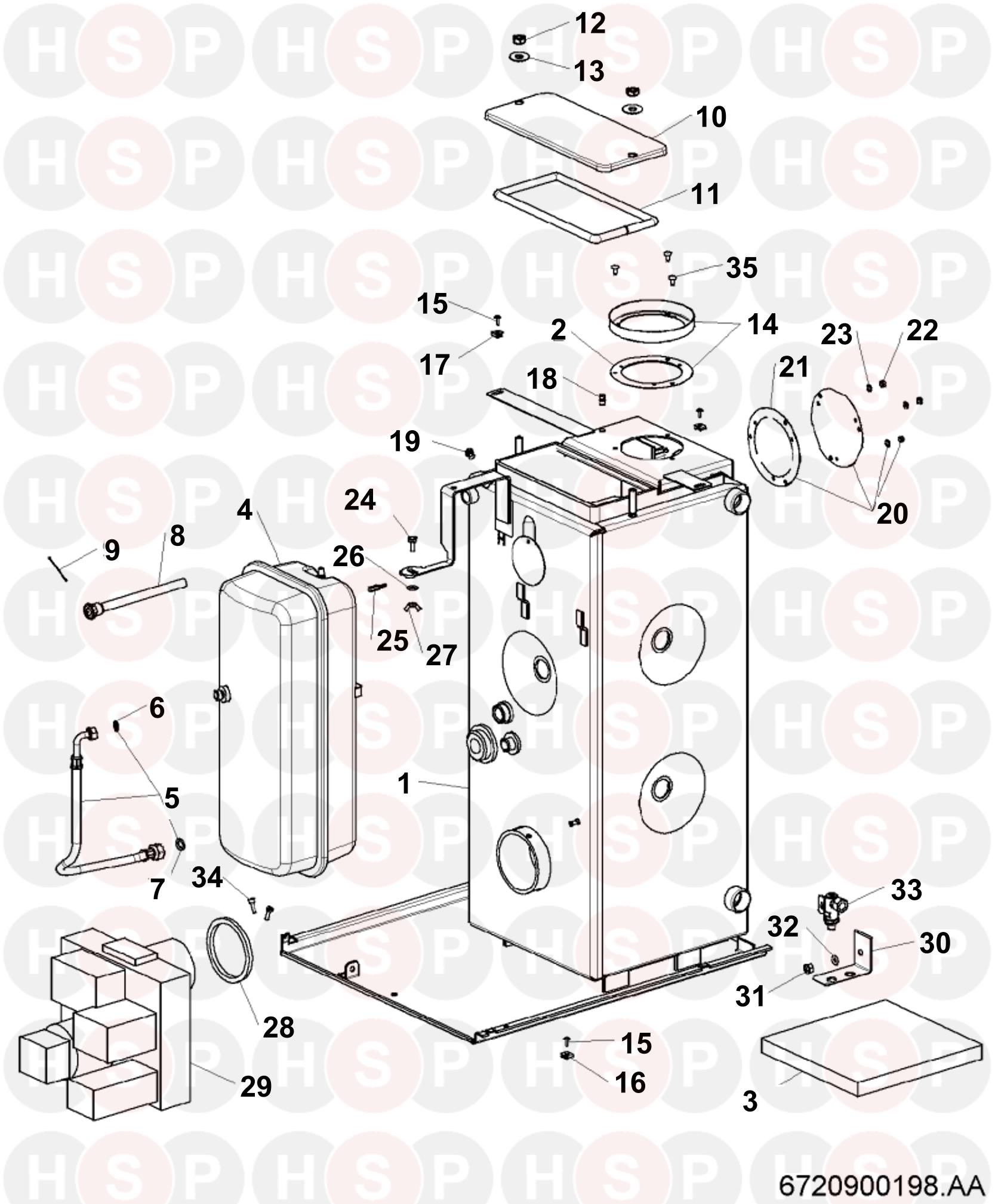

Heat Exchanger diagram for Worcester Heatslave 12/14-Oso-GB Oil COM (July 1996 - NOV. 2001) 7716100005Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number 87161052710, HARNESS 6 WAY HARNESS 6 WAY
Worcester part no. 87161052710
£54.01
  EXPANSION VESSEL SUPPORT ASSY
Worcester part no. 87161200730
£46.47
  RETAINING BAR ASSEMBLY.
Worcester part no. 87161200740
£21.19
Part number 87161206410, FLUE BLANKING PLATE FLUE BLANKING PLATE
Worcester part no. 87161206410
£14.28
  INSULATION JACKET SLHS
Worcester part no. 87161422400
£28.28
1   HS12/14-OSO HEAT EXCHANGER FINAL ASSY
Worcester part no. 87161212970
£1,077.33
2   GASKET FLUE RING
Worcester part no. 87161422260
£3.36
3 Part number 87161422430, HEAT EXCHANGER BASE INSULATION HEAT EXCHANGER BASE INSULATION
Worcester part no. 87161422430
£15.94
4 Part number 87161425050, EXPANSION VESSEL 12L EXPANSION VESSEL 12L
Worcester part no. 87161425050
£118.86
5 Part number 87161405070, FLEXIBLE HOSE C/W WASHERS FLEXIBLE HOSE C/W WASHERS
Worcester part no. 87161405070
£14.06
6 Part number 87161409210, WASHER FIBRE 15.0 X 10.0 X 1.0 WASHER FIBRE 15.0 X 10.0 X 1.0
Worcester part no. 87161409210
£3.20
7 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450
£2.95
7 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800
£0.86
8 Part number 87161430180, POCKET T/STAT - (27-4) POCKET T/STAT - (27-4)
Worcester part no. 87161430180
£10.63
9 Part number 87161550470, STEEL SPLIT PIN 45MM X 1.5MM STEEL SPLIT PIN 45MM X 1.5MM
Worcester part no. 87161550470
£2.95
10 Part number 87161202610, ACCESS LID ASSEMBLY ACCESS LID ASSEMBLY
Worcester part no. 87161202610
£27.54
11 Part number 87161409030, ROPE-THERMOSEAL TYPE4 13MM DIA ROPE-THERMOSEAL TYPE4 13MM DIA
Worcester part no. 87161409030
£6.71
12 Part number 29150110100, NUT M10 NUT M10
Worcester part no. 29150110100
£2.95
13 Part number 29160118960, WASHER M10 WASHER M10
Worcester part no. 29160118960
£1.99
14 Part number 87161011040, 4" FLUE RING KIT 4" FLUE RING KIT
Worcester part no. 87161011040
£8.27
15 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060
£3.59
16 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040
£4.24
17   NO 8 OPEN CAPTIVE NUT - BRONZE
Worcester part no. 87161405140
£17.15
18 Part number 87161401170, PLUG 1/8 PLAIN SOLID PLUG 1/8 PLAIN SOLID
Worcester part no. 87161401170
£3.98
19 Part number 87161402380, AIR VENT 1/8 BSP AIR VENT 1/8 BSP
Worcester part no. 87161402380
£17.04
20 Part number 87161011070, FLUE BLANKING PLATE KIT FLUE BLANKING PLATE KIT
Worcester part no. 87161011070
£8.75
21   GASKET
Worcester part no. 87161407360
£3.71
22 Part number 29150110060, NUT M5 NUT M5
Worcester part no. 29150110060
£2.56
23 Part number 29160110120, WASHER M5 FLAT WASHER M5 FLAT
Worcester part no. 29160110120
£0.75
24 Part number 87161405080, SCREW 1/4 X 5/8 HEX HEAD SET SCREW 1/4 X 5/8 HEX HEAD SET
Worcester part no. 87161405080
£18.67
25   THERMOPLASTIC RUBBER PLUG
Worcester part no. 87161405110
£18.89
26   WASHER 5/16" X 1.2MM THK
Worcester part no. 87161405090
£17.58
27 Part number 87161405100, NUT 1/4" WING CHROME PLATED NUT 1/4" WING CHROME PLATED
Worcester part no. 87161405100
£19.69
28 Part number 87161409020, GASKET BURNER SEAL GASKET BURNER SEAL
Worcester part no. 87161409020
£5.26
29 Part number 87161053030, BURNER B9A ASSEMBLY BURNER B9A ASSEMBLY
Worcester part no. 87161053030

30   BULKHEAD MOUNTING BRACKET
Worcester part no. 87161001240
£20.60
31 Part number 29150110090, NUT M8 FULL HEX M/S ZC PL NUT M8 FULL HEX M/S ZC PL
Worcester part no. 29150110090
£4.08
32 Part number 29160110140, WASHER 6MM ID FLAT Z/P M/S WASHER 6MM ID FLAT Z/P M/S
Worcester part no. 29160110140
£1.99
33 Part number 87161424230, VALVE 1/4 BSP ISO. BULK HEAD VALVE 1/4 BSP ISO. BULK HEAD
Worcester part no. 87161424230
£38.80
34   SCREW M6 X 16MM SKT HD CAP SCR BLACK
Worcester part no. 29101451970
£3.36
35 Part number 29100011910, SCREW M6X10MM BZP SLT P/H M/S SCREW M6X10MM BZP SLT P/H M/S
Worcester part no. 29100011910
£2.00
