WORCESTER
HEATSLAVE 12/14-RSO-GB OIL COM (OCT 2001 ONWARDS) 7716100075 - (Baffles)
Appliance Code: 7716100075

Appliance Diagram

Heatslave 12/14-RSO-GB Oil COM (Oct 2001 Onwards) 7716100075
12/14-B9A Drawing (6720900689)
Baffles
Casing
Electrical
Heat Exchanger
Hydraulics
Spotted a mistake? Please click here

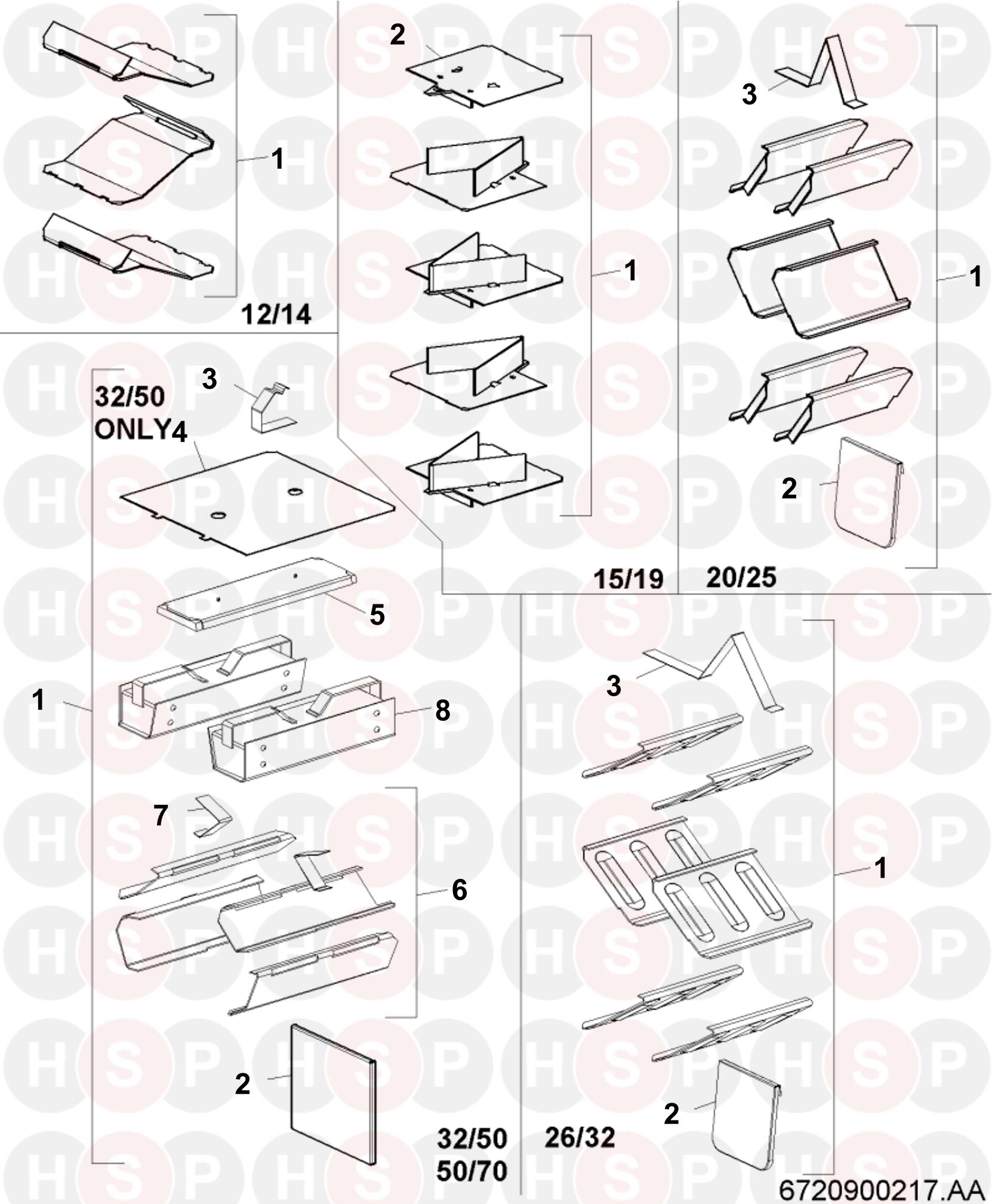

Baffles diagram for Worcester Heatslave 12/14-RSO-GB Oil COM (Oct 2001 Onwards) 7716100075 Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1

Part number 87161213550, BAFFLE SET 12-14 ( 3 PIECE )

BAFFLE SET 12-14 ( 3 PIECE )
Worcester part n^o. 87161213550

£34.47
