REMEHA-COMMERCIAL
QUINTA PRO 45 - (Fan & Gas Valve)
Appliance Code: 41-288-16

Appliance Diagram

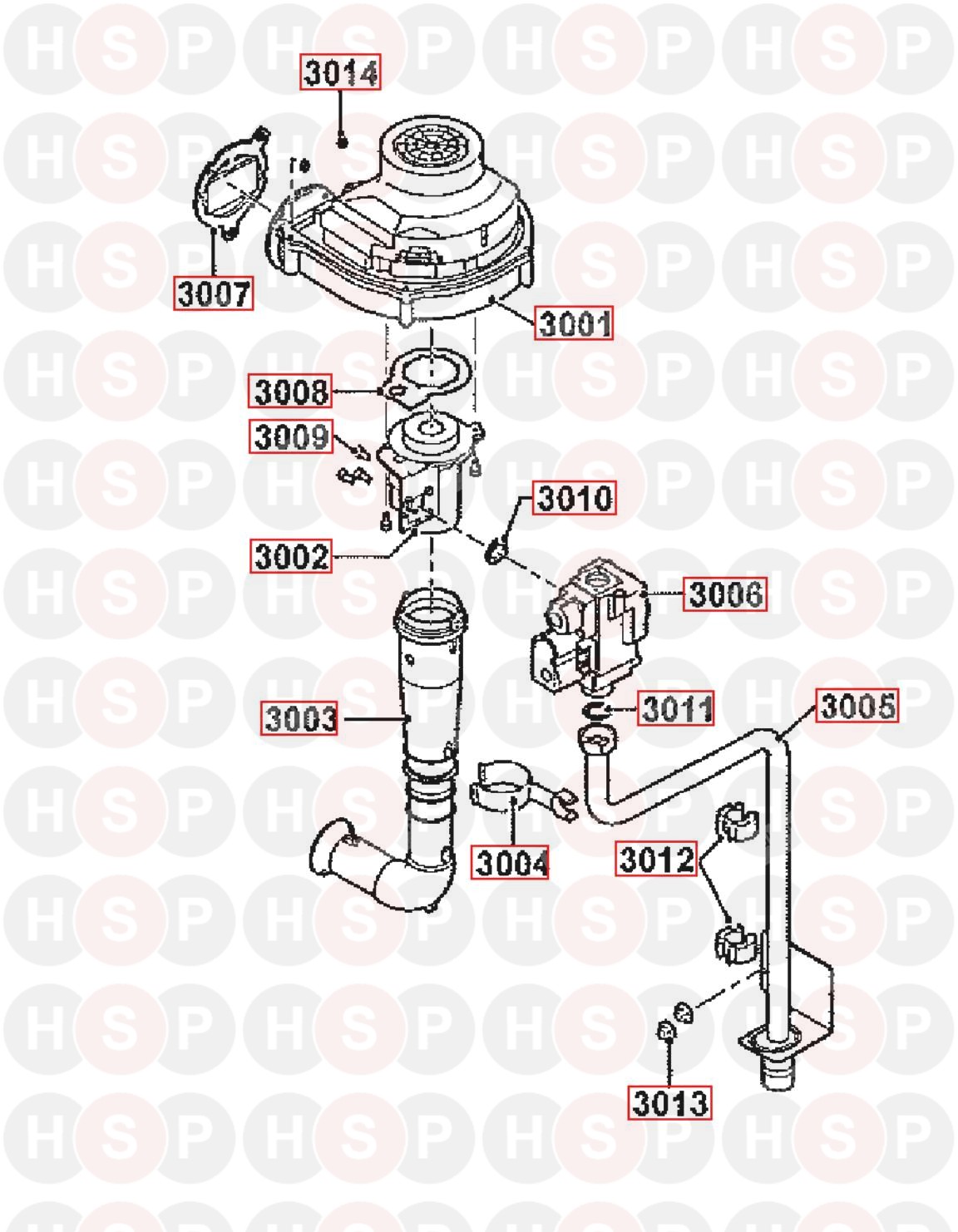

Fan & Gas Valve diagram for Remeha-Commercial Quinta Pro 45Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3001 Part number S59167, NOW USE S101725 Fan for Q45-65 / QP30-45 NOW USE S101725 FAN FOR Q45-65 / QP30-45
Remeha-Broag part no. S59167

3001 Part number S101725, Fan for Q45 and QP30/45 FAN FOR Q45 AND QP30/45
Remeha-Commercial part no. S101725
£407.45
3002 Part number S54765, Venturi Q45 VENTURI Q45
Remeha-Commercial part no. S54765
£79.49
3003   AIR INLET DAMPER
Remeha-Commercial part no. S101543
£19.16
3004   CLAMP AIR INLET SILENCER
Remeha-Commercial part no. S101590
£8.98
3005   GAS SUPPLY PIPE
Remeha-Commercial part no. S101569
£75.23
3006 Part number S101596, Gas block Vk8115V1386 30, 45 & 65 kW 230 Volt (Quinta Pro) GAS BLOCK VK8115V1386 30, 45 & 65 KW 230 VOLT (QUINTA PRO)
Remeha-Commercial part no. S101596
£211.49

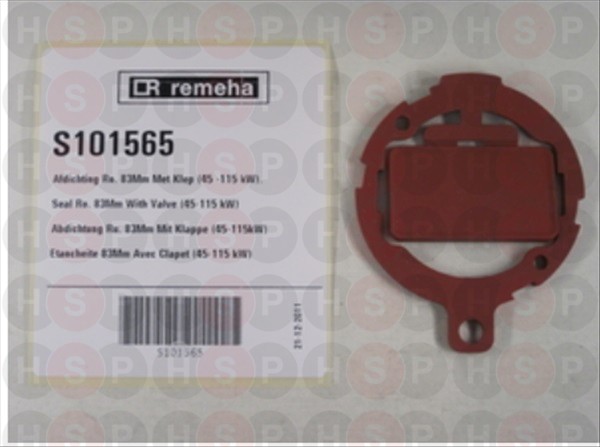

3007 Part number S101565, Seal 83mm complete with non-return valve - Quinta Pro SEAL 83MM COMPLETE WITH NON-RETURN VALVE - QUINTA PRO
Remeha-Commercial part no. S101565
£10.50
3008 Part number S54777, Sealing for Venturi - (pack of 5) SEALING FOR VENTURI - (PACK OF 5)
Remeha-Commercial part no. S54777
£28.39
3009 Part number S48512, Screw M5X10 (10 Pcs) SCREW M5X10 (10 PCS)
Remeha-Commercial part no. S48512
£19.16
3010 Part number S101591, Gasket set 45-65 kW GASKET SET 45-65 KW
Remeha-Commercial part no. S101591
£31.23
3011 Part number S56155, Gasket 23.8 x 17.2 (20pc) GASKET 23.8 X 17.2 (20PC)
Remeha-Commercial part no. S56155
£29.81
3012   WIRE CLAMP (5 PCS)
Remeha-Commercial part no. S101519
£12.86
3013 Part number S54755, FLANGE NUT M6 FLANGE NUT M6
Remeha-Commercial part no. S54755
£25.55
3014 Part number S100055, Nut M5 (Pack of 20) NUT M5 (PACK OF 20)
Remeha-Commercial part no. S100055
£17.74
