Appliance Code: 32-810-66

Appliance Diagram


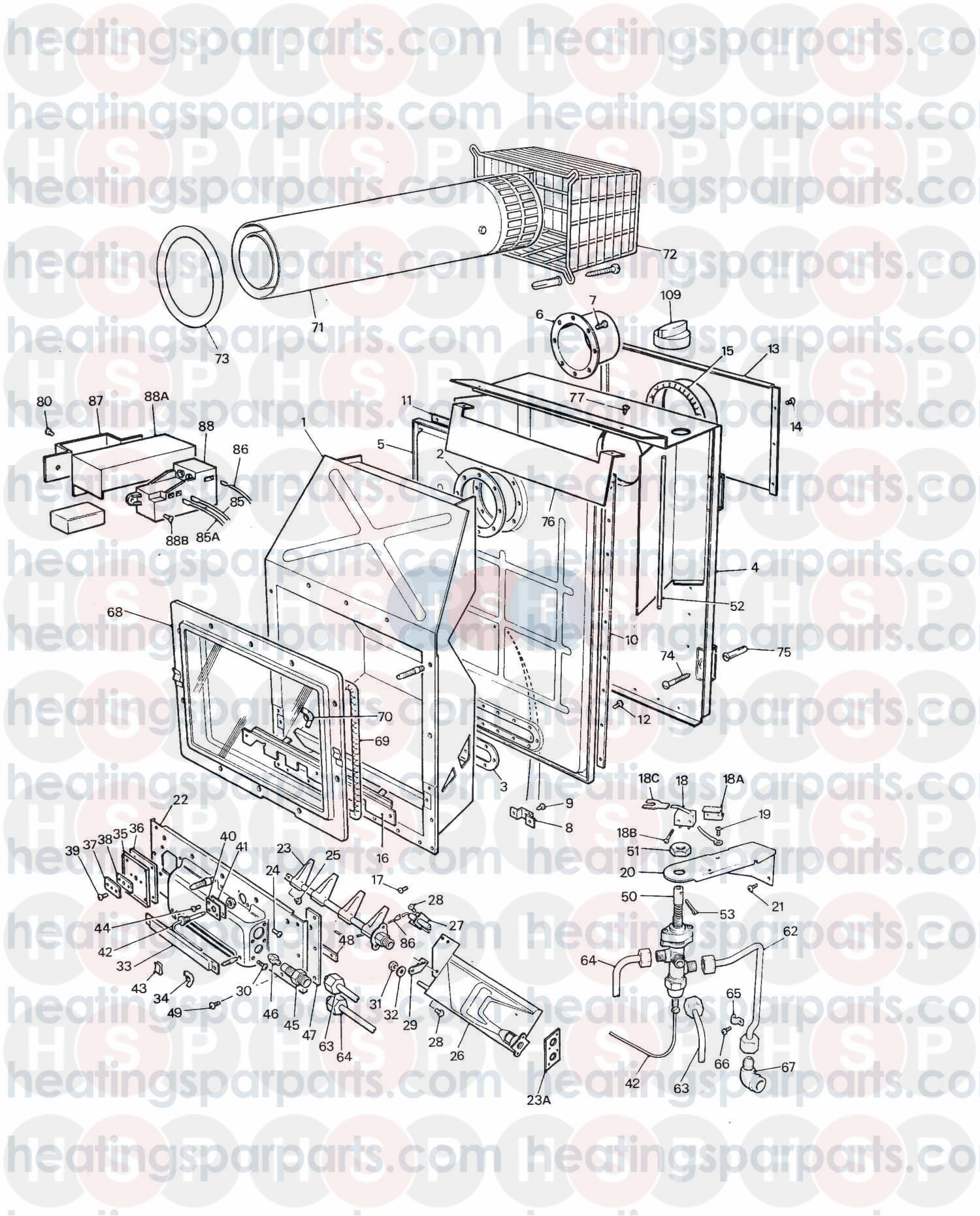

Controls diagram for Valor Gas Fire Flamenco UnigasClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FIREBOX ASSEMBLY
Valor Gas Fire part no. 0549309
2   OBSOLETE (FLUE SPIGOT) GASKET
Valor Gas Fire part no. 0549329
3   OBSOLETE (AIR INLET SPIGOT) GAS
Valor Gas Fire part no. 0549339
4   OBSOLETE BACK PANEL ASS
Valor Gas Fire part no. 0556569
5   OBSOLETE AIR DUCT TRAY
Valor Gas Fire part no. 0549199
6   OBSOLETE FLUE 479SPIGOT
Valor Gas Fire part no. 0549209
8   OBSOLETE SPACER
Valor Gas Fire part no. 541291300
9   8X3/8 SCREW
Valor Gas Fire part no. 0511569
10   OBSOLETE AIR DUCT TRAY SIDES GASKET
Valor Gas Fire part no. 0549179
11   OBSOLETE GASKET AIR DUCT TRAY TOP/BOTTO
Valor Gas Fire part no. 0549189
12   OBSOLETE M4X10 POZI PAN ZP SCR
Valor Gas Fire part no. 0549219
13   OBSOLETE COOLER PLATE
Valor Gas Fire part no. 0549159
14   OBSOLETE SCREW
Valor Gas Fire part no. 0513059
15   OBSOLETE FLUE SPIGOT SEALING RI
Valor Gas Fire part no. 0549169
16   OBSOLETE LOG SUPPORT BRACKET AS
Valor Gas Fire part no. 0549349
17   OBSOLETE M4X8 POZI PAN ZP SCREW
Valor Gas Fire part no. 0549359
18   OBSOLETE SWITCH LOCATION TAG
Valor Gas Fire part no. 0553369
18   OBSOLETE NO.2X1/2 PAN HD POZI SCREW
Valor Gas Fire part no. 0553359
18   OBSOLETE SWITCH SUPPORT BRT
Valor Gas Fire part no. 0553349
18   OBSOLETE MICRO SWITCH
Valor Gas Fire part no. 0553339
20   OBSOLETE TAP FIXING BRACKET
Valor Gas Fire part no. 0556579
20   OBSOLETE TAP FIXING BRKT
Valor Gas Fire part no. 0510579
22   OBSOLETE BNR BOX & FE BNR BRKT
Valor Gas Fire part no. 0549369
23   OBSOLETE F.E. BURNER
Valor Gas Fire part no. 0549379
23   OBSOLETE F.E.BURNER GASKET
Valor Gas Fire part no. 0557129
25   OBSOLETE M3.X 6 SCREW
Valor Gas Fire part no. 0547299
26   OBSOLETE BURNER
Valor Gas Fire part no. 0549389
27   OBSOLETE ELECTRODE
Valor Gas Fire part no. 0549399
29   OBSOLETE BURNER STIFFENING BRK
Valor Gas Fire part no. 0549409
31   OBSOLETE NUT
Valor Gas Fire part no. 0547669
33   OBSOLETE CLEANING ACCESS PLATE
Valor Gas Fire part no. 0549429
34   OBSOLETE M5 BLACK WING NUT
Valor Gas Fire part no. 0550919
35   OBSOLETE ELECTRODE ACCESS COVER
Valor Gas Fire part no. 0549449
36   OBSOLETE ELEC-ACCESS HOLE COVER
Valor Gas Fire part no. 0549459
37   OBSOLETE ELECT/DE LEAD CLAMPING
Valor Gas Fire part no. 0549469
38   OBSOLETE ELEC ACCESS HOLE COVER
Valor Gas Fire part no. 0549479
40   OBSOLETE THERMOCOUPLE BRACKET
Valor Gas Fire part no. 0549489
41   OBSOLETE THERMOCOUPLE BRACKET GASKET
Valor Gas Fire part no. 0549499
43   OBSOLETE EDGE REF:22440-07CLI
Valor Gas Fire part no. 0549519
44   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
45   OBSOLETE MAIN BURNER ADAPTER
Valor Gas Fire part no. 0549529
46   OBSOLETE MAIN BURNER INJECTOR
Valor Gas Fire part no. 0557159
47   OBSOLETE F/BOX SIDES BURNER/BOX GASKET
Valor Gas Fire part no. 0549549
50   OBSOLETE 479 GAS-TAP
Valor Gas Fire part no. 0549579
51   OBSOLETE 1/4" BSP MS ZP LOCKNUT
Valor Gas Fire part no. 0549589
52   OBSOLETE CONTROL SPINDLE
Valor Gas Fire part no. 0557199
53   OBSOLETE SPLIT COTTER PIN 3/32IN DIA. X 1/2IN. - STAINLESS
Valor Gas Fire part no. 80181368
54   OBSOLETE CERAMIC LOG SUPPORT P
Valor Gas Fire part no. 0549609
55   OBSOLETE L/H SIDE CHEEK
Valor Gas Fire part no. 0549619
56   OBSOLETE R/H SIDE CHEEK
Valor Gas Fire part no. 0549629
57   OBSOLETE COAL NO. 1
Valor Gas Fire part no. 0507229
58   OBSOLETE COAL NO. 2
Valor Gas Fire part no. 0507239
59   OBSOLETE COAL NO. 3
Valor Gas Fire part no. 0507249
60   OBSOLETE COAL NO. 4
Valor Gas Fire part no. 0507259
61   OBSOLETE COAL NO.5
Valor Gas Fire part no. 0507269
62   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0557209
63   OBSOLETE TAP TO F.E BURNER PIP
Valor Gas Fire part no. 0557219
64   OBSOLETE TAP TO MAIN BURNER PI
Valor Gas Fire part no. 0557229
65   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 0549719
66   OBSOLETE SCREW
Valor Gas Fire part no. 0533329
67 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
68   OBSOLETE WINDOW FRAME ASSEMBLY
Valor Gas Fire part no. 0549729
69   OBSOLETE WINDOW OUTER & STAPLES SEAL
Valor Gas Fire part no. 0549739
70 Part number 0533249, OBSOLETE WING NUT OBSOLETE WING NUT
Valor Gas Fire part no. 0533249
70 Part number 636102, OBSOLETE NUT WING M5 SN OBSOLETE NUT WING M5 SN
Valor Gas Fire part no. 636102
71   OBSOLETE ASSEMBLY FLUE TERMINAL
Valor Gas Fire part no. 0549749
72   OBSOLETE TERMINAL GUARD
Valor Gas Fire part no. 0516539
73   OBSOLETE SEALING RING
Valor Gas Fire part no. 0549799
74   OBSOLETE 12X2 RD HD SLOT ZP WD/SCREW
Valor Gas Fire part no. 0549759
75   OBSOLETE RAWL-PLUG - NO 12 X 2IN FIBRE
Valor Gas Fire part no. 80518900
76   OBSOLETE FRONT HEATSHIELD DEFLECTOR
Valor Gas Fire part no. 0557109
77   OBSOLETE NO.8X1/2 POZI PAN BLACK SCREW
Valor Gas Fire part no. 0548989
78   OBSOLETE ASSEMBLY
Valor Gas Fire part no. 571276800
80   M4X10 POZI PN HD BLACK SCREW
Valor Gas Fire part no. 0550929
81   OBSOLETE BEZEL INSULATION
Valor Gas Fire part no. 0557249
82   OBSOLETE CONTROLS BEZEL
Valor Gas Fire part no. 0557259
83   OBSOLETE BUTTON
Valor Gas Fire part no. 0516819
84   OBSOLETE BEZEL GROMMET}
Valor Gas Fire part no. 0510599
85   OBSOLETE IGNITION SWITCH/EARTH LEAD
Valor Gas Fire part no. 0553199
85   OBSOLETE IGNITION SWITCH LEAD
Valor Gas Fire part no. 0553209
86   OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0553159
87   OBSOLETE BATTERY UNIT BRACKET
Valor Gas Fire part no. 0553169
88   OBSOLETE M3.5 TAPTITE PAN HD
Valor Gas Fire part no. 0552229
88 Part number 5122420, SPARK GENERATOR SPARK GENERATOR
Valor Gas Fire part no. 5122420
88   NOW USE 5122420 ELECTRONIC IGNITION UNIT
Valor Gas Fire part no. 0554949
88   OBSOLETE GENERATOR COVER
Valor Gas Fire part no. 0510609
90   OBSOLETE FRONT CASE UNIT ASSY
Valor Gas Fire part no. 0507409
91   OBSOLETE M5 STUD
Valor Gas Fire part no. 0557569
92   OBSOLETE LOWER GRILLE & BADGE ASSY
Valor Gas Fire part no. 0507849
93   OBSOLETE UPPER GRILLE
Valor Gas Fire part no. 0505119
95   OBSOLETE DECORATIVE KNOB
Valor Gas Fire part no. 0517679
97   OBSOLETE HORIZONTAL CASE TRIM
Valor Gas Fire part no. 0505179
98   OBSOLETE NO.6X1/4 A/B PN PZ SC
Valor Gas Fire part no. 0557909
99   OBSOLETE NAME BADGE
Valor Gas Fire part no. 81290500
100   OBSOLETE RH SIDE WINDOW TRIM
Valor Gas Fire part no. 0510669
101   OBSOLETE LH SIDE WINDOW TRIM
Valor Gas Fire part no. 0510679
102   OBSOLETE TIE TRIM
Valor Gas Fire part no. 0505149
103   OBSOLETE NO.6X3/8 PAN POZI ZPS
Valor Gas Fire part no. 0514929
104   OBSOLETE TOP WINDOW TRIM
Valor Gas Fire part no. 0510689
105   OBSOLETE BOTTOM WINDOW TRIM
Valor Gas Fire part no. 0510699
107   OBSOLETE KNURLED THUMB NUT
Valor Gas Fire part no. 0514679
108   OBSOLETE .8MM BLACK FIBRE WASHER
Valor Gas Fire part no. 0549419
109   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0549139
110   OBSOLETE INSTALLATION AND SERVICING INSTRUCTIONS
Valor Gas Fire part no. 80181598
111   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 80181698


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
