Appliance Code: 32-811-37

Appliance Diagram


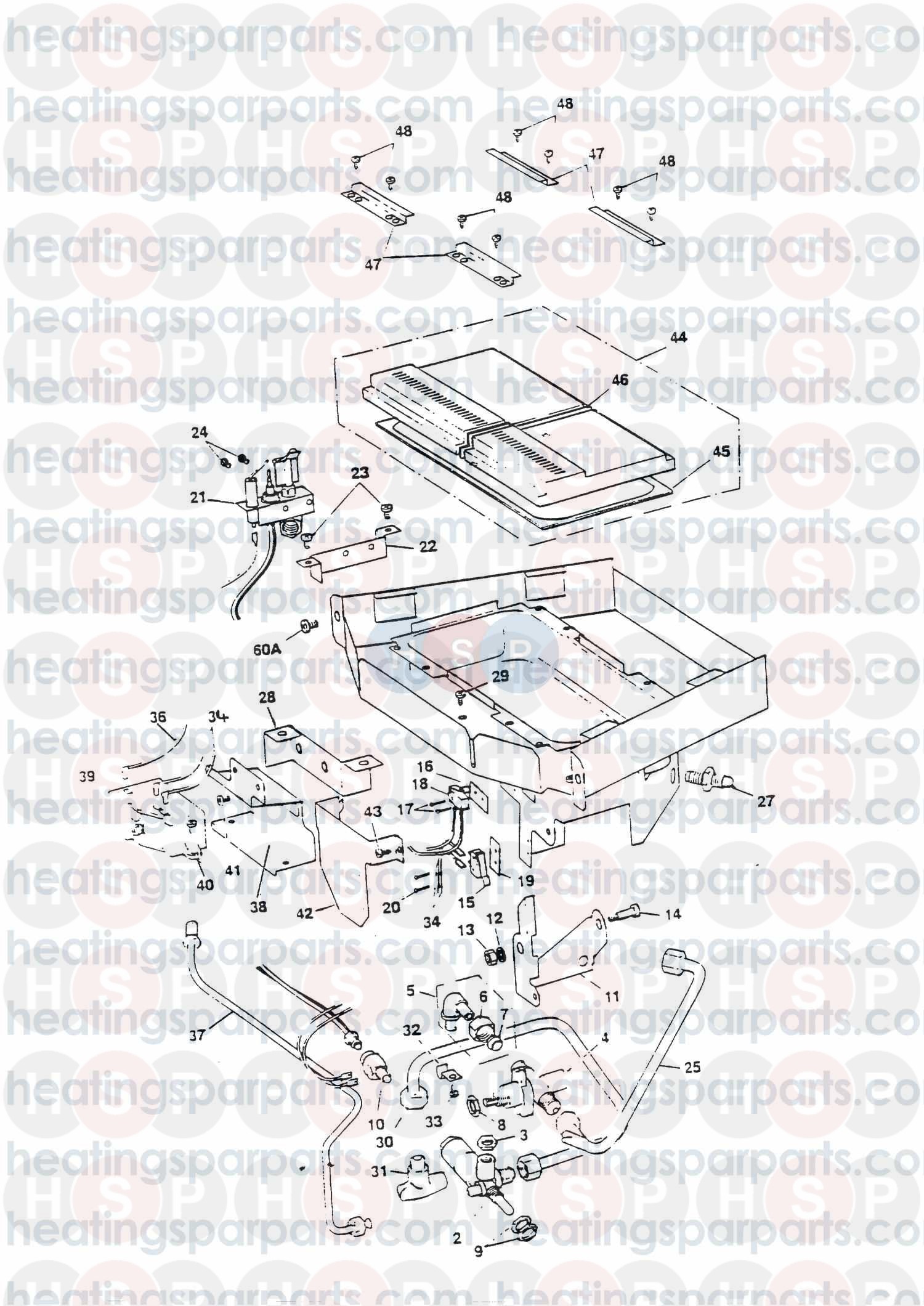

Controls diagram for Valor Gas Fire Model 622 With Visage FrontClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE TEMPLATE
Valor Gas Fire part no. 0541199
0   OBSOLETE INSTALLERS INSTRUCTIONS
Valor Gas Fire part no. 0545169
0   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0545179
1   OBSOLETE MOD BURNER KIT- 622
Valor Gas Fire part no. 0540889
2 Part number 0540899, F.S.D VALVE F.S.D VALVE
Valor Gas Fire part no. 0540899
3   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0528839
4 Part number 0540919, GAS VALVE GAS VALVE
Valor Gas Fire part no. 0540919
5   OBSOLETE ELBOW OLIVE & NUT ASSY
Valor Gas Fire part no. 0540909
6   OBSOLETE 736 OLIVE NUT - COPREC
Valor Gas Fire part no. 0521559
8   LOCK NUT
Valor Gas Fire part no. 0502739
9   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0539689
10 Part number 0522389, OBSOLETE THERMOCOUPLE INTERRUPTER OBSOLETE THERMOCOUPLE INTERRUPTER
Valor Gas Fire part no. 0522389
11   OBSOLETE CONTROL PIVOT BRK ASSY
Valor Gas Fire part no. 0540929
12   WASHER SHAKEPROOF
Valor Gas Fire part no. 0540939
13   OBSOLETE NUT
Valor Gas Fire part no. 0532259
14   OBSOLETE PIVOT PIN
Valor Gas Fire part no. 0540949
15 Part number 0540959, MICROSWITCH MICROSWITCH
Valor Gas Fire part no. 0540959
16 Part number 0554999, Insulation Pad INSULATION PAD
Valor Gas Fire part no. 0554999
17   OBSOLETE NO.2X1/2 PAN HD POZI SCREW
Valor Gas Fire part no. 0553359
18 Part number 0540969, OBSOLETE MICROSWITCH & LEADS ASSY OBSOLETE MICROSWITCH & LEADS ASSY
Valor Gas Fire part no. 0540969
21 Part number 0540979, PILOT/ODS ASSY PILOT/ODS ASSY
Valor Gas Fire part no. 0540979
22   OBSOLETE PILOT FIXING BRKT
Valor Gas Fire part no. 0540989
23   OBSOLETE NO8 X 3/8 PAN HD POZI SCREWS
Valor Gas Fire part no. 0536699
24   SCREW
Valor Gas Fire part no. 0513359
25   OBSOLETE PIPE ASSY : VALVE-INJE
Valor Gas Fire part no. 0540999
27   OBSOLETE INJECTOR
Valor Gas Fire part no. 0518759
28   OBSOLETE CARRIER BRKT ASSY
Valor Gas Fire part no. 0541009
30   OBSOLETE PIPE ASSY : INLET
Valor Gas Fire part no. 0541019
31 Part number 0541029, NOW USE SP020A050 INLET ELBOW ASSY NOW USE SP020A050 INLET ELBOW ASSY
Valor Gas Fire part no. 0541029
31 Part number 0581639, NOW USE SP020A050 ACCESSORY PACK ELBOW NOW USE SP020A050 ACCESSORY PACK ELBOW
Valor Gas Fire part no. 0581639
31   INLET ELBOW
Valor Gas Fire part no. SP020A050
32   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 0549719
34   OBSOLETE LEAD ASSY
Valor Gas Fire part no. 0541049
36   OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0541059
37   OBSOLETE PIPE ASSY : VALVE - PI
Valor Gas Fire part no. 0541069
38   OBSOLETE IGNITION UNIT CARRIER
Valor Gas Fire part no. 0541079
39   NOW USE 5122420 ELECTRONIC IGNITION UNIT
Valor Gas Fire part no. 0554949
39 Part number 5122420, SPARK GENERATOR SPARK GENERATOR
Valor Gas Fire part no. 5122420
40   OBSOLETE M4X8 POZI PAN T/T NP
Valor Gas Fire part no. 0551119
41   M4X10 POZI PN HD BLACK SCREW
Valor Gas Fire part no. 0550929
42   OBSOLETE MICROSWITCH COVER - PRI
Valor Gas Fire part no. 0541099
43   OBSOLETE NO8X3/8 SELF TAP SCREW
Valor Gas Fire part no. 0536809
44   OBSOLETE PLAQUE & GASKET SET
Valor Gas Fire part no. 0541119
45   OBSOLETE GASKET
Valor Gas Fire part no. 0541419
46   OBSOLETE GASKET (CENTRE)
Valor Gas Fire part no. 0541429
47   OBSOLETE CERAMIC CLAMP
Valor Gas Fire part no. 0522639
48   OBSOLETE SCREW
Valor Gas Fire part no. 0509829
49   OBSOLETE CONVECTION BOX UNIT A
Valor Gas Fire part no. 0544999
50   OBSOLETE REAR COAL SUPPORT
Valor Gas Fire part no. 0541129
52   RESTRICTOR PLATE
Valor Gas Fire part no. 0541139
53 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
54 Part number 0541249, MOD. WALLS KIT - 622 MOD. WALLS KIT - 622
Valor Gas Fire part no. 0541249
54   OBSOLETE OUTLET BAFFLE
Valor Gas Fire part no. 0545009
54 Part number 0545579, NOW USE 0541249 MOD PORT COVER KIT NOW USE 0541249 MOD PORT COVER KIT
Valor Gas Fire part no. 0545579
56   OBSOLETE TOP & SIDES SEAL
Valor Gas Fire part no. 0518789
57   OBSOLETE (FASTENER)1/2 POINTED BINDER
Valor Gas Fire part no. 0542879
58   OBSOLETE SEAL
Valor Gas Fire part no. 0541449
59   OBSOLETE CLAMP PLATE
Valor Gas Fire part no. 0541439
61   OBSOLETE OLIVE NUT
Valor Gas Fire part no. 0523389
62   OBSOLETE OLIVE
Valor Gas Fire part no. 0519779
63 Part number 0541159, NOW USE 5512003 SEAL U BOTTOM/SIDES NOW USE 5512003 SEAL U BOTTOM/SIDES
Valor Gas Fire part no. 0541159
63 Part number 5512003, INSET SEAL KIT INSET SEAL KIT
Valor Gas Fire part no. 5512003
64 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
64 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739
65 Part number 0542749, NOW USE 5109975 CABLE UNIT ASSY NOW USE 5109975 CABLE UNIT ASSY
Valor Gas Fire part no. 0542749
66   NOW USE 5109975 CABLE ADJUSTER BOLT
Valor Gas Fire part no. 0542759
67   OBSOLETE M4X12MM TH/SCREW
Valor Gas Fire part no. 0542769
68   OBSOLETE 12G X 55MM SCREW-EYE
Valor Gas Fire part no. 0542779
69 Part number 0542799, NOW USE 5109975 TENSION WIRE NOW USE 5109975 TENSION WIRE
Valor Gas Fire part no. 0542799
70   OBSOLETE WOOD SCREW
Valor Gas Fire part no. 0508409
71   OBSOLETE NO.12X1.5 FIBRE RAWLPLUG
Valor Gas Fire part no. 0542789
72 Part number 0553389, 9 VOLT PP35 BATTERY 9 VOLT PP35 BATTERY
Valor Gas Fire part no. 0553389
73 Part number 0541169, NOW USE 0525949 SMOKE HOLDER NOW USE 0525949 SMOKE HOLDER
Valor Gas Fire part no. 0541169
73 Part number 0525949, SMOKE MATCH HOLDER SMOKE MATCH HOLDER
Valor Gas Fire part no. 0525949
74 Part number 0541179, OBSOLETE SHOULDER SCREW OBSOLETE SHOULDER SCREW
Valor Gas Fire part no. 0541179
76 Part number 0541229, NOW USE 0574649 SET + 0574679* NOW USE 0574649 SET + 0574679*
Valor Gas Fire part no. 0541229
76 Part number 0574649, CERAMICS SET CERAMICS SET
Valor Gas Fire part no. 0574649
77   OBSOLETE
Valor Gas Fire part no. 0541239
79 Part number 0541259, OBSOLETE BACK BRICK OBSOLETE BACK BRICK
Valor Gas Fire part no. 0541259
80 Part number 0541269, OBSOLETE COAL BASE OBSOLETE COAL BASE
Valor Gas Fire part no. 0541269
81 Part number 0541279, OBSOLETE FRONT COAL OBSOLETE FRONT COAL
Valor Gas Fire part no. 0541279
82 Part number 0541289, COAL SET COAL SET
Valor Gas Fire part no. 0541289
83   OBSOLETE FRONT UNIT ASSY
Valor Gas Fire part no. 0545019
84   OBSOLETE HOOD
Valor Gas Fire part no. 0545029
85   OBSOLETE SCREW NO.8X1/4 FLANGE ZP POZI
Valor Gas Fire part no. 0545039
86 Part number 0545929, OBSOLETE SLIDER & KNOB KIT (SPARE) OBSOLETE SLIDER & KNOB KIT (SPARE)
Valor Gas Fire part no. 0545929
86   OBSOLETE FIRESLIDE SLIDER CONTROL UNIT
Valor Gas Fire part no. 0545049
87   OBSOLETE SCREW M4X8 CSKHD ZP POZI
Valor Gas Fire part no. 0545059
88   OBSOLETE SLIDE CONTROL BUTTON
Valor Gas Fire part no. 0545069
89   OBSOLETE CONTROL KNOB FIXING SCREW
Valor Gas Fire part no. 0545939
90   OBSOLETE BACKING PLATE
Valor Gas Fire part no. 0545089
92   OBSOLETE BRKT
Valor Gas Fire part no. 0545099
94   OBSOLETE C MOUNTING BRACKET ASSY
Valor Gas Fire part no. 0545109
96   OBSOLETE FITMENT & CASTINGS PACK
Valor Gas Fire part no. 0545119
97   OBSOLETE HEARTH CASTING ASSY
Valor Gas Fire part no. 0545129
98   OBSOLETE SCREEN
Valor Gas Fire part no. 0545139
99   OBSOLETE SCREW M4 SELF CUTTING
Valor Gas Fire part no. 0541319
100   OBSOLETE SCREW M4X15 PAN POZI ZP BLACK
Valor Gas Fire part no. 0545189
101   OBSOLETE ASH PAN COVER ASSY
Valor Gas Fire part no. 0545149
102   KNOB BRASS
Valor Gas Fire part no. 0545159
103   SCREW M5X10 PAN.POZ.BLACK
Valor Gas Fire part no. 633988
103 Part number 0502649, NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK
Valor Gas Fire part no. 0502649
104   GROMMET
Valor Gas Fire part no. 0508999


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
